Most people buy the first microscope they find, set it on the bench, and spend the next month squinting through an eyepiece that was never designed for the job. The best stereo microscopes for soldering share a short list of traits, and almost all of them come down to three things: enough working distance to get an iron and a hot air pen under the objective, continuous optical zoom instead of a headline magnification number, and light that does not turn a shiny solder joint into a mirror.
We spent weeks working through the current generation of binocular and trinocular stereo heads at a hobby bench level, comparing optical clarity, focal stability, how the illumination behaves on copper and on a matte solder mask, and how each stand handles a board being moved around underneath it. Nine models made the cut. They span a very wide range of capabilities, from a low-cost general-purpose scope to a parfocal trinocular head on a double-arm boom.
Our top pick is the AmScope SE400 Series boom-arm scope, which earned the deepest review history of any model here and the most consistent reports of good results on real circuit boards. If you want continuous zoom instead, the DZQ ZQ-1 and the AmScope SM-4TZ-144A are the two most interesting buys in this group, and the reasons they beat the rest are explained below.
Table of Contents
Top 3 Stereo Microscopes for Soldering (October 2026)
AmScope SE400 Boom-Arm…
- 9 inch working distance
- Interchangeable 10x and 20x eyepieces
- Adjustable gooseneck LED
- 5 year warranty
AmScope SM-4TZ-144A Trinocu…
- 0.7x-4.5x continuous zoom
- Four-zone 144-bulb ring light
- Double-arm boom stand
- 0.5x and 2.0x Barlow lenses
DZQ ZQ-1 Multi-Directional…
- 7X-45X continuous zoom
- 95-300mm working distance
- 60-LED ring with dimmer
- Spring-mounted bracket
All 9 Stereo Microscopes at a Glance in 2026
| Product | Specs | Action |
|---|---|---|
| AmScope SE400 Boom-Arm Stereo Microscope |
|
Check Latest Price |
 AmScope SE306R-P-LED Cordless Stereo Microscope |
|
Check Latest Price |
 Aomekie 20X-50X Stereo Microscope |
|
Check Latest Price |
 SWIFT S41-20 Boom-Arm Stereo Microscope |
|
Check Latest Price |
| AmScope SM-4TZ-144A Trinocular Zoom |
|
Check Latest Price |
| DZQ ZQ-1 Multi-Directional Microscope |
|
Check Latest Price |
 SWIFT S7 Trinocular Stereo Zoom |
|
Check Latest Price |
 Vision Scientific VS-5FZ-IFR07 Trinocular |
|
Check Latest Price |
 ZTEEERS Trinocular Stereo Zoom |
|
Check Latest Price |

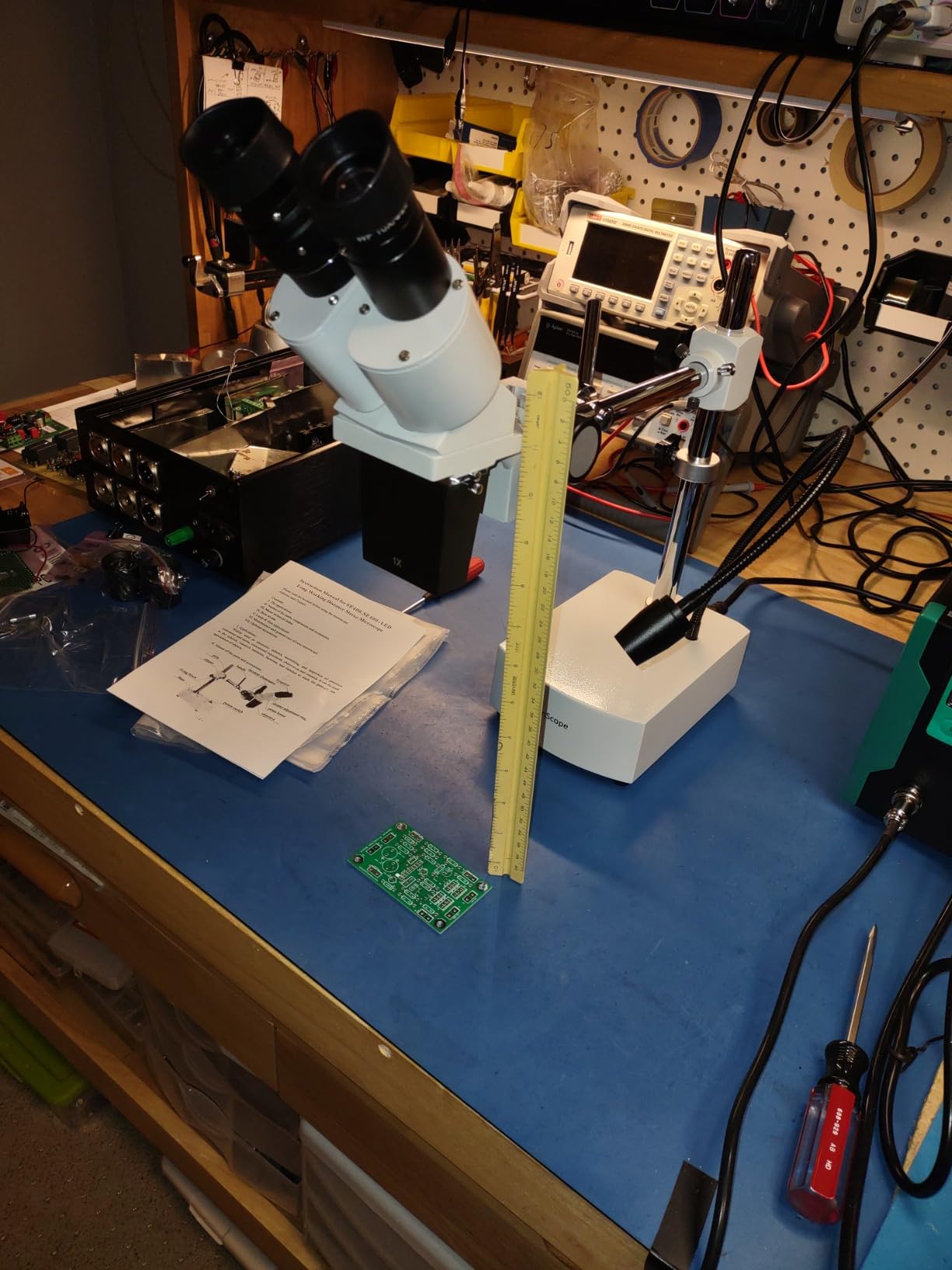

1. AmScope SE400 Series Boom-Arm Stereo Microscope – Long Working Distance and Swappable Eyepieces
AmScope SE400 Series Compact Fixed-Lens Boom-Arm Stereo Microscope 10X-20X Magnification with Gooseneck LED Light
9 inch working distance
10x and 20x eyepieces
1x objective
Gooseneck LED
5 year warranty
Pros
- 9 inch working distance keeps boards centred with both hands free
- Interchangeable 10x and 20x widefield eyepieces
- Gooseneck LED can be aimed to cut shadows on tall joints
- Boom arm slides on X and Y axes
- Metal construction with 5 year warranty
Cons
- Fixed magnification pairs rather than continuous zoom
- Only one gooseneck light source
- Compact chassis has less reach than a double-arm stand
This is the model we keep coming back to for board-level work. The 1x objective paired with the included 10x eyepieces gives a wide, upright view where a whole PCB fits in the field, which is exactly what you want while you are deciding where to start. The listed vertical working distance is 9 inches, and in practice that means an iron, a pair of tweezers and a spool of solder all fit underneath the head without you tilting the board up toward the lens.
The design decision that shapes daily use is the pair of interchangeable widefield eyepieces. Owners consistently use the 10x set for layout and navigation, then unscrew the 20x set for joint inspection, which is a reasonable workflow for anyone working on 0402 parts. One buyer on r/PCB described this scope as more than sufficient for soldering 0402 SMD parts, and that matches what the rest of the review base says.
Construction is metal rather than plastic, and the microscope carries a 5 year manufacturer warranty, which is longer than most of what is on the market. The head sits at a fixed 30 degree vertical inclination with adjustable interpupillary distance, and that shallow angle is comfortable over a long session when you are not constantly dropping your chin to look through the eyepieces.
The boom arm is 12 inches and moves on both the X and Y axes, so you can slide the head over a different section of the bench without unstacking anything. The 17 by 16 by 8 inch footprint is compact enough for a normal desk, unlike several of the heavy double-arm models further down this list that need a dedicated bench.
Who this microscope suits
It suits the hobbyist or small repair shop that works on boards of a manageable size and wants a stable, long-lived instrument without chasing the most advanced optical specification on the market. Users doing through-hole work, connector soldering, and moderate SMD rework on 0402 and 0603 parts get the most out of it.
It is also the safest first serious purchase in this list. The 589 ratings behind this model give you a far clearer picture of long-term ownership behaviour than any newer scope here, and a 5 year warranty means a problem in the first few years is a straightforward conversation with the manufacturer.
Where it falls short
There is no continuous zoom. Changing magnification means physically swapping eyepieces, which interrupts a repair flow every time you alternate between overview and detail work. If your day is a mix of both and you want a dial instead of a screwdriver, look at the DZQ ZQ-1 or the AmScope SM-4TZ-144A.
The single gooseneck light is also the weakest point. Aiming it well solves most shadow problems, but a deep cavity or a tall component on a dense board will still darken one side of the joint. A second light source solves this properly, and that is the main reason the SWIFT S41-20 exists.

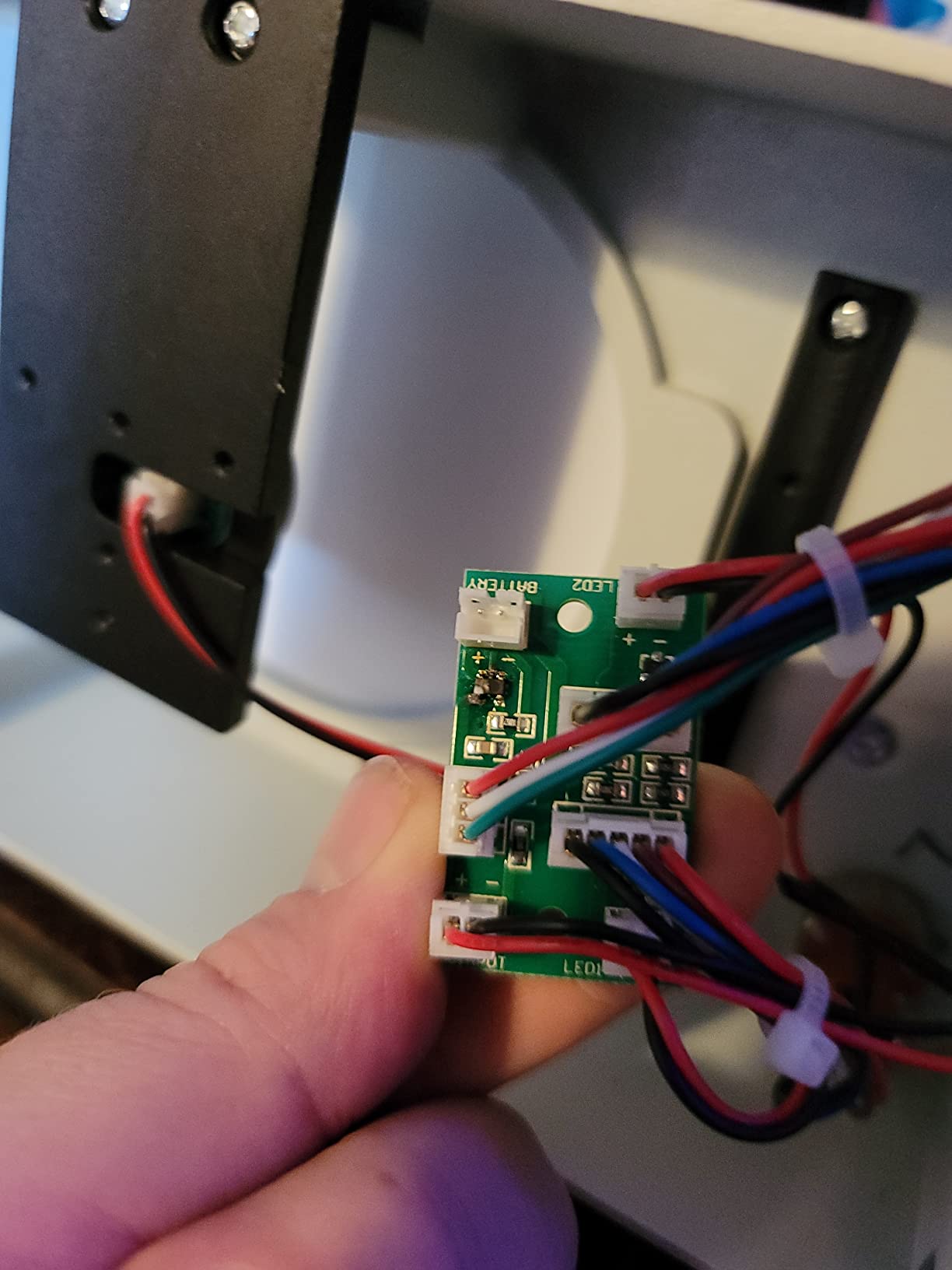

2. AmScope SE306R-P-LED Cordless Stereo Microscope – Battery Power and Two-Sided Illumination
AmScope SE306R-P-LED Cordless LED Stereo Microscope, 20x-40x
20x and 40x magnification
Achromatic objective
Incident and transmitted LED
3.3 pounds
5 year warranty
Pros
- Cordless battery power frees the bench from a cable
- Dual incident and transmitted illumination
- Forward widefield binocular head is comfortable
- All-metal pillar stand and frame
- Optical glass lenses with 5 year warranty
Cons
- Fixed 20x and 40x steps with no low-power overview
- Pillar stand has no boom arm
- No camera port for documentation
Two things set this apart from almost every other entry at this level, and the first is that it runs on a battery. That sounds minor until you have tried to work a repair on a bench where the nearest socket is behind a stack of equipment. Without a power lead trailing across the mat, you can pick the whole microscope up, carry it to the board you are working on, and put it back down.
The second is the illumination. This scope has an LED incident light above and a transmitted light in the base, which means you can light a board from above for normal work and switch to backlighting when you want to see through a component, trace a hairline crack in a solder mask, or look at a semi-transparent part. Having both options on one instrument is unusual at this level.
Optically it is more serious than the price and the format suggest. The objective is listed as achromatic and the eyepieces are widefield optical glass, with a 45 degree real angle of view. The frame is all metal, weighing 3.3 pounds, which feels like a step up from the plastic classroom scopes people often start with.
Magnification runs at 20x and 40x as fixed steps. That is a useful pair of numbers for inspecting finished joints and for detail work on small parts, and the higher setting is genuinely sharp. It is the absence of a lower step that owners mention most often as a limitation.
Who this microscope suits
It suits anyone who works across multiple benches, or who moves between a desk and a workbench, and who values being able to illuminate a workpiece from two directions. For inspecting a solder joint on a green or black solder mask where contrast matters, the top light with the base light off is the sharper option.
It is also a good fit for teaching or demonstration, where you want to hand the scope to a student without asking them to unplug anything. The forward widefield binocular head is upright and comfortable, so it does not force you into an awkward twisted posture.
Where it falls short
There is no low-power setting. If a whole board is too large to orient yourself at 20x, many users add lower-power widefield eyepieces as a separate purchase, which starts to close the gap to a dedicated zoom scope. Reviewers on this model consistently ask for an overview setting.
The pillar stand has no boom arm, so the head cannot be swung out of the way to get direct hand access to a workpiece, and there is no third eyepiece port for recording inspection images. If documentation or hands-on work around a tall assembly matters to you, this is the wrong format.
3. Aomekie 20X-50X Stereo Microscope – The Lowest-Cost Way to Start Inspecting Joints
Aomekie® Microscope 20X 50X with 10Pcs Slides Insect Specimen Stereo Microscope with WF eyepieces LED Light Source Portable Stereoscope 12Pcs Mineral specimens
20x and 50x magnification
65mm-102mm working range
872 g weight
Two-year warranty
Specimen set included
Pros
- Lowest entry point in the group for a first bench
- Ten slides plus insect and mineral specimens included
- 65mm-102mm working range suits a small workpiece
- Battery powered LED with no cable to snag
- Two-year manufacturer warranty
Cons
- Narrow 12 degree field of view and light build
- Accessory set targets school work rather than electronics
- Fixed 20x and 50x steps with no low overview
- Two AA batteries are not included
This is the entry point. If you solder occasionally, you mostly work with through-hole parts, and you want to know what a decent joint looks like before spending real money, this scope does that job for very little. It is also the only model here that arrives with a full set of slides and specimens, which makes it useful for anyone with children or students who want to look at something other than a circuit board.
The working range is adjustable from 65mm to 102mm, which is far more useful around a small workpiece than the very short distance a basic school stereoscope offers. Eyepieces are WF10X and WF25X with a 2x objective, giving 20x and 50x. The interpupillary distance adjusts from 55mm to 75mm and the focus knob rotates.
Buyers regularly report using it to inspect small parts, integrated circuits and jewellery, and the general verdict is that it is good value for the money. The overall 4.2 average reflects a cluster of critical reviews concentrated on two things: the narrow 12 degree field of view, and the light build.
Who this microscope suits
It suits a beginner who wants to learn joint inspection, a student, and a hobbyist who occasionally needs to confirm that a pin header is fully seated. At 20x you can see bridging between adjacent pads on a 0603 land pattern, and at 50x you can confirm a shiny concave fillet on a through-hole joint.
It also works as a second opinion instrument on a bench that already has a better scope, particularly for quick checks away from the main work area. Battery power and a weight of 872 g make it genuinely portable.
Where it falls short
Optical quality is the limit. The 12 degree field of view is tight, and light plastic and metal construction feels a step below every other model in this group. Two reviewers describe colour fringing and softness that the metal boom-stand scopes do not produce, which matters when you are judging joint quality by sheen.
There is no bench stand for a PCB, no ring light, and no way to attach a camera. The included accessories are aimed at classroom use. If you expect to be doing fine-pitch work or phone-level micro-soldering, saving a little more at the start will save frustration later.

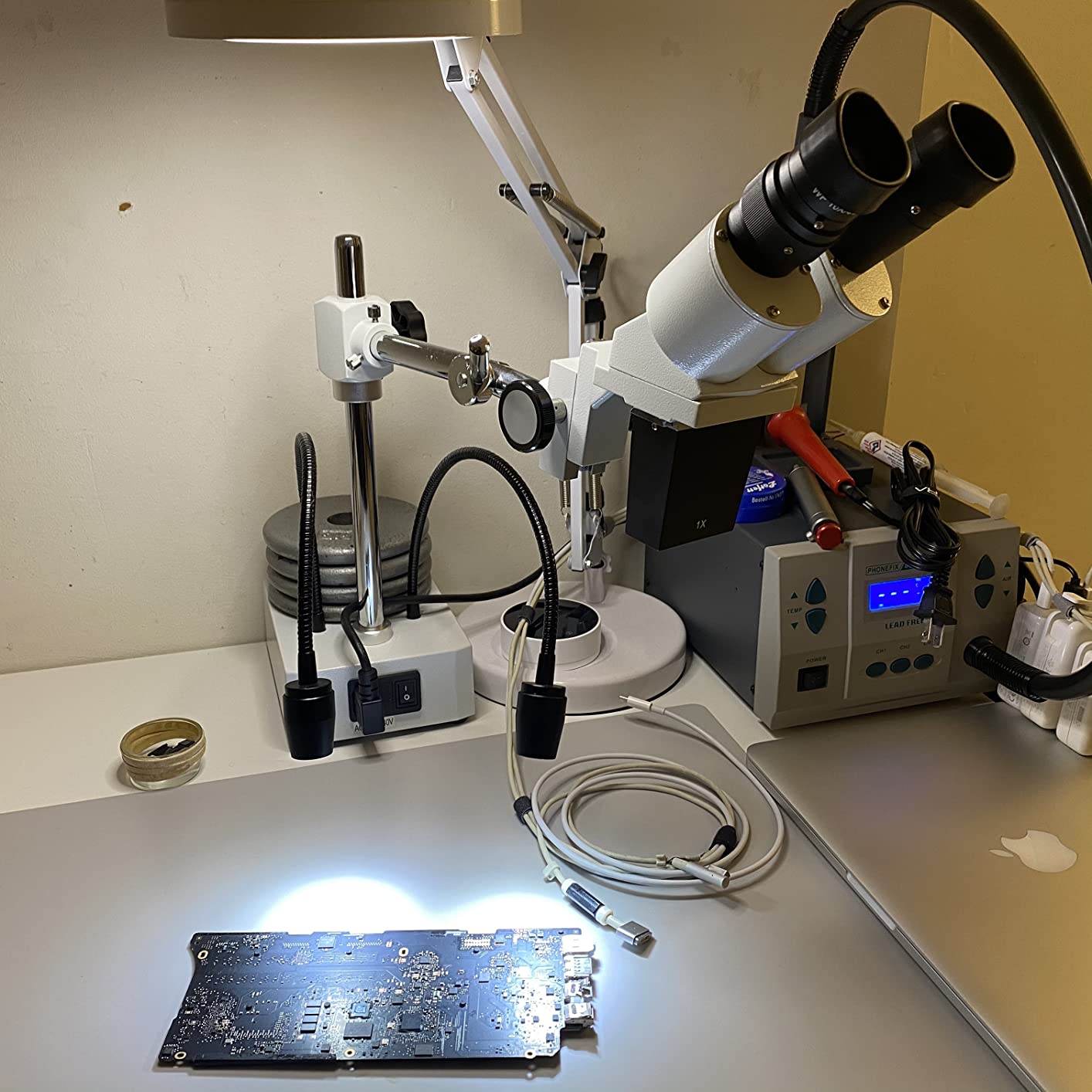

4. SWIFT S41-20 Boom-Arm Stereo Microscope – Two Aimable Lights on a Heavy Base
Swift S41-20 Professional Dissecting Binocular Stereo Microscope, WF10x WF20x Eyepieces, 10X 20X Magnification, 1X Objective, LED Lighting, Boom-Arm Stand
10x and 20x eyepieces
12 inch boom arm
Two gooseneck LED lights
5.5 kg cast base
45 degree head
Pros
- Two flexible gooseneck LEDs light a board from two angles
- Roughly nine inch working distance leaves both hands free
- Heavy cast base and metal build
- Interchangeable WF10x and WF20x eyepieces
- Boom swivels clear for direct hand access
Cons
- 10x is still too strong for many soldering tasks
- Narrow field of view at 10x
- No intensity control on the illumination
- Only one rubber eye cup supplied

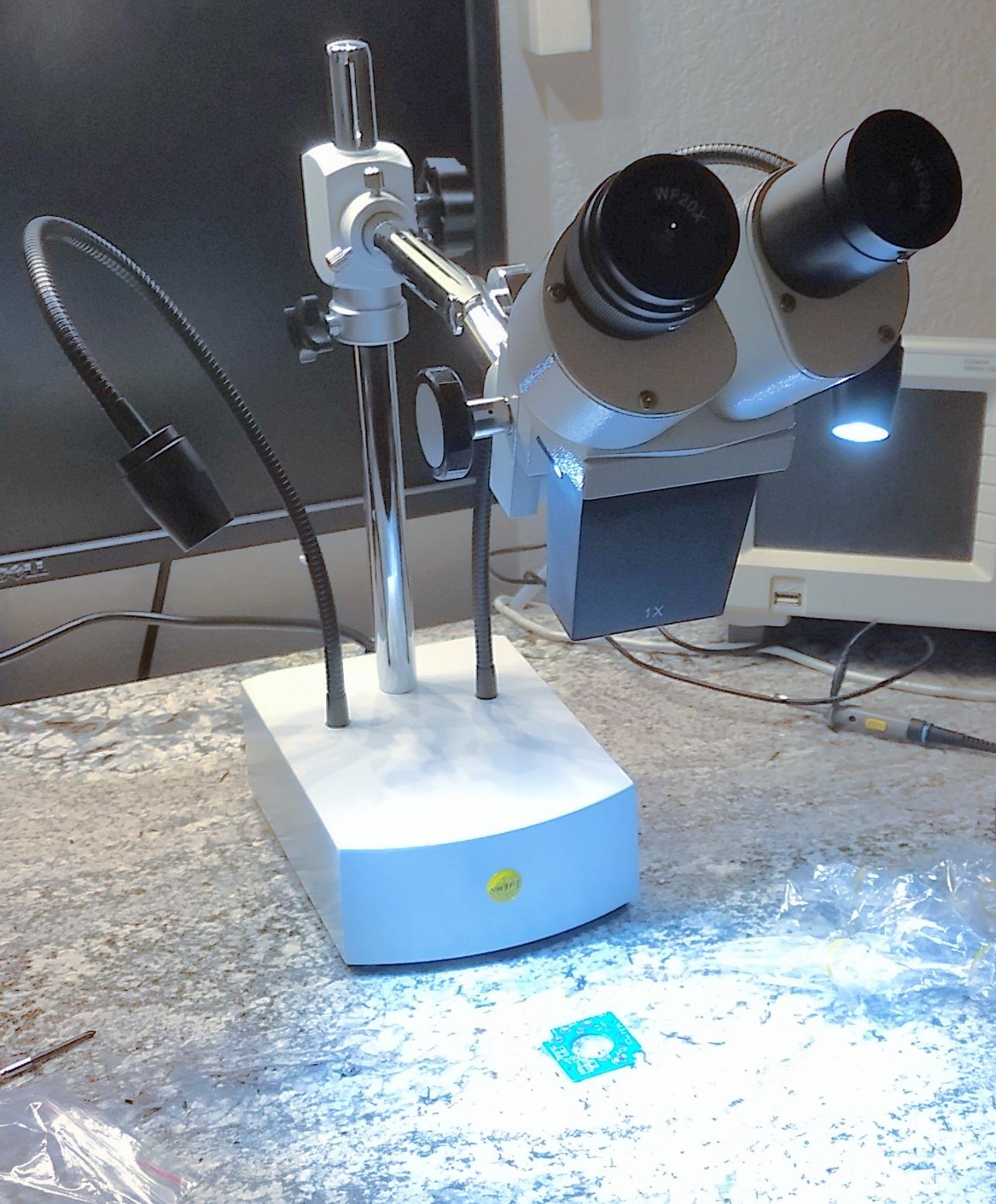

The defining feature here is the pair of flexible gooseneck LED lights mounted on a metal base. Two light sources let you fill in shadows from two directions at once, which is the single most effective fix for the deep-cavity problem that a single overhead lamp cannot solve. Several owners doing board-level rework call the shadow-free light the standout feature of the whole package.
This scope also has the most consistently hands-on user feedback in the group. Multiple buyers report soldering small PCB joints and repairing MacBook logic boards under these lights, and one describes the build quality as better than the equivalent AmScope model. The cast base is heavy enough to mostly resist tipping, though a reviewer notes it can still shift if the arm is extended high.
Magnification comes from interchangeable WF10X and WF20X eyepieces on a 1x achromatic objective, set on a 45 degree binocular head with adjustable interpupillary distance. The 12 inch swinging boom arm has wide horizontal and vertical range, so the head clears a laptop chassis or a large board without a fight.
It is also compatible with digital USB cameras sold separately, which matters more than it sounds. Attaching a camera through an adapter is a common route to recording repair steps on a binocular scope that has no dedicated third eyepiece.
Who this microscope suits
It suits rework work where component density means tall parts throw shadows across the joint you are trying to see. Repairing dense mobile boards, working inside a laptop chassis, and inspecting connectors on crowded assemblies are exactly the situations two aimable lights solve.
It is also a strong choice for anyone who wants a genuinely binocular instrument with a comfortable angled head and no digital screen between their eyes and the workpiece. The depth perception from two optical paths is the reason most people who move to a stereo scope never go back to a screen-based unit.
Where it falls short
The magnification ceiling is low. At 10x the field of view is already narrow, and that is too strong for a lot of soldering work, so several owners buy separate 5x widefield eyepieces. That is a real cost that is easy to miss when comparing against a continuous zoom scope.
There is no brightness control on the LEDs, which is a genuine problem on highly reflective boards where a fixed setting produces glare. The eyepieces are screw-retained and need a screwdriver to change, and only one rubber eye cup is included, so it has to be transferred whenever you swap eyepieces.

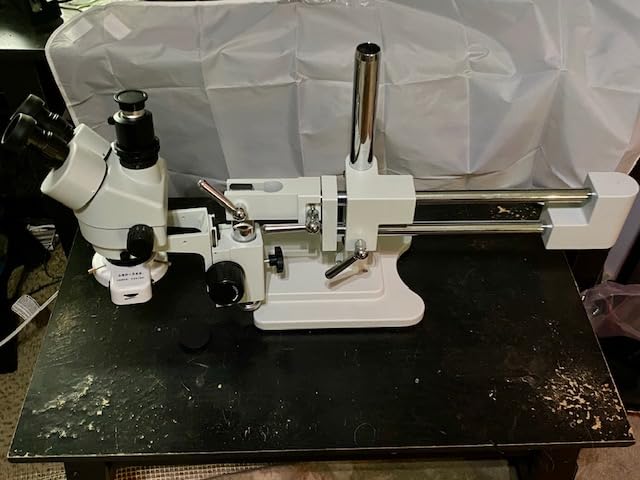

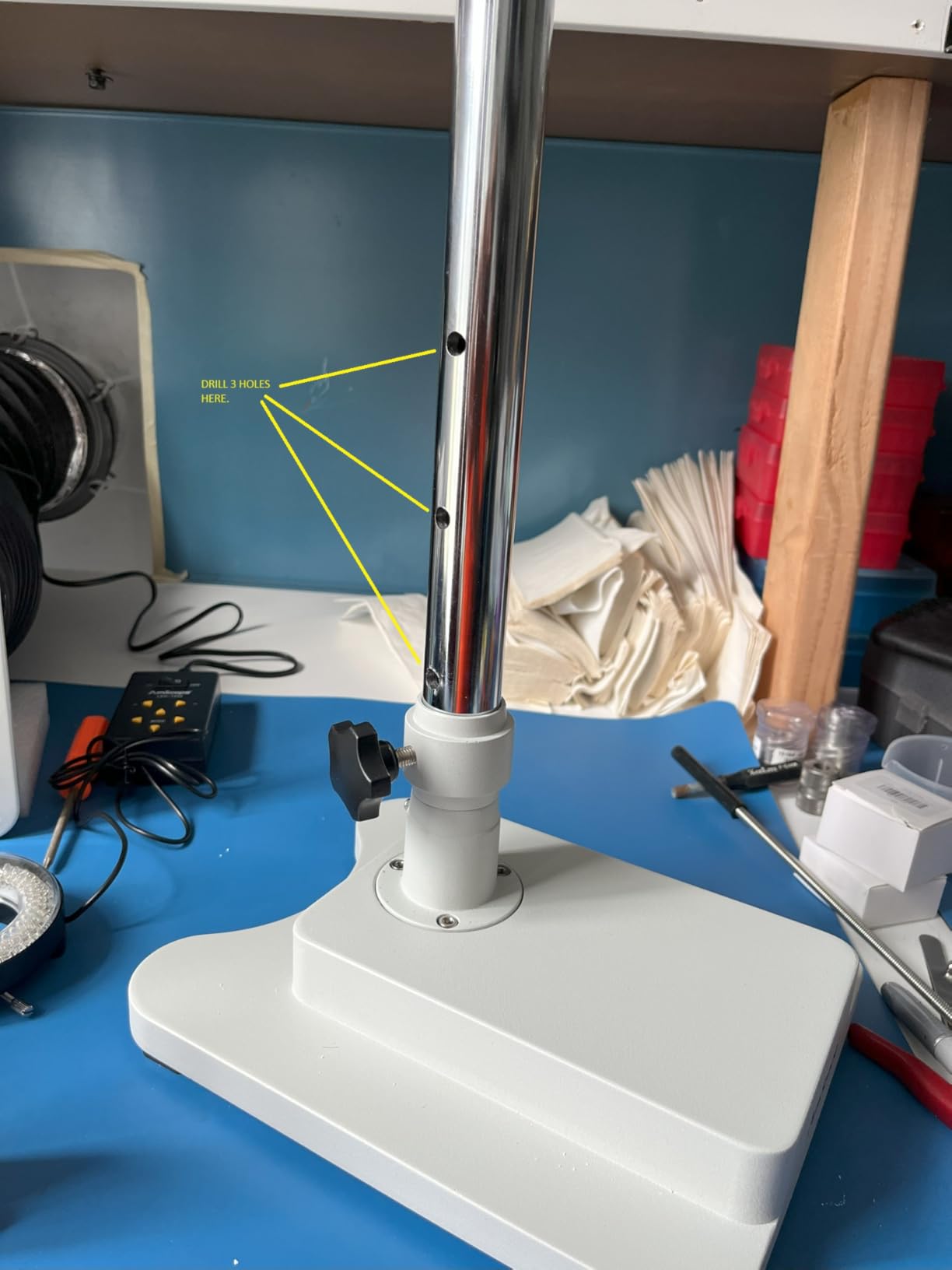

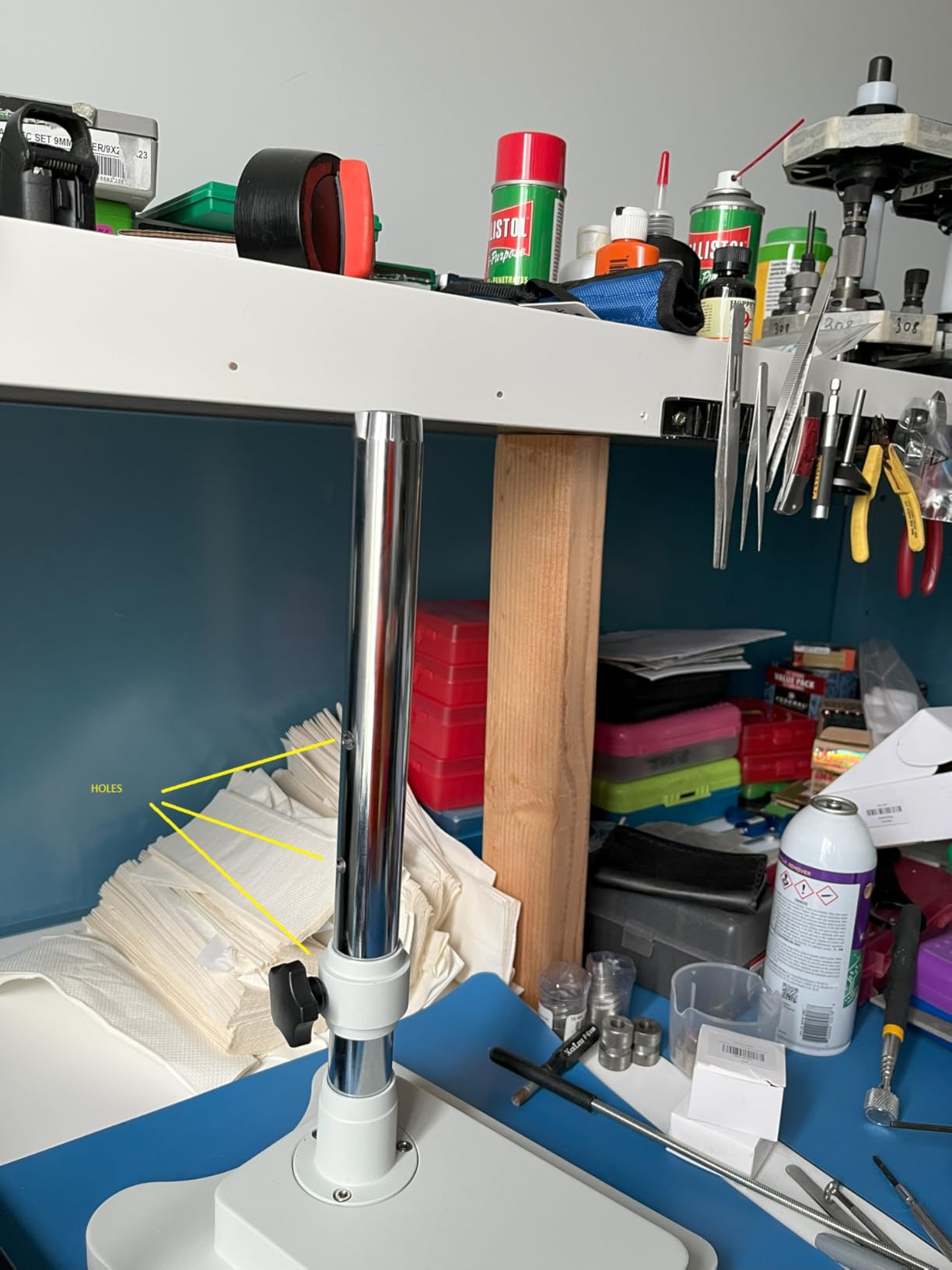

5. AmScope SM-4TZ-144A Trinocular Stereo Zoom – Continuous Zoom and a Four-Zone Ring Light
AmScope SM-4TZ-144A Professional Trinocular Stereo Zoom Microscope, WH10x Eyepieces, 3.5X-90X Magnification, 0.7X-4.5X Zoom Objective, Four-Zone LED Ring Light, Double-Arm Boom Stand, 110V-240V
0.7x-4.5x continuous zoom
Four-zone 144-bulb ring light
Double-arm boom
Trinocular head
5 year warranty
Pros
- Continuous 0.7x-4.5x zoom covers board survey to single joint
- Four independently controlled ring light zones reduce glare on shiny solder
- Double-arm boom with 20 inch reach and 17 inch pillar
- 0.5x and 2.0x Barlow lenses included
- Trinocular head rotates 360 degrees
Cons
- Most expensive instrument in the group
- Trinocular head is heavier and costs more with no camera attached
- Rheostat dims the ring at the housing rather than at the head
This is the most capable instrument in the group and the one with the strongest technical specification. The 0.7x-4.5x continuous zoom objective gives 3.5x-90x with the included 0.5x and 2.0x Barlow lenses, and at 7x to 45x without them. A single dial takes you from a whole-board view down to a single joint with no eyepiece changes and no refocusing.
The illumination is what really separates it. The removable 144-bulb ring light has four independently controlled zones, so you can light one quadrant and leave the others dark to shape the shadows on a raised component. Owners consistently credit this with solving the glare and shadow problems that plague single-source lighting on reflective boards.
The head is trinocular with 10x super widefield eyepieces, adjustable interpupillary distance, 45 degree inclination and 360 degree rotation. That third port is the route to a camera later, which is the argument for buying trinocular now rather than planning to add one to a binocular head you already own.
The double-arm boom has 20 inch arms on a 17 inch pillar and positions on the X, Y and Z axes. The result is a head that stays exactly where you put it over a large assembly, and it runs on universal 110V-240V power with a 5 year manufacturer warranty.
Who this microscope suits
It suits anyone doing serious board-level work where a single instrument has to cover inspection and rework. Continuous zoom removes the most common workflow interruption in fixed-power scopes, and the multi-zone ring light is close to indispensable on new boards with dense ground planes and exposed copper.
It also suits a technician who intends to document repairs. A trinocular head routes the same image to a camera, so before-and-after photos of a joint come from the exact view you were working in rather than from a phone held above the board.
Where it falls short
It is by far the most expensive model here, and the ring light and boom stand are bundled rather than optional, so you are paying for all of it whether or not you use the four zones. The trade-off framing in reviews is almost entirely about cost.
The trinocular head is heavier than a binocular head and adds cost that only pays off if you attach a camera. The brightness control is a rheostat at the housing rather than at the head, so adjusting it mid-task means reaching away from the workpiece, and some users miss having that control under the fingers.
6. DZQ ZQ-1 Multi-Directional Microscope – Wide Working Distance and a Dimmer That Works
DZQ ZQ-1 Multi-Directional Microscope 7X-45X Magnification 0.5X Barlow Lens
7X-45X continuous zoom
95-300mm working distance
60-LED dimmable ring
11.1 kg
Spring bracket
Pros
- Very wide 95-300mm working distance range
- 60-LED ring with a true 0-100% dimmer
- Continuous 7x-45x zoom plus a 0.5x Barlow
- Spring bracket holds position but still swings clear
- Aluminium alloy construction stays stable during fine work
Cons
- Spring bracket is an inspection mount rather than a full bench boom
- Heaviest chassis in the group at 11.1 kg
- No trinocular port for recording
- Marketing leans on jewellery and gemology
The working distance is the headline here, and it is a genuine advantage. The listed range is 95mm to 300mm, adjustable, which is far more clearance than most stereo scopes provide. That means tall assemblies, stacked boards and awkward phone chassis can all sit under the objective with room for tools alongside them, rather than being forced into a low, uncomfortable position.
The second thing worth knowing is the dimmer. The 60-LED ring light has a 0-100% dimmer, and a 4.5 average from more than a hundred ratings is a good result. Adjustable brightness is easier on the eyes over a long session and, more practically, it lets you cut the glare that a fixed-brightness ring produces on a wet solder joint or on bare copper.
Optically it covers the useful range properly: a 0.7x-4.5x zoom objective gives 7x to 45x continuous, and the included 0.5x Barlow lens drops the low end further and extends the working distance again. Focus is smooth and mechanical rather than geared, so fine adjustment under a joint is predictable.

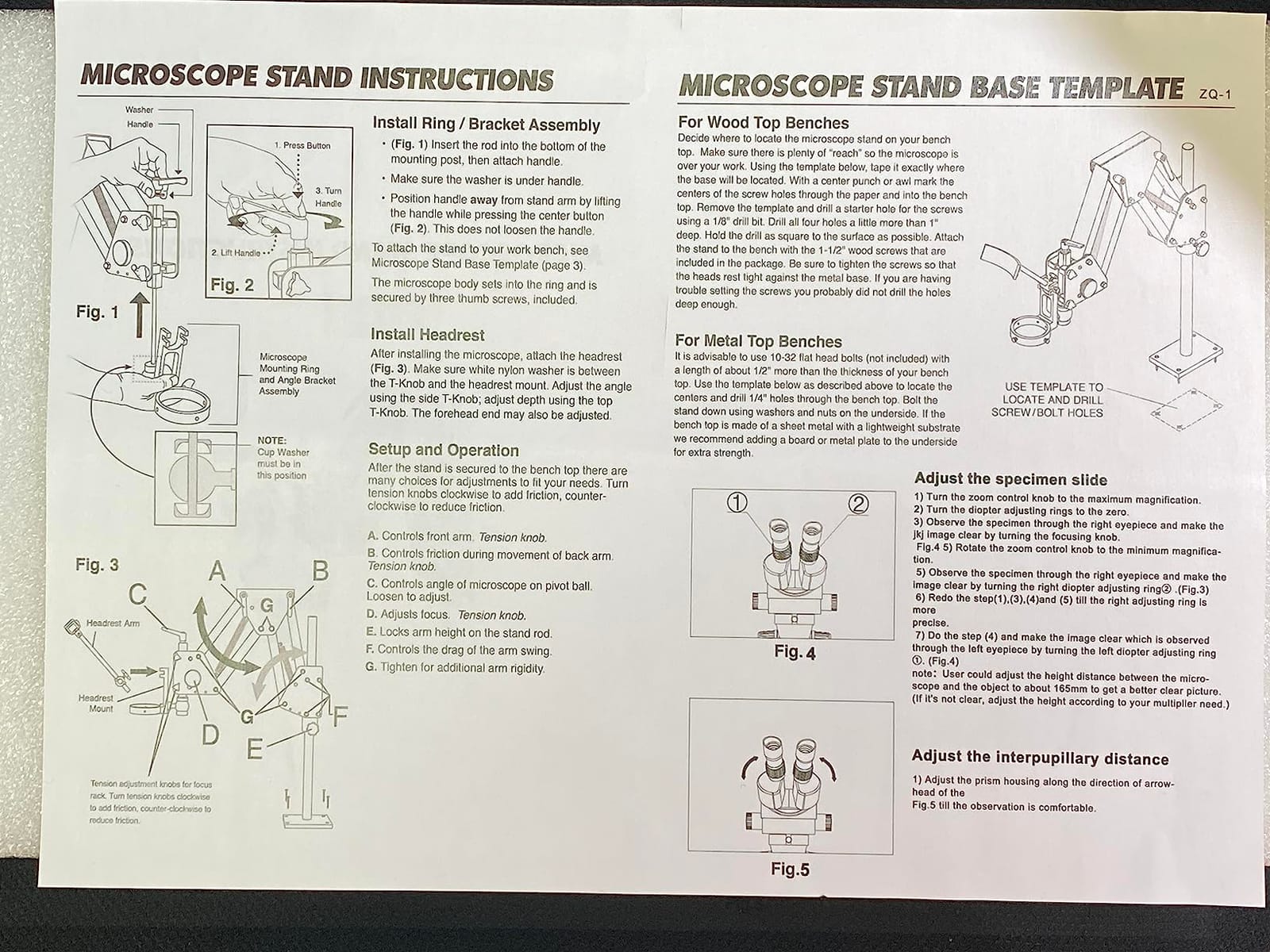

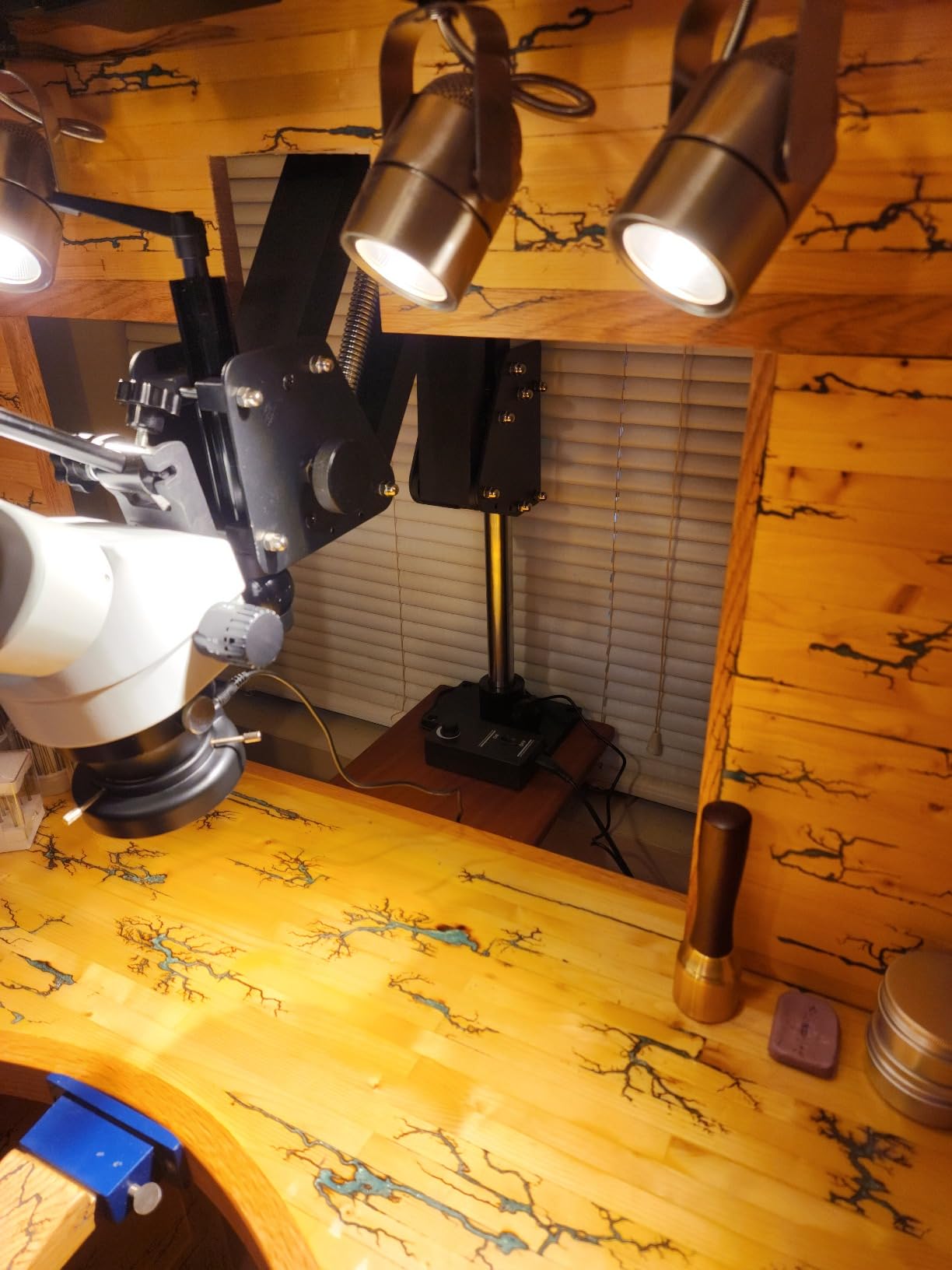

The support is a spring-mounted multi-directional bracket with an adjustable headrest, and this is where the design has a specific character. It holds position against normal touches but swings out of the way for direct access, which suits an inspection and rework workflow. Aluminium alloy construction keeps it stable during fine work.
Who this microscope suits
It suits anyone whose work involves unusual geometry: stacked assemblies, tall components, large boards that need to be viewed from more than one side, and repairs where a hot air pen and an iron need to be in frame at the same time. That flexibility is the reason to buy this over a cheaper fixed-power boom scope.
It is also the best-value route into a real zoom stereo microscope here. You get continuous magnification, a proper dimmable ring light, and a working distance range that would cost more elsewhere, without moving up to a full laboratory instrument.
Where it falls short
The spring bracket is a jewellery and inspection mount rather than a full bench boom. It holds a small workpiece well, but a very large PCB can still be tight, and you will not get the reach of a double-arm stand that can be parked over a large assembly.
At 11.1 kg this is the heaviest chassis in the group and needs a solid, level bench. There is no trinocular port, so recording inspection images needs a separate adapter, and the product marketing leans heavily on jewellery and gemology, which may not match what you expect from an electronics-focused instrument.

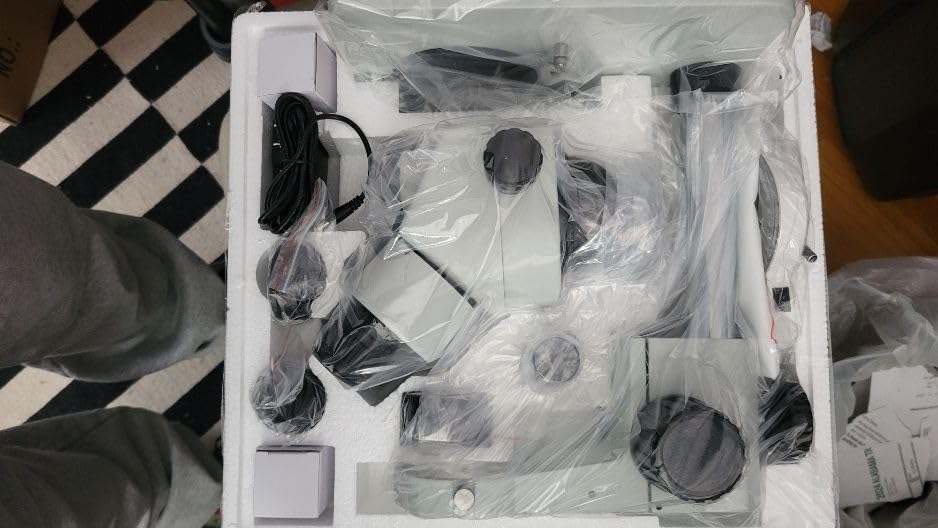

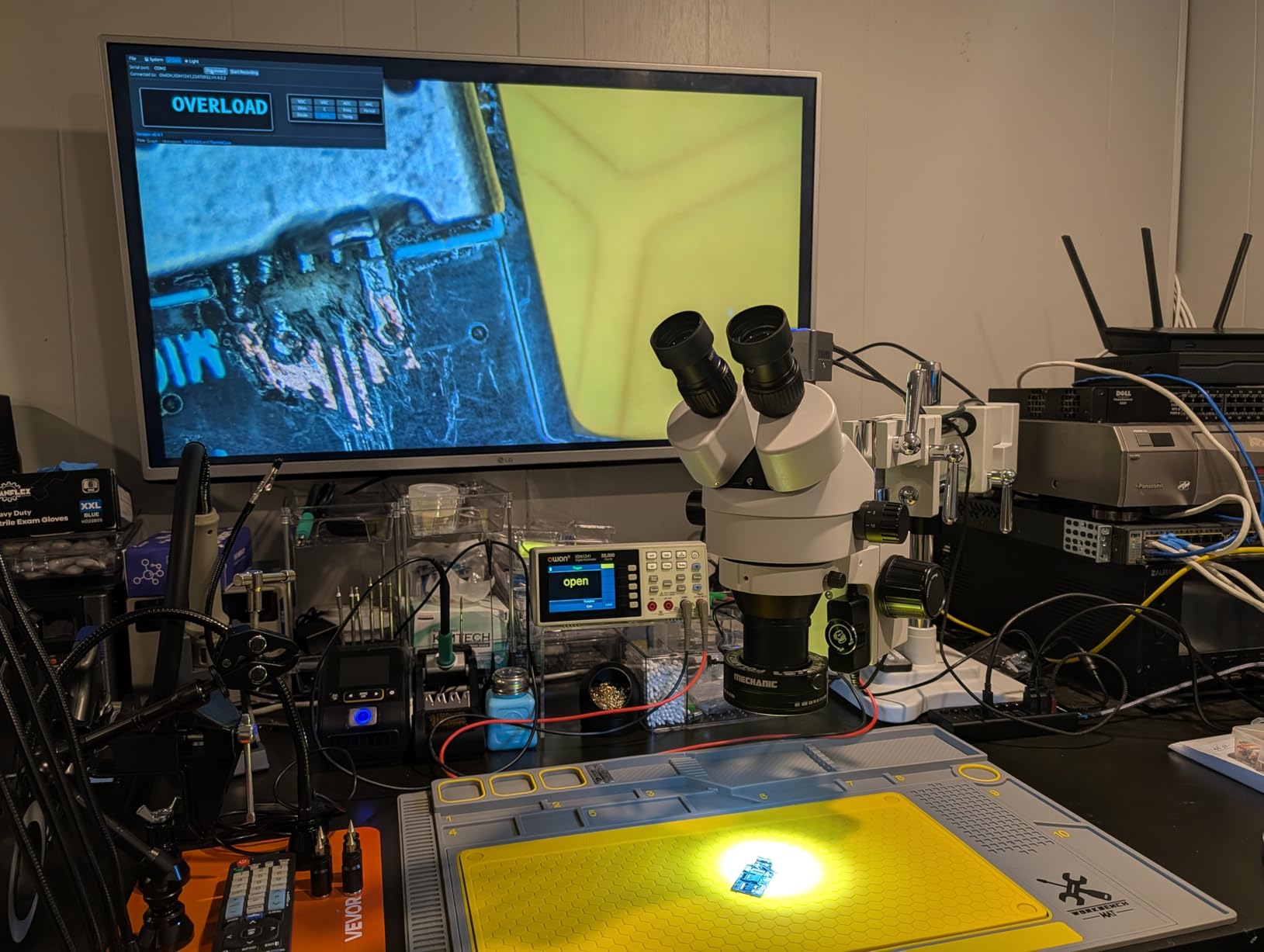

7. SWIFT S7 Trinocular Stereo Zoom – A Third Eyepiece You Can Actually Switch On
SWIFT Trinocular Stereo Zoom Microscope with 56-Bulb LED Ring Light,3.5X-90X Magnification,WF10X Eyepieces,0.7X-4.5X Zoom Objective, 0.5X 2.0X Additional Objectives,Table Pillar Stand
7X-45X and 3.5X-90X range
100mm working distance
56-bulb ring light
Switchable trinocular port
4.2 kg
Pros
- 100mm working distance clears typical PCBs and leaves tool access
- Even low-heat ring light without hot spots
- Trinocular port switches to photo capture for documentation
- 0.5x and 2.0x auxiliary objectives extend the range to 3.5x-90x
- 45 degree head rotates 360 degrees and suits eyeglass wearers
Cons
- Table pillar stand has no boom arm
- Only 46 ratings so less long-term field history
- Ring light brightness has no dimmer
- 230V specification
This is the pick for anyone who wants to record what they are doing without buying a full laboratory system. The vertical trinocular port can be used as an eyepiece or switched to a photo port, so you can flip between looking through the scope and attaching a camera for a before-and-after of a joint without changing anything else on the head.
The optics are sensible. A 0.7x-4.5x zoom objective with widefield 10x eyepieces gives 7x-45x, a 6.4:1 zoom ratio, and the included 0.5x and 2.0x auxiliary objectives expand that to 3.5x-90x from a single body. The working distance is a listed 100mm, which clears a typical PCB and leaves tool access underneath.
Two details stand out for long sessions. The head is tilted at 45 degrees and rotates through 360 degrees, and the optical design is stated to be usable with eyeglasses on, which is a genuine comfort for anyone who wears glasses and does not want to take them off and risk dropping a lens onto a bench.
Illumination comes from a 56-bulb ring light producing even, low-heat light. Low heat matters more than it sounds, because a hot light source close to a board can warm components you are trying to keep cool, and heat is not welcome near a part you are about to reflow.
Who this microscope suits
It suits a repair technician, a student documenting coursework, or a hobbyist who posts their work and wants proper inspection images. Instead of photographing a joint with a phone, the camera sees exactly the view the head sees, at the magnification you chose.
It is also a sensible compact choice. At 4.2 kg on a table pillar stand it is far easier to place than the double-arm models, which matters if your bench space is limited or you want the scope within reach of a seated position.
Where it falls short
The table pillar stand has no boom arm, so the head cannot be swung clear of the board to work on it by hand. For phone and laptop work where you need to hold a chassis at an angle and touch both sides of it, that is a real constraint.
There is no dimmer on the ring light, which can be harsh on reflective solder. The 230V specification may need a step-down transformer in some regions, and with 46 ratings this has a much thinner ownership history than the AmScope and SWIFT boom models, so you are relying on a smaller sample.

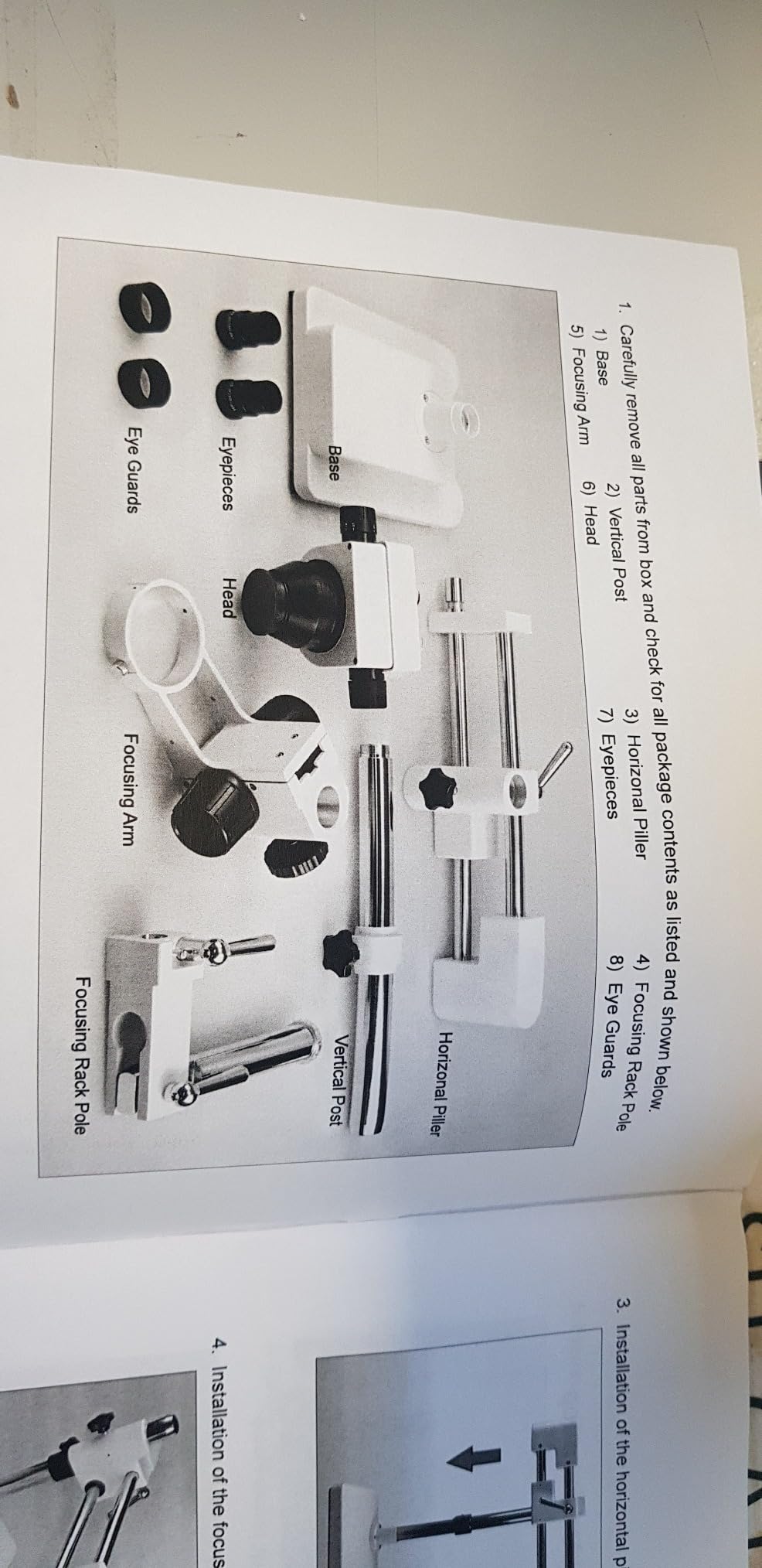

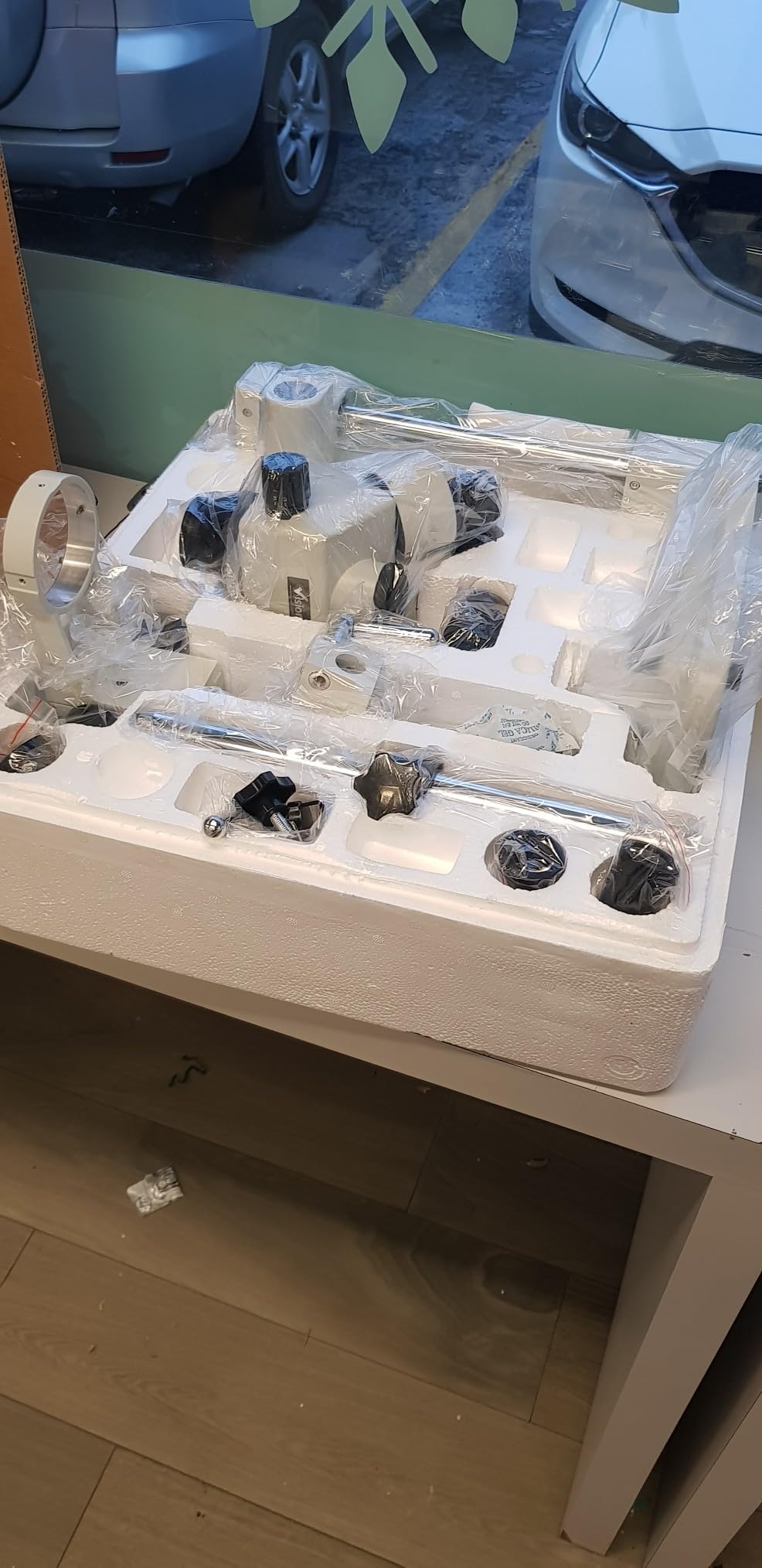

8. Vision Scientific VS-5FZ-IFR07 Trinocular – Parfocal Zoom and Per-Eye Diopter Adjustment
Vision Scientific Trinocular Stereo Zoom Microscope 3.5X-90X, Dbl-Arm Boom
Parfocaled 0.7x-4.5x zoom
Simul-Focal trinocular port
Plus or minus 6 diopter
144-LED ring light
Steel base
Pros
- Highest average rating in the group at 4.7 with no one-star reviews
- Parfocaled zoom stays sharp across the whole 3.5x-90x range
- Per-eye plus or minus 6 diopter adjustment
- Double-arm boom on a solid steel base with ball-bearing glide
- 144-LED ring light with intensity control
- Simul-Focal port supports a camera or touch screen
Cons
- Only 41 reviews so a thin ownership history
- Heavy boom and steel base need a robust bench
- 240V specification
- Long reach is awkward on a small desk
This is the highest rated model in the group at 4.7, with a distribution showing no one-star reviews at all. The specification that matters most for comfort is the parfocaled optical design: a 65mm field of view that stays sharp across the whole 3.5x-90x range, so you change magnification without chasing focus every time.
The other comfort feature is diopter adjustment of plus or minus 6 on both ocular tubes, alongside a 54-76mm interpupillary range. If your eyes are not matched in strength, this lets you correct each side independently rather than bending the head or accepting a soft image on one eye. Very few scopes at this level offer that.
The head is a 45 degree trinocular that rotates 360 degrees with a Simul-Focal port, which takes a digital camera or an HD touch screen. Simul-focal matters because the image stays in focus on the third port at the same time as the eyepieces, so a colleague can watch what you are doing without you having to pull the focus.
The stand is a double-arm boom on a solid-steel rectangular base with a ball-bearing arm glide, and focus is rack-and-pinion with adjustable tension. The 144-LED ring light has intensity control, so you can dial brightness against the heat it puts out. The unit measures 24 by 12 by 20 inches.
Who this microscope suits
It suits anyone who wears glasses or has uneven eyesight and plans to work under the scope for hours at a time. The per-eye diopter adjustment plus a parfocal zoom removes the two most common sources of eye strain in a long solder session: a blurry image you are compensating for, and constant refocusing as magnification changes.
It also suits a technician who wants to share or record the work. The Simul-Focal port takes a camera or a touch screen, and the 360 degree rotating head means the view can be turned toward a second person without moving the board.
Where it falls short
With 41 reviews, the track record is thinner than the other boom-stand models here, and the main reservation raised in the reviews is simply that fewer people have owned it long enough to build a history. The double-arm boom and steel base are heavy and need a robust bench.
The 240V specification needs checking against your supply, and the long boom reach is awkward on a small desk. If your bench is compact, a pillar stand model like the SWIFT S7 will fit your space far more comfortably.
9. ZTEEERS Trinocular Stereo Zoom – A Bundled 0.5x Objective on an 18lb Steel Base
ZTEEERS Professional Trinocular Stereo Zoom Microscope, 3.5X-90X Magnification,WF10X Eyepieces, 0.7X-4.5X Zoom，0.5X & 2.0X Auxiliary Lens, Double-Arm Boom Stand, 56S LED Ring Light,Two adapters
3.5X-90X magnification
18lb steel base
56S dimmable ring light
Two port adapters
1 year warranty
Pros
- Owners report quality and function matching the AmScope SM-4NTP
- 0.5x auxiliary objective gives a low-power overview the 10x eyepieces lack
- Continuous 0.7x-4.5x zoom with 0.5x and 2x lenses included
- 18lb steel base stays steady with no sagging or creeping
- Around 20cm clearance under the head for soldering and tools
- Per-eye diopter adjustment and a dimmable ring light
Cons
- Very heavy and roughly 2.5 feet long
- Awkward to move and costly to return
- Poor instructions
- Only a 1 year warranty
The clearest value story in this group comes from a single highly detailed owner review, which states that this microscope is functionally identical to the AmScope SM-4NTP, that the equivalent AmScope build would cost roughly twice as much, and that the ring light and both Barlow lenses are bundled rather than sold separately. That comparison is specific to one unit, but it lines up with what the rest of the reviews describe.
The 0.5x auxiliary objective is the accessory that matters most for electronics, and owners specifically report it as the right choice for PCB rework because it delivers the low-power overview that plain 10x eyepieces cannot. With the 0.7x-4.5x zoom objective plus 0.5x and 2.0x lenses, one instrument covers 3.5x to 90x.
The head is trinocular with 10x super widefield eyepieces, 48-75mm interpupillary adjustment and plus or minus 6 diopter per ocular tube, at a 45 degree inclination with 360 degree rotation. The trinocular port ships with two adapter configurations, one for electronic eyepieces and one for digital cameras, which removes the most common stumbling block when adding a camera later.
There is around 20cm of clearance under the head, which is enough to solder and bring tools in beside the work. The base is a solid steel rectangle weighing 18lb with a single-arm boom on a ball-bearing glide, and the 56S ring light has a dimmer switch.
Who this microscope suits
It suits someone who wants the specification of a mid-level trinocular without paying the brand premium, and who has already decided they want a double-arm boom with a ring light. The bundled 0.5x and 2.0x lenses alone would be a meaningful extra cost on scopes that sell them separately.
For anyone doing repeated rework where board orientation changes constantly, the 18lb base is a real advantage. Reviewers confirm it does not sag or creep when touched, which is the failure that undermines cheaper boom stands.
Where it falls short
Size and weight are the dominant complaints. It is roughly 2.5 feet long, and several owners bought it expecting a desktop unit and found they needed to clear a section of bench for it. One reviewer added clamps on a wheeled cart to stop the extended boom tipping, and moving it around is described as awkward.
The instructions are poor, and multiple reviewers had to work out assembly from videos and photographs. The warranty is 1 year, shorter than the 5 year terms offered by some rivals, and with 37 reviews it has the thinnest owner history in this group.
How to Choose a Stereo Microscope for Soldering?
Magnification: why optical zoom beats a big number
Look for continuous optical zoom in the region of 7x to 45x. That range covers essentially all hand soldering and inspection work, and a continuous objective lets you move between board overview and joint detail without swapping eyepieces or refocusing. Magnification above about 45x is useful for inspection only, because at that power the depth of field becomes so shallow that a joint goes out of focus as your hand moves a fraction of a millimetre.
Be careful with any listing that quotes a very large headline figure. A number like 1000x is almost always digital interpolation, which enlarges an image without adding any detail and does nothing for the actual work. Optical magnification is the number produced by glass. An EEVblog moderator gives advice that matches our own experience: 10x or less is generally best while soldering, and 10x is also plenty for inspection.
Working distance is the number that decides comfort
Working distance is the gap between the front of the objective and the workpiece. For soldering, treat 100mm as the practical minimum, because you need room for an iron, tweezers and a hot air pen under the head. Below that you end up tilting the board up toward the lens, which is both uncomfortable and, as forum users point out repeatedly, causes components to spring off a tilted board.
Anything that lets you vary working distance, like the 95-300mm range on the DZQ ZQ-1, is a genuine advantage for unusual assemblies. A 0.5x Barlow lens also extends working distance while lowering magnification, which is why it is the recommended accessory for soldering work.
Illumination decides whether you can see the joint
Shiny solder and bare copper reflect a light source straight back at you, so the quality of the lighting determines whether you can actually judge a joint. A ring light placed directly above the objective gives the most even, shadow-free result because the light arrives from the same direction your eye does. A dimmer matters here, since it lets you reduce brightness on reflective surfaces.
Two aimable gooseneck lights, as on the SWIFT S41-20, solve shadows from a different angle by letting you fill from two directions. Multi-zone ring lights, as on the AmScope SM-4TZ-144A, give finer control still. What you want to avoid is a single fixed light source with no brightness control, because it produces glare exactly where you need clarity.
Head type: is a trinocular worth it?
A binocular head gives you two eyepieces and a true 3D image. A trinocular adds a third vertical port for a camera. If you will never record anything, the third port is dead weight and costs money. If you might document repairs, teach, or share a screen, buying trinocular now is far cheaper than trying to add a camera port to a binocular head later, because binocular heads generally do not have one.
Some trinocular heads, including the Vision Scientific model here, use a Simul-Focal design so the image stays in focus on the third port at the same time as the eyepieces. That matters if someone else is watching. Some binocular scopes, including the SWIFT S41-20, accept an external USB camera adapter instead, which is a cheaper partial route to the same goal.
Stand type and the focus drift problem
A pillar stand is compact and stable but cannot be swung aside, so you cannot get direct hand access to a workpiece or view it from the side. A single-arm boom gives you reach and lets the head move out of the way. A double-arm boom gives reach plus vertical positioning over a large assembly, and is the right choice for laptop and phone work.
The recurring complaint on boom stands is creep: a lightly balanced arm drifts after you touch it, and your focal point moves. Heavy bases, ball-bearing arm glides, and tension-adjustable focus all reduce this. A steel base of 18lb or more, as on the ZTEEERS and Vision Scientific models, resists it best. If you buy a lighter stand, re-balance the arm before every precision job rather than after.
Comfort, glasses and known failure modes
For comfort, look for a 45 degree inclined head, widefield eyepieces, adjustable interpupillary distance, and per-eye diopter adjustment. Widefield eyepieces give a larger view of the board for the same magnification, which means less head movement. Per-eye diopter correction, found on the Vision Scientific and ZTEEERS models here, matters if your eyes are not equally strong. Two scopes in this group are explicitly designed for use with eyeglasses on.
On failure modes, three things come up repeatedly. Ring LEDs eventually burn out, so a scope with a replaceable ring and a dimmer ages better than one where the whole housing is the light. Boom arms creep or oscillate if under-tensioned, causing focus drift. And both flux residue and solder fume film on the front objective, which is why a lens cap or a clear cover over the optics while you are not working makes a measurable difference on a shared bench.
Frequently Asked Questions
What is the best type of microscope for soldering?
A binocular or trinocular optical stereo microscope with continuous zoom magnification of roughly 7x-45x, a working distance of at least 100mm, and LED ring or dual-arm illumination. Optical models give a true 3D view with depth perception and zero image lag, which is why they suit hand soldering, SMD rework and joint inspection far better than screen-based digital units.
What magnification is good for soldering?
7x to 45x continuous optical zoom covers almost all soldering and inspection work. Around 10x is the sweet spot for working, because it keeps enough depth of field to stay focused as your hand moves, and it is generally enough for inspection too. Higher powers are useful for close joint analysis, but above roughly 45x the depth of field becomes too shallow to work under. Ignore very large claims like 1000x, which are digital interpolation rather than optical magnification.
Is a stereo microscope worth it for hobby soldering?
For occasional through-hole work, a loupe is usually enough. The upgrade pays off once you start repeated SMD rework, phone or laptop motherboard repair, or fine-pitch inspection, because the change is not just bigger, it is a 3D view with both hands free. A beginner on r/soldering described their first solder under a 10x stereo head as something they should have bought years earlier.
What are the downsides of using a stereomicroscope?
The main drawbacks are cost, bench space and a fixed eyepiece height that can cause neck and eye strain without an adjustable arm. Fixed-magnification models interrupt your workflow whenever you swap eyepieces, and cheap boom arms creep so the focal point drifts between adjustments. Digital models avoid some of this but introduce image lag that makes tracking a moving iron tip difficult.
Do I need a trinocular microscope for soldering?
Only if you plan to record, document or share the view. The third port on a trinocular head routes the same image to a camera or screen, often with a simul-focal design that keeps everything in focus. If you never attach a camera, a binocular head is lighter and cheaper. If you think there is a chance you will want documentation later, buying trinocular now is far less expensive than changing head later.
Is SWIFT or AmScope better?
Both build competent optics and both appear repeatedly in owner recommendations. AmScope models here generally offer longer warranties and more published specifications, and the SE400 has the deepest review history of any model in this group. SWIFT units such as the S41-20 are often praised for build quality and for the dual gooseneck lighting, and usually cost less for a comparable configuration.
Are AmScope microscopes of good quality?
Yes. AmScope scopes in this group average around 4.4 to 4.6 stars, and the boom-stand models carry 5 year manufacturer warranties with metal construction. Owners report years of reliable service, and the main criticisms are about format rather than quality, such as fixed magnification pairs on some models and single-source lighting. For optics and warranty length, AmScope is one of the safest names here.
What digital microscope is best for PCB repairing?
Digital microscopes win when you need to share or record: a screen lets a colleague watch, and a camera captures the joint at the exact magnification you chose. The most commonly cited deal-breaker is image lag, which makes it hard to track a moving iron tip. For hands-on rework, an optical stereo scope with a trinocular port gives you both, since the camera sees the same view as the eyepieces.
Conclusion: Which Stereo Microscope for Soldering Should You Buy?
Our pick for most people is the AmScope SE400 Series boom-arm scope. A 9 inch working distance, interchangeable 10x and 20x widefield eyepieces and 589 ratings behind it make it the least risky way to get a proper optical stereo microscope for SMD rework and PCB repair, and the 5 year warranty means the risk of an early problem is low.
If you want continuous zoom, choose the DZQ ZQ-1 for its 95-300mm working distance and dimmable ring light, or the AmScope SM-4TZ-144A if you want the multi-zone ring and a trinocular head. For cordless work, the AmScope SE306R-P-LED is the only option here that runs on a battery. Whatever you pick, check the working distance and the illumination before anything else, because those two specs decide whether you enjoy working under it. Use the buttons above to check the current details.
