A tape measure and a machinist square will get you through a weekend project. They will not get you through a repeatable setup, and setup is where most home machine shop parts get scrapped. When I set a blade height, a vise jaw, or a drill press stop, I need the same number every time, and I need to be able to scribed that number onto the steel. That is the whole job of a height gage, and choosing the wrong one quietly poisons every measurement that follows it.
This roundup covers the best height gauges for home machine shops in 2026, from a pocketable plastic multi-tool to a twin-beam Fowler dial gage. I picked them around one question: does the tool hold a repeatable reading, and does the carriage stay where I put it while I mark the line.
One note on spelling before we start. Most machinists type height gage, not height gauge, and both spellings appear throughout this guide. They are the same tool.
Table of Contents
What Is a Height Gage?
A height gage is a precision tool that measures and marks vertical height. It has a flat hardened base you set on a workpiece or reference surface, a vertical beam, and a sliding carriage carrying either a dial indicator, a digital readout, or a vernier scale. A carbide scribe tip on the carriage transfers that height onto the metal as a scribed line, so one tool both measures and marks.
As for the most accurate tool for measuring height, there is no single answer outside a lab. A coordinate measuring machine sets the reference standard, gage blocks stacked against a surface plate and read with a dial indicator come close to it, and a height gage sits one tier below that. For home shop work, a gage accurate to 0.0005 inch is more than enough for essentially any machine you own.
You set the base flat on your datum, slide the carriage up the beam to the height you want, then either read the display or lock the thumb screw and draw a line. The vernier version of the same idea was the standard in machine shops for decades, and its dual purpose is still worth remembering: a height gage is as much a layout tool as a measuring tool.
Top 3 Height Gages for a Home Machine Shop (October 2026)
These are the three I keep within reach. The iGaging 6 inch unit is the one I reach for first, the Shars dial is what I grab when I want a mechanical readout, and the Shars 12 inch electronic covers the range most home mills actually need.
iGaging 6 Inch Digital…
- Magnetic base
- 0.0005 inch resolution
- Fraction display
- 2 CR2 batteries included
Shars 12 Inch Dial Height Gage
- 0.001 inch graduation
- Thumb roll fine adjustment
- Carbide scriber included
- Mechanical dial
Shars 12 Inch Electronic…
- 0.0005 inch / 0.01mm resolution
- Ground microlapped base
- Inch and metric LCD
- Carbide scriber
Best Height Gauges for Home Machine Shops in 2026
All ten picks below are written for metalworking setups rather than for contractors or woodworkers. I excluded the infrared stadiometers that dominate competing roundups, since measuring children has nothing to do with a mill vise.
| Product | Specs | Action |
|---|---|---|
| iGaging 6 Inch Digital Electronic Height Gage |
|
Check Latest Price |
| Shars 12 Inch Dial Height Gage 303-4410 |
|
Check Latest Price |
 Starrett Electronic Height Gage 0-6 Inch |
|
Check Latest Price |
| Shars 12 Inch Electronic Height Gage 303-4460 |
|
Check Latest Price |
 Mxmoonfree 12 Inch Digital Height Gauge |
|
Check Latest Price |
 Fowler Twin Beam Dial Height Gage 0-12 Inch |
|
Check Latest Price |
 INSIZE 1156-300 Electronic Height Gage 0-12 Inch |
|
Check Latest Price |
 Mitutoyo 506-208 Vernier Height Gage 0-8 Inch |
|
Check Latest Price |
 iGAGING 35-629 Electronic Height Gage 0-6 Inch |
|
Check Latest Price |
 iGAGING 3-in-1 Multi-Gauge 0-6 Inch |
|
Check Latest Price |
1. iGaging 6 Inch Digital Height Gage with Magnetic Base – Best Overall for a Garage Shop
iGaging Digital Electronic Height Gauge with Magnetic Base, 6 Inch
6 inch capacity, magnetic base, 0.0005 inch resolution, fraction display, 2 CR2 batteries
Pros
- Repeats to 0.0005 inch in routine shop use
- Reads in mm
- decimal inch and fractional inch
- Magnetic base clamps to steel tables and ways
- Flat-sided body works for spacing measurements
- Lowest cost per feature here
Cons
- No thumb wheel
- so exact settings take hand nudging
- Heavy coin-cell battery drain
- Soft metal that wears under hard use
iGaging 9318 – 6 inch capacity – 0.0005 inch resolution – best overall for a home shop that does real metalwork. I have one clamped to the knee of my mill, and it does more work than any single-purpose measuring tool I own at that weight class.
The magnetic base is the reason it keeps coming back. It sticks to the cast iron table, the ways, or the back of the vise, which means I can set a fixed height and walk away from it while I fetch a wrench. The display offers millimeters, decimal inches, and fractional inches, and the fraction mode is genuinely useful when I am matching an existing part rather than hitting a round number.
The honest weakness is the carriage. There is no thumb wheel or micrometer fine adjustment on this model, so locking in an exact value means holding the carriage with one hand and nudging it with the other. For a layout line at a nominal dimension that is fine. For scribing a precise height in one pass, it is slow work.
Battery life is the other recurring complaint. Two CR2 cells are included, but the drain is high enough that I keep spares in the bench drawer. Reviewers also note the stainless steel is on the soft side, so this is a tool for setup work rather than one to drop off a shelf. It is not a machinist inspection grade instrument and should not be sold as one.
What holds zero and what does not: in normal use I get the same reading back every time at the same position, which is the only test that matters for setup. The failure mode for cheap electronics is zero drift, not resolution, and this unit has held its zero across months of shop use.
Where this height gage earns its place
It handles table saw and bandsaw blade height, router bit depth, dado and groove setups, and shallow vise jaw work. Anything under six inches of travel on a ferrous surface, it covers well. The fraction display makes it pleasant for matching an existing part.
It also lies on its side for spacing work, thanks to the flat-sided body and the built-in reference. That is a genuinely useful second job for a magnetic base unit that nobody mentions in the listings.
Who should skip this height gage
Skip it if you scribe a lot of precise layout lines on a daily basis, because the hand-nudged carriage will slow you down faster than any accuracy issue. Skip it if you work in aluminium or brass setups where a magnetic base gives you nothing, and skip it if you need to measure above six inches.
I would also not hand this gage to someone doing inspection work where the number goes on a report. It is a setup tool with good repeatability, not a calibrated standard.
2. Shars 12 Inch Dial Height Gage 303-4410 – Best for Mechanical Precision
Shars 12″ Dial Height Gage 303-4410 R]
12 inch range, 0.001 inch graduation, plus or minus 0.0016 inch accuracy, carbide scriber included
Pros
- Fully mechanical
- no battery or electronics to fail
- Thumb roll fine adjustment speeds up exact settings
- Carbide scriber and clamp included
- Hardened stainless steel rack
Cons
- Inch-only dial with no metric scale
- Heavy and bulky for a small bench
- Mechanical dial is sensitive to knocks
Shars 303-4410 – 12 inch range – 0.001 inch graduation – best for machinists who prefer a mechanical readout. A dial gage is the traditional shop instrument, and once you get used to reading one you tend to trust it more than a screen that can lose its zero.
The graduation is 0.001 inch with accuracy rated at plus or minus 0.0016 inch across the full twelve inches. The dial face is a shock-resistant white at 42.40 mm, or 1.67 inch, and it includes a resettable digit counter reading tenths of an inch per revolution. That counter is what makes a twelve inch gage practical rather than tedious.
The thumb roll fine adjustment is the feature I would not give up. The carriage rolls to a value, you take the tension off with the thumb roll, and it settles on the number. Scribing a repeatable line becomes a two minute job instead of a fight with a sliding rack.
What makes a dial gage different in daily use
There is no battery, no boot sequence, and no zero to lose. Pick it up after a week on the bench and it works exactly as it did before. That reliability is why die-hard shops still buy dial instruments even when electronic units are cheaper.
The scriber, the scriber clamp, and the fine adjustment knob all ship in the box, so nothing else needs buying before the first layout line. The hardened stainless steel rack is a sensible place to spend the money, since that is the part that sees the wear.
Where this dial height gage falls short
This model reads in inches only. If your work is in metric, you are reading by conversion or you are using the wrong gage, and there is a metric electronic version of this same gage in the list below.
At 6.91 pounds and roughly 23 by 17 by 7 inches, it is a two hand carry and a dedicated shelf. In a one-car garage shop that is a real cost, and a knock to the dial can knock the reading out. Treat it as an instrument that lives on a bench rather than one that moves around with you.
3. Starrett Electronic Height Gage 0-6 Inch – Best for Brand Recognition in a Working Shop
Starrett Electronic Height Gage, 0-6″ Range, .0005″ Resolution
0-6 inch range at 0.0005 inch resolution, lapped hardened base, 0.932 inch LCD, depth attachment
Pros
- Hardened
- ground and lapped base gives a flat reference
- Large high contrast characters read without strain
- Auto off after five minutes saves battery
- Name other shops already accept
Cons
- 6 inch range is short for knee mills and lathes
- Needs a CR2 coin cell
- Large bench and case footprint
Starrett 3751AZ-6/150 – 0-6 inch range – 0.0005 inch resolution – best for anyone who wants a recognized name on the tool chest. Starrett comes up constantly in machinist forums as a trusted tier, and one Home Shop Machinist thread on measuring tools made the point plainly that Starrett micrometers and calipers are the preference for real work.
The base is the reason to pay up. It is hardened, ground, and lapped, with finger grooves cut into it so the carriage rolls smoothly instead of catching. The vertical bar is hardened stainless steel and set back from the nose edge, which keeps the gage from tipping when you place it near the edge of a part.
The LCD is 0.932 inch high characters, which sounds like a small detail until you are reading it through safety glasses at arm’s length from a vise. There is manual on and off plus an automatic off after five minutes of non-use, and a thumb roll fine adjustment with a depth attachment in the box.
What the Starrett name actually buys you
Two things in practice. First, the base is a known flat reference, and a gage that rocks or has a hollow ground base will give you a reading that changes as you move it. Second, serviceability. If something fails, parts and advice exist, and the tool keeps its value.
For a shop that does a little inspection work and a lot of setup, that combination is worth more than another two decimal places of nominal resolution.
Who should skip this height gage
Skip it if your machine has more than six inches of vertical travel. The single most cited complaint is the range, and it is correct: a knee mill table or a lathe cross slide will outrun this gage, and you will end up measuring in two passes and adding errors.
Skip it if you need metric output, since this unit is inch focused. And skip it if the only reason you want it is the badge on the box, because the twelve inch Shars electronic below does more for the money and covers more range.
4. Shars 12 Inch Electronic Height Gage 303-4460 – Best Value for Most Shops
Shars 12″/300mm Electronic Height Gage 303-4460 R]
0-12 inch / 300mm range, 0.0005 inch / 0.01mm resolution, plus or minus 0.0016 inch accuracy
Pros
- Dual inch and metric readout at fine resolution
- Ground and microlapped hardened steel base
- Weighs enough to stay put while scribing
- Fine adjustment and carbide scriber included
- Also made in 18 and 24 inch versions
Cons
- Display is unlit with a narrow viewing angle
- Beam could be wider for a 12 inch span
- One owner reported stiff slider spots
Shars 303-4460 – 0-12 inch / 300mm range – 0.0005 inch and 0.01mm resolution – best value for a home machine shop that needs one gage to do everything. This is the one I recommend to people who ask for a single answer.
Twelve inches of range covers a Bridgeport style knee mill table, a lathe cross slide, a jointer, and a saw set all in one travel. Resolution is 0.0005 inch and 0.01mm with accuracy of plus or minus 0.0016 inch and 0.04mm, and the high contrast LCD switches between inch and metric with a button.
At 14 pounds the base does not slide around while you scribe, and the hardened steel base is ground and microlapped so the reading holds steady as the carriage moves. Fine adjustment and a carbide tipped scriber come included, which is where most of the value sits compared to buying accessories separately.
Why the 12 inch range matters more than the extra decimals
Range is a capability decision and resolution is a quality decision. If your work is under six inches, a six inch gage answers everything you ask. If you have a knee mill with a table that swings up toward the head, twelve inches is the minimum that avoids a two step measurement.
At 0.0005 inch, this gage is already past the point where a home shop gains anything. The remaining value is in the base flatness, the range, and the included tooling, not in the last digit of the display.
What to watch out for with this gage
The display is not backlit, the numerals are small, and the viewing angle is narrow enough that you should read it square on. In a dark shop or with a headlamp, that is mildly annoying. A few owners also report sticky spots along the slider, which is the thing to check first if your repeatability looks off.
At 14 pounds and roughly 21 by 10 by 6 inches, plan where it lives before you buy. This is a bench instrument, not a portable one.
5. Mxmoonfree 12 Inch Digital Height Gauge with Cast Iron Base – Best for CNC Tool Setup
Mxmoonfree 12″ (300mm) Digital Height Gauge 0.0005″/0.01mm Resolution
12 inch / 300mm range, 0.0005 inch resolution, plus or minus 0.001 inch accuracy, cast iron base
Pros
- Verified accurate against calibrated gage blocks
- Quenched heavy cast iron base
- Micro-adjustment wheel for incremental moves
- Hard shell case and LR44 batteries included
- Tolerance alert prevents overshooting
Cons
- Narrow display viewing angle
- Finish quality is below the established brands
- Dial indicator holder fits 8mm stems only
Mxmoonfree LS-6-STX – 12 inch / 300mm – 0.0005 inch and 0.01mm resolution – best for CNC tool height setting and anyone who wants tolerance functions. This is the one that surprised me most in the roundup.
Resolution is 0.01mm and 0.0005 inch with accuracy of plus or minus 0.02mm and 0.001 inch, which is a tighter accuracy figure than most gages at this level claim. The base is a hand assembled, quenched heavy cast iron unit, and that mass is the feature. When you are setting a tool offset by hand, the gage does not creep while you write down the number.
It also has ABS and INC modes, inch and millimeter switching, zero set at any point, and a tolerance alert. Absolute mode means the encoder remembers the origin zero, so powering down and back up does not cost you your reference. The micro-adjustment wheel handles incremental positioning smoothly, and a bracket accepts a dial test indicator if you want one mounted on the carriage.
What is included is generous: a hard shell case, two LR44 batteries, and the indicator bracket. Reviewers report checking accuracy against calibrated gage blocks and finding it holds, which is the only verification that matters on day one.
Automatic power off is not listed among the controls, so treat the battery life as finite and keep a set of LR44 cells in the bench. Two cells rather than one coin cell also means you have redundancy if one goes flat mid setup.
The case matters more than it sounds. A 12 inch gage that lives loose on a bench collects chips in the carriage rails, and the rail is the first place a sticky slider shows up. Keeping it cased between jobs is the cheapest maintenance there is.
Where the tolerance alert earns its keep
When you are dialing in a tool height to a number, the tolerance alert changes your workflow. Instead of watching digits, you set a limit and the display tells you when you are inside it. For repeated tool setting on a CNC, that saves more time than the readout speed does.
Absolute mode is the other quiet winner. Incremental digital gages lose their zero when the carriage lifts or the battery dies. An absolute encoder does not, and that is the difference between a tool you trust to remember a setup and one you re-zero every morning.
Who should skip this digital height gauge
Skip it if finish quality matters to you in a way you will notice daily. The machining attention here is not at the level of Starrett or Mitutoyo, and the display has a narrow viewing angle that needs a square on read.

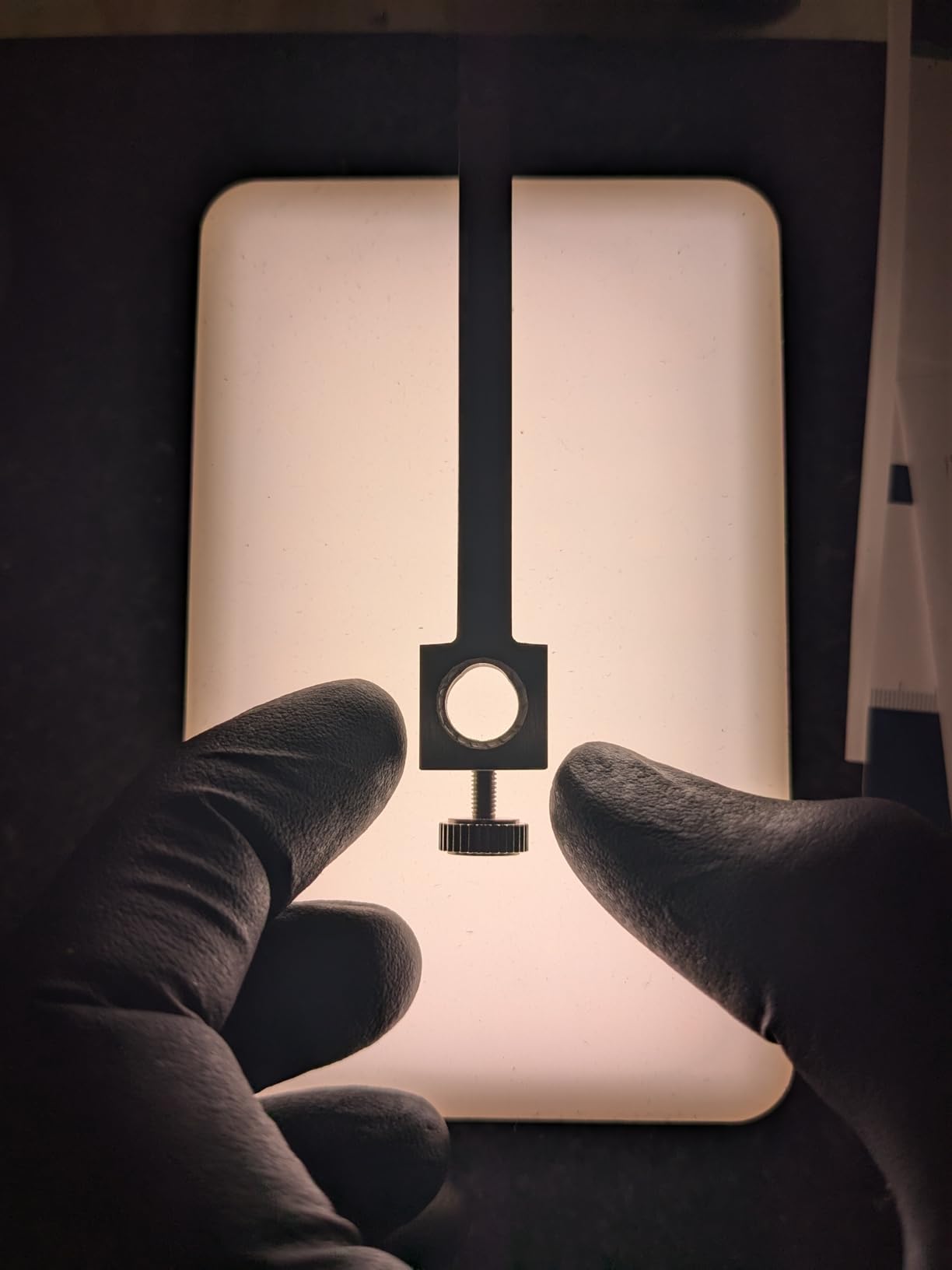

Also note the dial indicator bracket is sized for 8mm stems, so a thin stem indicator will fit tightly. And with only 16 reviews, the long term durability record is thin. What you are buying is a capable instrument with a strong feature set, not a brand with a service network behind it.
6. Fowler 52-174-212-0 Twin Beam Dial Height Gage – Best for Long Span Rigidity
Fowler 52-174-212-0 Twin Beam Dial Height Gage with 0-12″ Measuring Range
0-12 inch range, twin chrome beams, 0.001 inch dial reading, plus or minus 0.0015 inch accuracy
Pros
- Twin beams limit flex over a 12 inch span
- Resettable up and down dial counters
- Lever locks the carriage while scribing
- Lapped base with glare free satin chrome
- No batteries
Cons
- Coarse beam graduations take practice
- 12 inch is still short for large knee mills
- A 24 inch version suits wider table travel
Fowler 52-174-212-0 – 0-12 inch range – 0.001 inch dial reading – best when beam flex is your concern. Fowler builds this one with two chrome plated beams rather than one, and that is the whole argument for it.
On a single beam gage, the further you slide the carriage from the base, the more the beam bows, and the reading drifts from the true height. Twin beams share the load across the span, which keeps a twelve inch gage honest near the top of its travel. If you are measuring a tall part on a Bridgeport style table, that is not a small detail.
The coarse graduations on the beams read 0.100 inch and the dial indicator handles the fine work at 0.001 inch with accuracy of plus or minus 0.0015 inch. The dial has resettable up and down counters so you can read incremental moves in either direction, and zero can be set anywhere in the range. A carriage lock lever holds the head steady while you scribe.
Reading a twin beam gage without frustration
You read the beam graduation, then add the dial, then add the counter. It is three numbers and it feels slower than a single LCD for about a week. After that it becomes automatic, and many machinists prefer it because each number is a discrete mechanical fact rather than a computed one.
The satin chrome finish resists rust and is glare free, which matters more than it sounds when you are trying to read a white dial under shop lights. The base is hardened, ground, and lapped, and the carbide tipped scriber has a 0.350 inch by 0.0350 inch shank.
Where this Fowler falls short
Twelve inches is the span, and for a wide Bridgeport table travel you would need the 24 inch version, which is a different purchase. The coarse beam reading is genuinely a learning curve, and if you want a single glance answer, an electronic gage is easier.
Feedback here is thin at 15 reviews, all strongly positive, so you are buying on construction and specification rather than on a long owner history.
7. INSIZE 1156-300 Electronic Height Gage with Driving Wheel – Best for Transferring Heights to the Part
INSIZE 1156-300 Electronic Height Gage with Driving Wheel, 0-12″
0-12 inch range, 0.0005 inch and 0.01mm resolution, stainless steel, driving wheel feed
Pros
- Driving wheel transfers a set height onto the work
- Fine resolution from a stainless steel body
- Data output port for recording readings
- Pre-set offset
- hold and unit controls
- Carbide scriber included
Cons
- Cost is high for a one person home shop
- Requires a CR2032 coin cell
- Only three owner reviews on record
INSIZE 1156-300 – 0-12 inch range – 0.0005 inch and 0.01mm resolution – best for a shop that needs to move a measured height onto the workpiece rather than just read it. The driving wheel at the base is the distinguishing feature.
On most gages, the carriage has to be pushed or nudged. Here a hand wheel feeds the carriage continuously, so you can roll a set height down onto the work the way a height master does. For scribing a full line on a large plate, that turns a fiddly operation into a smooth one.
Resolution is 0.0005 inch and 0.01mm on a stainless steel construction, and the head carries pre-set plus and minus offsets, a hold function, and inch millimeter switching. Power comes from a CR2032 coin cell, and moving the digital unit turns the power on, so there is no button to hunt for with gloves on.
Data output and the quality record angle
The data output port is the real feature for anyone keeping records. With the optional SPC cable you can log readings into a quality system instead of writing them on a paper calendar. If you machine parts for other people, that record trail has actual value.
Optional accessories include a dial test indicator holder and a protractor clamp, so the same carriage can carry a dial indicator for squareness work or an angle reference for a scribed angle. That flexibility is unusual at this level.
Who should skip this electronic height gage
Skip it if your work is home shop hobby quantities. This is the most expensive pick in the list, and the money buys transfer capability and data logging that a one person shop rarely uses.
Also weigh the thin feedback record. Three reviews, all five stars, tells you current owners are happy and tells you almost nothing about how the wheel and the encoder behave after five years. Buy it for a specific workflow need, not as a general upgrade.
8. Mitutoyo 506-208 Vernier Height Gage 0-8 Inch – Best Mechanical Accuracy
Mitutoyo 506-208 Vernier Height Gauge, 0-8″ Range, 0.001″ Resolution, +/-0.001″ Accuracy, 1.4kg Mass
0-8 inch / 200mm range, 0.001 inch / 0.02mm resolution, plus or minus 0.001 inch accuracy
Pros
- Purely mechanical with no battery to fail
- Plus or minus 0.001 inch accuracy
- Dual inch and metric vernier graduations
- Fine adjustment carriage
- Compact 1.4 kg mass
Cons
- Vernier reading is slower and needs practice
- 8 inch range covers smaller machines only
- Very few owner reviews on record
Mitutoyo 506-208 – 0-8 inch range – 0.001 inch and 0.02mm resolution – best for machinists who want mechanical accuracy and no electronics at all. The accuracy rating of plus or minus 0.001 inch is the tightest in this roundup.
The vernier scale is graduated for both inches and metric, so one tool covers both unit systems with no conversion math. The hand operated slider has a fine adjustment carriage for settling on a value, and a carbide tipped scriber handles the marking side of the job. Mass is 1.4 kg, about 3 pounds, which is the lightest full height gage here and easy to reposition between a mill and a lathe.
There is nothing to charge, nothing to boot, and no zero that can be lost. In a dusty shop with metal chips everywhere, that reliability argument is stronger than most people expect. Mitutoyo is the name people reach for when the number has to be defensible, and on the forums that name carries weight in much the same way Starrett does.
Is a vernier height gage still worth buying?
Yes, if accuracy per dollar is the goal and you are comfortable reading a scale. The vernier system is mechanical, so the accuracy does not depend on a battery, a switch, or a solder joint. What it does depend on is condition and technique, and a worn or damaged scale will read poorly no matter what the spec sheet says.
It also gives you a second, independent way to check the electronic gages in this list. If two tools disagree, you want to know which one moved.
What to consider before buying
Reading a vernier is slower than reading an LCD, and the first week is genuinely frustrating. If you set up machines in a hurry every day, the time cost adds up.
The 8 inch range is the practical limit. That covers a small mill, a lathe cross slide, and most saw and router setups, but it will not reach up to a knee mill table or a jointer head. Owner feedback on this listing is also limited to three reviews, so the documented shop longevity is thin.

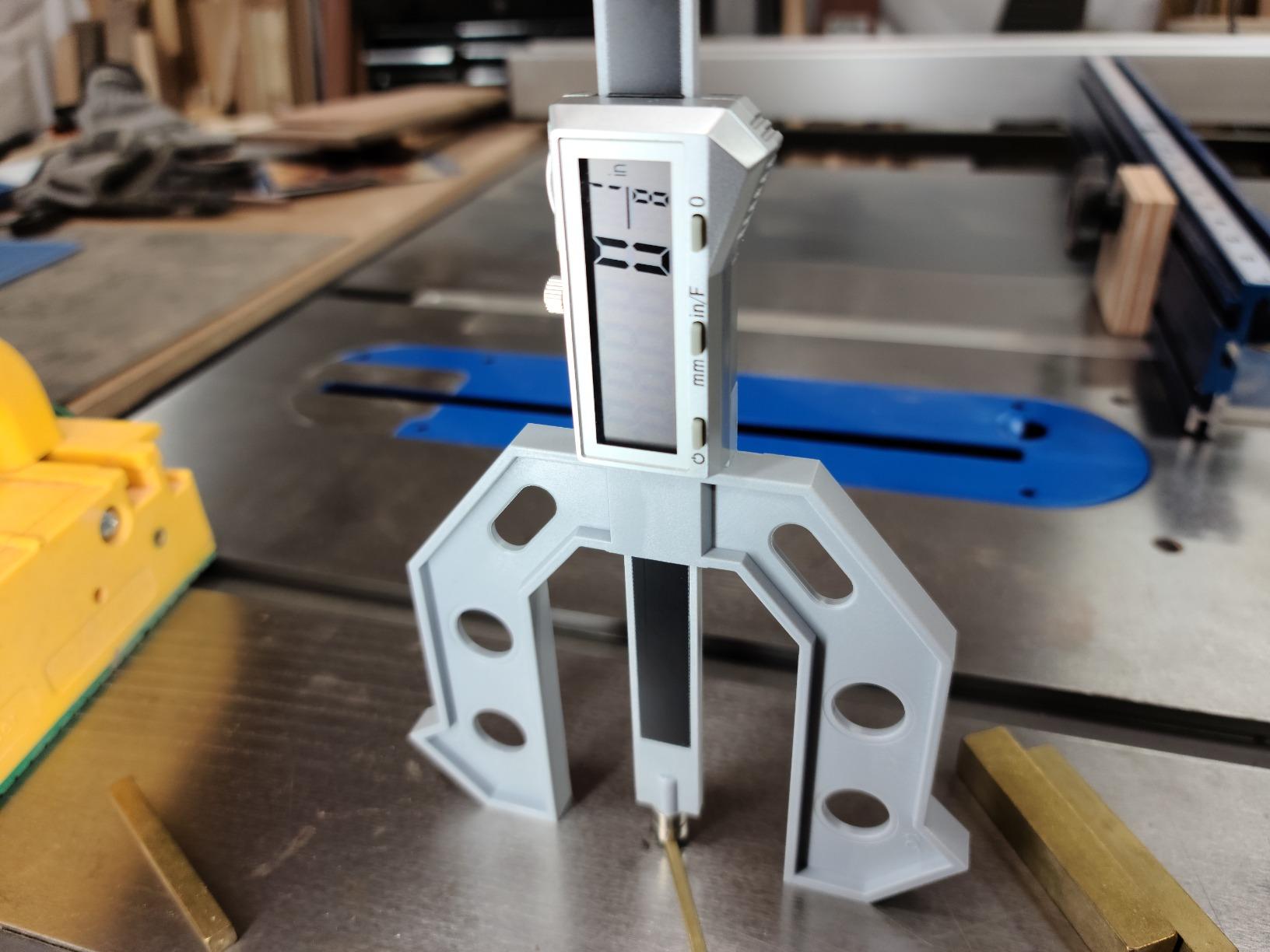

9. iGAGING 35-629 Electronic Height Gage with IP54 Sealing – Best for Dusty Shops
iGAGING 0-6″/150mm Electronic Digital Height Gage, Absolute Reading, in/mm/Fractional Reading, IP54 Protective Rating, Magnetic Base, #35-629
0-6 inch / 150mm range, 0.0005 inch and 0.01mm resolution, absolute encoding, IP54 rated
Pros
- IP54 sealing against dust
- chips and moisture
- Absolute encoding never loses the origin zero
- CNC machined magnetic base for flatness
- Carbide scriber and shop case included
- Inch
- metric and 128th readout
Cons
- 6 inch range limits it to smaller machines
- Magnetic base is useless on non-ferrous work
- Few reviews
- so durability feedback is thin
iGAGING 35-629 – 0-6 inch and 150mm range – 0.0005 inch resolution – best for a shop where dust, chips, and moisture are the concern. The IP54 rating is the reason this one separates from the entry model in the list.
Absolute encoding means the gage memorises its origin zero. On an incremental unit, moving the carriage far from where you zeroed, or a battery change, can leave you chasing the reference. An absolute encoder does not have that failure mode, which is precisely the drift problem that cheap electronics suffer from.
Resolution is 0.0005 inch, 0.01mm, and down to a 128th of an inch, with accuracy rated at 0.001 inch. The magnetic base is CNC machined for flatness, which matters more than it sounds, since a base that is not truly flat makes the reading depend on where you sit it. A carbide tipped scriber and a protective shop case are included.
What IP54 changes in a real shop
The rating covers ingress of dust and splashing moisture. That is not a laboratory claim, it is exactly the environment of a garage machine shop where coolant mist, cast iron dust, and metal chips all reach the beam and the carriage rails. Sealed electronics do not corrode, and corrosion is what kills cheap digital gages over a few years.
It also makes this a reasonable tool to leave on a mill table permanently rather than putting it in a drawer between jobs.
Where this iGAGING height gage falls short
Six inches of range is short, and that is the binding constraint. It works for router tables, small lathes, saw setups, and bench work, but it will not cover a knee mill table height.
The magnetic base also rules out aluminium, brass, and non-ferrous workpieces entirely, which is a real limitation if you cut those materials. Feedback is limited to nine reviews, so you are trusting the specification more than a long owner record.
10. iGAGING 3-in-1 Multi-Gauge – Best Budget Pick for Layout and Travel Checks
iGAGING 0-6″ DIGITAL MULTI-GAUGE FOR WOODWORKERS AND WELDERS – 3-IN-1 TOOL – DEPTH GAUGE + HEIGHT GAUGE + THICKNESS GAUGE
0-6 inch span, depth plus height plus thickness functions, super large LCD, zero set
Pros
- Most reviewed tool in this roundup at 491 reviews
- Three measuring functions in one body
- Large LCD that reads at a glance
- Light at 6.4 ounces and pocketable
- Zero set for relative measurements
Cons
- Not a machinist accuracy gage
- Polymer body is less rigid and less durable than steel
- No fine adjustment for an exact scribed height
iGAGING 35-0906 – 0-6 inch span – depth, height, and thickness in one body – best budget pick for checking machine travel and doing quick layout. It is the most heavily reviewed option in this roundup with 491 reviews, and owners are largely woodworkers and welders.
The super large LCD is genuinely easy to read, the body is 6.4 ounces, and it fits in a tool bag. The three in one design means the same tool checks depth on a drill press, height on a saw, and thickness on a plate, which covers an awful lot of setup work in a shop that is not doing precision metal layout.
Zero set gives you relative measurements, so you can zero on a reference surface and read the difference rather than an absolute number. That is the feature that makes a cheap tool more useful than it sounds.
Be clear about what it is not. This is a polymer body at 7.25 by 11.75 by 1.5 inches, so it is less rigid than a steel gage, and it has no fine adjustment. It is a travel checking and general layout tool, not a precision setup instrument, and the review data confirms owners use it that way.
The single largest block of owner feedback on this listing comes from woodworkers and welders, and it is broadly positive at 4.4 stars across 491 reviews. That tells you the tool does its stated job well. It does not tell you anything about machinist accuracy, because the buyer group never needed it.
One practical tip if you buy it: the zero set is what makes it useful. Zero it on your reference surface, and the display gives you the deviation rather than a raw number, which is easier to read while a machine is moving.
When this budget height gage is the right call
It is right when you are setting up a saw for rough cut heights, checking that a lathe or mill moves through its full range, or verifying a stock thickness before you start. Those are real jobs, and this tool does them for a fraction of what a dedicated gage costs.
It is also a decent first tool. Many people buy this, use it for a year, and only then realise they need something with a hardened base and a fine adjustment. Nothing wrong with that path.
Who should skip this multi-gauge
Skip it if your work involves scribing precise layout lines on steel or aluminium, or if you need a number that goes on a tolerance report. The body flex and the lack of fine adjustment both show up there.
And skip it if you own a hardened-base gage already. Carrying two cheap tools on a small bench is a false economy, since the second one only exists because the first one was not a gage.
How to Choose a Height Gage for Your Home Shop
The short version: buy the smallest range that covers your tallest setup, choose mechanical if you distrust electronics, choose electronic if you want a fast digital readout, and do not chase resolution below 0.0005 inch. Everything else is preference. Here is the longer version.
Range comes first. Measure the tallest distance you will ever need to check: the full travel of your knee mill table, the cross slide on your lathe, the height of a jointer head, the diameter of your largest workpiece. A six inch gage covers routers, bench work, and small lathes. Twelve inches is the practical minimum for a knee mill. Eighteen and twenty four inch versions exist for wide table travel, and they are the ones that get knocked over in a small garage, so plan storage before you buy.
Resolution is not accuracy. Resolution is the smallest digit the display shows. Accuracy is how close the reading is to the true value. A gage can show 0.0001 inch and still be off by 0.003, and a gage showing 0.001 inch can be dead on. Judge accuracy first, and treat resolution above 0.0005 inch as a feature you will never use in a home shop.
Know your gage types. A dial gage reads through a mechanical indicator with a resettable counter and needs no power, so it cannot lose its zero. An electronic or digital gage reads through an encoder, is fast, and offers inch and metric switching, but an incremental unit can drift or forget its origin. A vernier gage is purely mechanical with a graduated scale, accurate to roughly 0.001 inch and dependent on condition rather than design. A scribe or inside gage marks a line on the workpiece. A surface gage is a compact stand for holding an indicator for squareness and parallelism checks. A height master is a tall, expensive instrument for transferring a height onto large plate work, which is what the driving wheel on the INSIZE pick approximates.
Base stability decides whether your numbers repeat. A hand assembled quenched cast iron base, a ground and microlapped steel base, or a CNC machined magnetic base all hold a flat reference. A polymer body does not. If the base rocks or is hollow ground, the reading changes depending on where you set it, and no amount of resolution fixes that.
Check the scriber and the fine adjustment. A carbide tipped scriber holds an edge on steel far longer than a hardened steel point, and every gage worth buying includes one or has replacements available. Fine adjustment, whether a thumb roll or a micro wheel, is what turns a two minute exact setting into a five minute one. Budget gages almost always omit it, and that omission is the most common reason owners complain.
Verify accuracy on day one. Before you trust any new gage, set it against a known reference. Zero it on a ground surface plate, raise the carriage to a gage block stack of a known height, and read. Repeat at several points across the range, not just at the top. Then lift the carriage, power it down if it is electronic, power it back up, and read again. A gage that passes that last test holds its zero. Forum consensus lines up with this: Home Shop Machinist users set height gages from a micrometer or caliper reference, and the recurring theme in machinist discussions is that repeatability against a known reference beats any spec claim. If you own a good micrometer, use it as the reference for every new gage you buy.
Know where diminishing returns start. In a home shop, 0.0005 inch resolution with honest accuracy is where the curve flattens. Going from 0.001 to 0.0005 inch is a real improvement. Going further costs a lot and changes almost no part you will make. One veteran machinist described hitting plus or minus 0.003 inch repeatably with a 1/100 inch scale and calipers alone, and argued that practice matters more than exotic tooling. That is a fair warning against buying a very expensive gage to solve a technique problem.
Do you need one at all? Yes, if you repeatedly set a fixed height: blade heights, router bit depth, drill press stops, quill depth, vise jaw height, or jointer and planer knife alignment. No, if you make one-off parts and already own good calipers, because calipers plus a machinist square will cover occasional work. Many beginners get along fine without a gage, and buying one later tells you what you actually need.
Frequently Asked Questions
What are the different types of height gauges?
The main types are dial, electronic or digital, and vernier. A dial gage reads through a mechanical indicator with a resettable counter and needs no power, so it cannot lose its zero. An electronic gage reads through an encoder, is fast, switches between inch and metric, and can drift or forget its origin unless it uses absolute encoding. A vernier gage is purely mechanical with a graduated scale, needs no battery, and depends on condition and technique for its accuracy. Scribe and inside gages focus on marking, surface gages hold an indicator for squareness and parallelism work, and height masters transfer a height onto large plate work.
What is the most accurate tool for measuring height?
It depends on the context. A coordinate measuring machine is the reference standard, and gage blocks stacked on a surface plate and read with a dial indicator come very close. A height gage sits one tier below that for practical setup work, and calipers cover portable spot checks. For a home machine shop, a gage accurate to 0.0005 inch is more than enough for essentially any machine you own.
What do machinists use to measure?
Machinists use calipers for portable dimensions, micrometers for precision diameters and depths, dial indicators for runout and squareness, bore gauges for internal diameters, and height gages for vertical setup. The height gage is the one that also marks: it transfers a known height onto the workpiece as a scribed line, which is why it belongs in a layout workflow rather than only an inspection one.
Is Starrett better than Mitutoyo?
Both are respected names, and the practical difference is the specific model rather than the badge. Starrett tends to be preferred for rugged shop tooling and dial instruments, while Mitutoyo is the name most often cited for instrument grade accuracy and mechanical precision. Machinist forum discussion reflects the same split, with Starrett micrometers and calipers favored for American shop work and Swiss indicators treated as hard to beat for sensitivity. For a home shop, either is acceptable, so pick on range, base, and features.
How accurate is a vernier height gauge?
A good vernier height gage is typically a 0.001 inch class instrument, around 0.02 to 0.05 mm. Its real accuracy depends more on condition, scale wear, and technique than on the design itself, since there is no battery and no electronics to degrade. That inability to lose its zero or fail is its enduring appeal in a low tech or dusty shop.
Do I need a height gage for my home shop?
You need one if you repeatedly set a fixed height, such as saw blade height, router bit depth, drill press stops, quill depth, or mill vise jaw height. If you only make one-off parts and already own good calipers and a machinist square, you can get along without one. Many beginners work for months before they find a real need for it, and buying one then means you know exactly which range and features you require.
Which Height Gage Should You Buy?
For most home machine shops, the iGaging 6 inch unit with the magnetic base is the best height gauge for the money, and it is the one I keep on the mill. If you want a mechanical readout that never loses its zero, take the Shars 12 inch dial. If your knee mill needs twelve inches of range, the Shars 12 inch electronic is the strongest all round buy, and the Starrett 6 inch is worth it when the name on the tool matters to your work.
Check it against a gage block on day one, keep spare batteries with whichever electronic gage you choose, and expect the first week with a vernier or a dial to be slower than you would like. The best height gauges for home machine shops in 2026 are the ones you actually verify, keep clean, and use every time you set a height instead of reaching for a tape measure.
