Most helping hands are sold to people holding a full-size circuit board. That is not the problem most of us have. The problem is a 0402 resistor that disappears under the iron tip, a pair of 30 AWG wires that slide out of the clips the second the tip touches them, or a bead of silver that rolls off the bench and into a keyboard. Finding the best helping hands for soldering small parts is a different job than finding a general board holder, and the specs that matter are narrower than most roundups admit.
I spent weeks putting ten of the most-reviewed helping hands through the same small-parts routine: tinning a twisted pair of fine wire, holding a 0603 capacitor by its body while a joint forms underneath, gripping a 3 mm bead for jewelry work, and clipping a stripped lead on a through-hole board. Those four jobs expose everything that matters. Base weight decides whether the workpiece moves when the iron lands. Arm count decides whether you can hold a board and two wires at the same time. Magnification decides whether you can see the part at all.
What follows is every pick in the roundup, plus the criteria I scored them on, the fixes that make cheap clips kinder to fine wire, and a short guide to matching lens power to the package in front of you. I also included one build option for people who would rather not buy at all, because the DIY route has a real following on r/AskElectronics and it holds tiny parts better than some tools in this list.
Table of Contents
What Is a Soldering Helping Hand?
A soldering helping hand, also called a third hand, is a bench tool with adjustable arms and alligator clips mounted on a weighted or magnetic base that grips your workpiece so you can solder with both hands free. One hand holds the iron, one feeds the solder, and nothing shifts at the moment the tip makes contact.
It is not the same as a soldering stand. A stand, or iron holder, is a parking spot that stops a hot iron rolling off the bench and gives the tip somewhere to rest between joints. A helping hand holds the part. A PCB vise holds a board so both hands are free, and a pair of tweezers holds a single loose component. On genuinely tiny work, tweezers plus a magnifier can beat a clip outright, because an alligator tooth will happily strip the insulation off a 32 AWG lead.
The honest limit of every tool here is grip on parts lighter than a grain of rice. A clip sized for a 10 AWG wire applies far more force than a 0402 pad needs, and force is what slides solder sideways and lifts pads off a board.
Top 3 Picks for Helping Hands for Soldering Small Parts (October 2026)
The three below cover the most common cases: a stable all-round station, a no-frills bench tool, and a four-arm option for multi-part jobs.
NEIKO 01902 Helping Hand…
- 2x lens on an adjustable arm
- Dual alligator clips on ball-joint arms
- Heavy cast-iron base
- Rated to 480 C
Pro’sKit 900-015 Helping Hands
- Two alligator clips
- Weighted metal base
- Multiple articulated joints
- Compact bench footprint
KOTTO 4-Arm Helping Hands
- Four 360-degree gooseneck arms
- Stainless steel alligator tips
- Rubber clamp covers
- Weighted base with rubber feet
How We Tested and Scored 10 Helping Hands
Every tool in this list was judged on the same six criteria, weighted toward what breaks small-parts work. No competitor in this search publishes a rubric, which is exactly why the picks often disagree.
Stability under heat, 30 percent. I set a joint, rested the iron tip on it, and watched whether the base crept or the arm sagged. This is the single biggest quality difference between these tools.
Holding points and grip quality, 20 percent. How many independent holding points, whether clips rotate freely, and whether the jaws damage small parts.
Magnification, 15 percent. Scored against the task, not the number on the box. A 2x lens is adequate for a 0603 and useless for a bare die.
Base stability, 15 percent. Mass, footprint, and whether rubber feet actually grip a bench mat or a wooden top.
Arm positioning, 10 percent. Whether an arm holds where you put it or drifts back to vertical on its own.
Build and durability, 10 percent. Metal gauge, joint hardware, and how the tool looks after a season of use.
Owners on r/soldering and r/diytubes describe the same failure in the same words: the workpiece shifts or the base creeps when the iron touches it. That complaint is why stability carries nearly a third of the score here.
Helping Hands for Soldering Small Parts in 2026
All ten tools, with the features that mattered most during small-parts testing. Prices change constantly, so use the buttons to check the current figure.
| Product | Specs | Action |
|---|---|---|
| NEIKO 01902 Helping Hand with Magnifier |
|
Check Latest Price |
| Pro’sKit 900-015 Helping Hands |
|
Check Latest Price |
| KOTTO 4-Arm Helping Hands |
|
Check Latest Price |
 Beileshi LED Magnifying Station |
|
Check Latest Price |
 RamPro Magnifier Helping Hand Stand |
|
Check Latest Price |
 LXIANGN 3.5X and 12X Station |
|
Check Latest Price |
 AORAEM Helping Hands Magnifier |
|
Check Latest Price |
 Weller WLACCHHB-02 Helping Hands |
|
Check Latest Price |

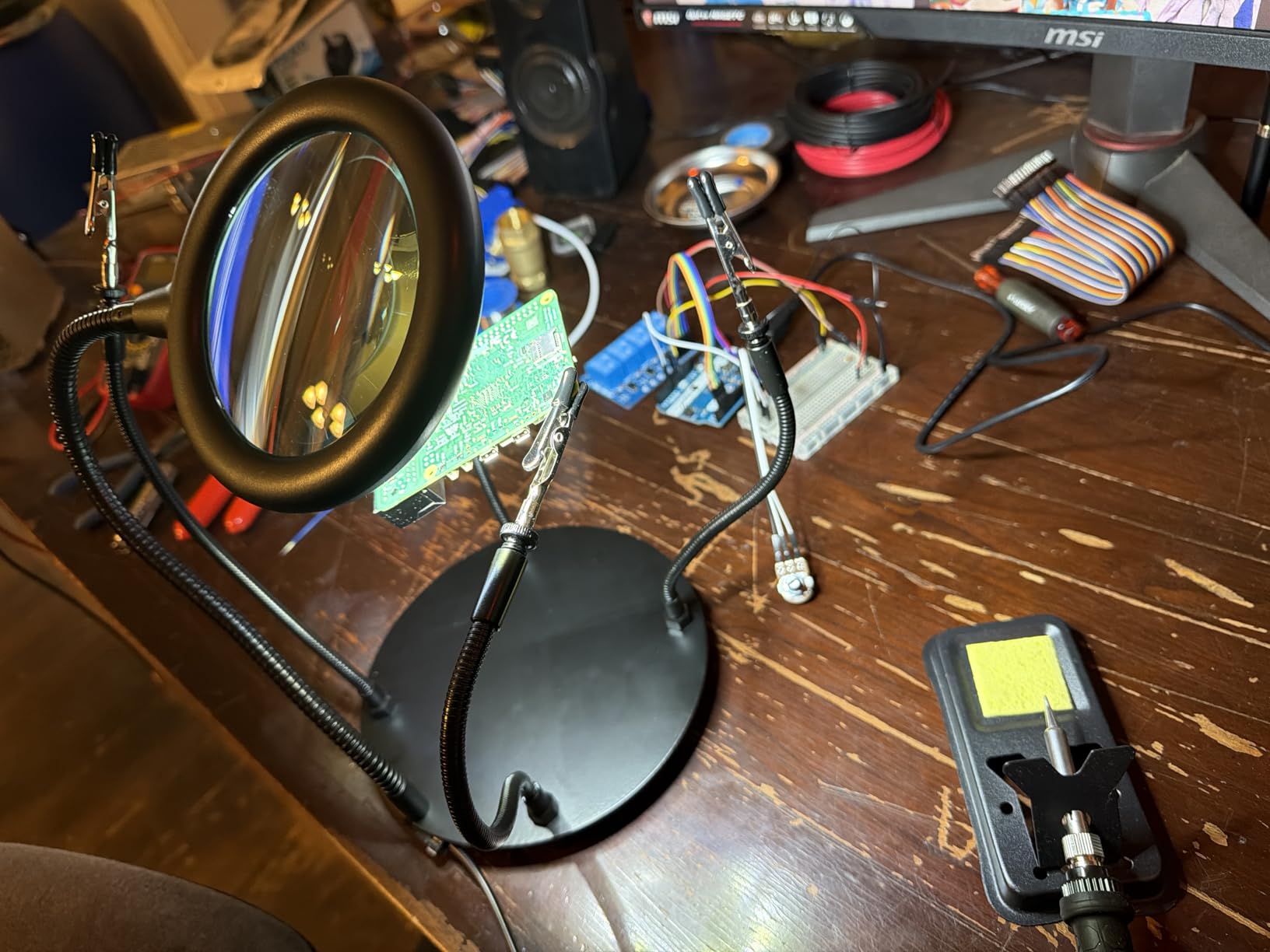

 XYK 4-Arm Station with 3X LED Lamp |
|
Check Latest Price |

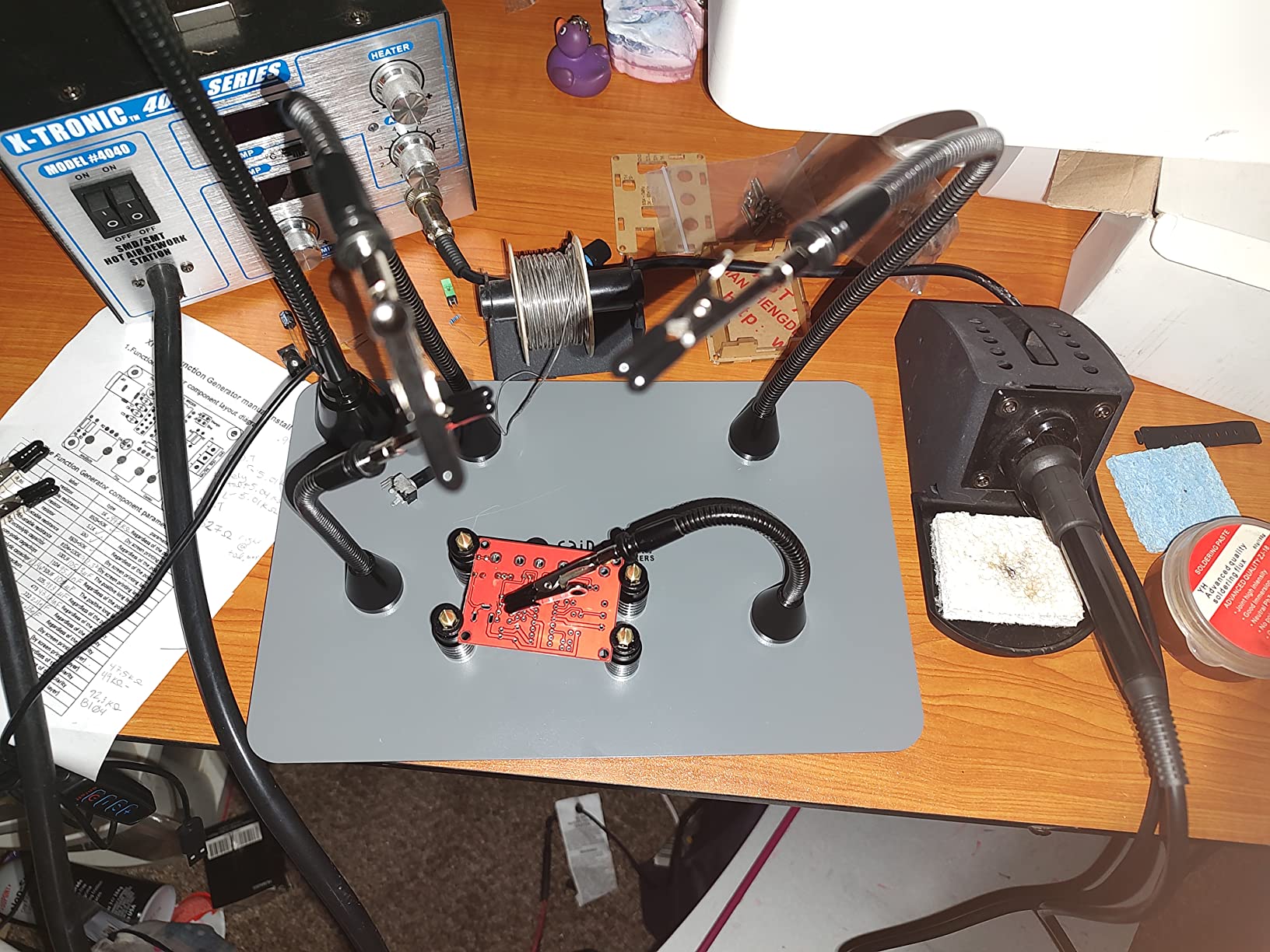

 SainSmart Magnetic Helping Hands Station |
|
Check Latest Price |

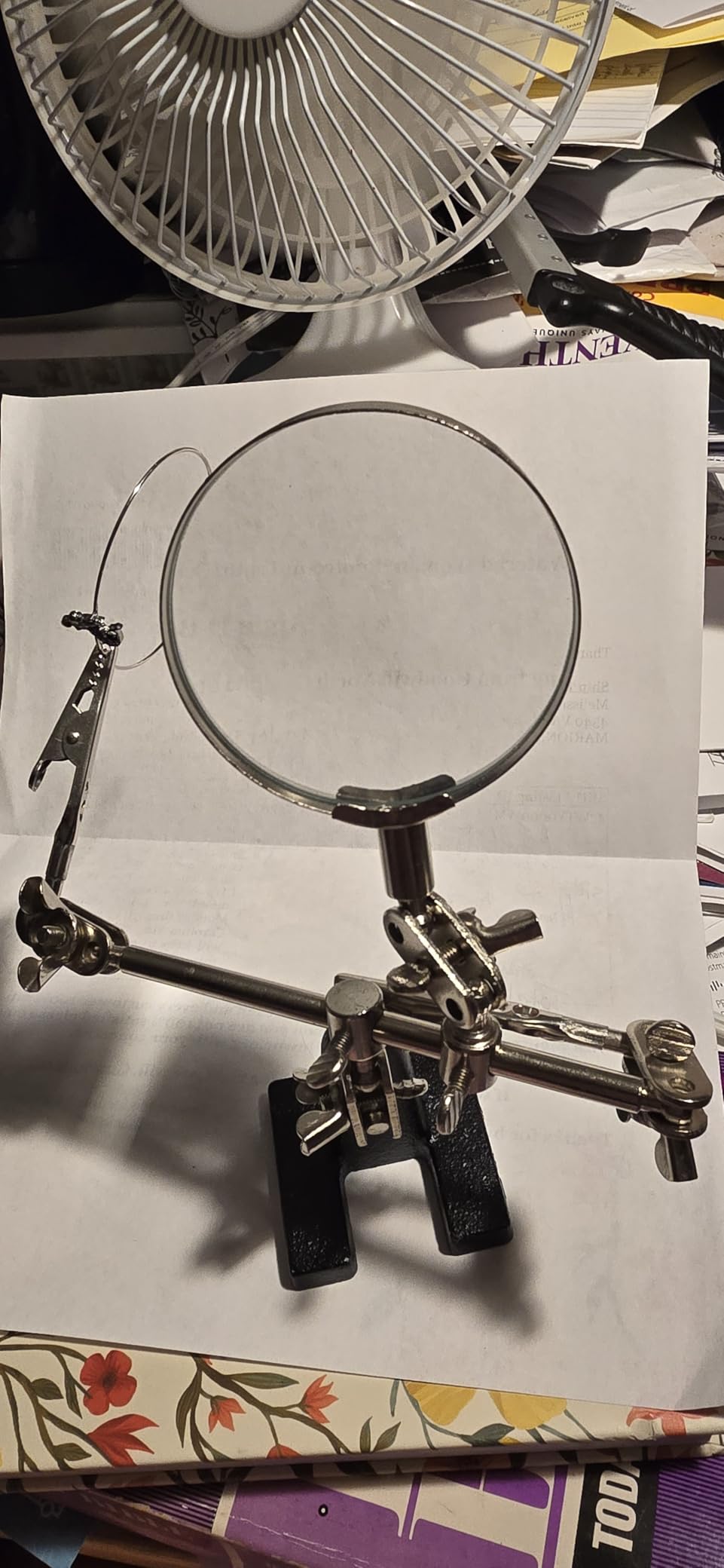

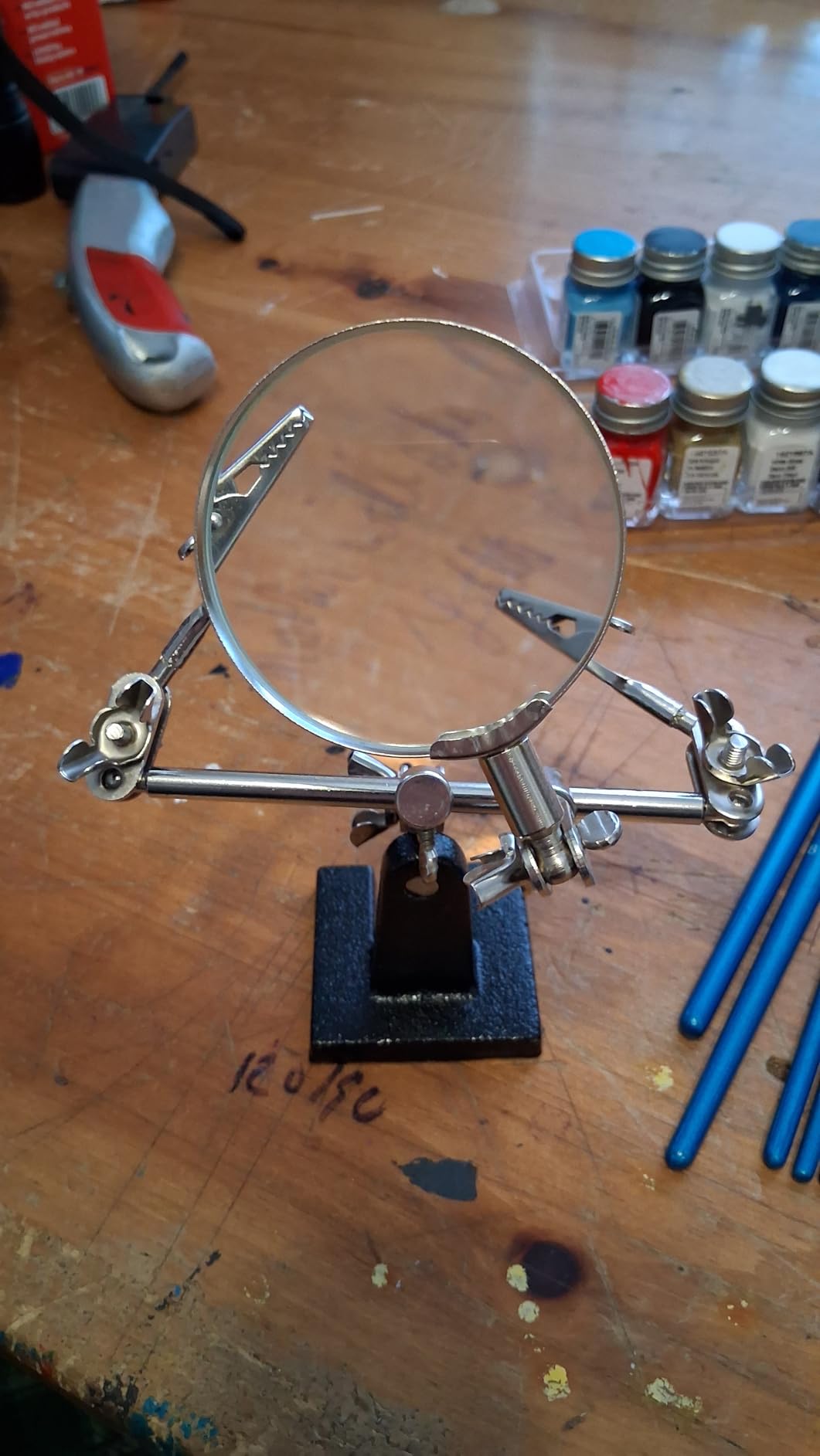

1. NEIKO 01902 Helping Hand with Magnifier – Best Overall for Small Parts
NEIKO 01902 Adjustable Helping Hand with Magnifying Glass, Third Hand Solder Aid, Soldering Wire Station Stand with Dual Alligator Clips and a Heavy Base, Beading & Jewelry Making Tools, Solder Holder
2x glass magnifier on adjustable arm
Dual alligator clips on ball-joint arms
Cast-iron base, 5 x 3 inch footprint
Rated to 480 C
Pros
- Cast-iron base stays put under iron pressure
- 2x lens is enough for 0603 parts and leaded joints
- Dual clips on ball joints reach awkward angles
- Very high review count means failure modes are well known
Cons
- 2x is too low for bare 0402 work
- Two holding points only
- Mirror arm can swing into the work area
This is the tool I keep reaching for, and it is the one I put on the bench of anyone who asks me where to start. The base is cast iron rather than plated steel, which matters more than it sounds: when the tip rests on a joint, mass decides whether the tool walks. On this one it does not walk.
For 0603 parts and leaded components, the 2x lens is genuinely useful rather than decorative. Bring a 0402 capacitor under it and you will still lean on a desk lamp, but for the huge middle of small parts work the lens earns its place.
The ball joints on both arms are the part I would point at first. Most two-armed tools mount clips on a single pivot that can only reach so far, while these reposition across a wide arc, so you can bring the second clip in on a wire that comes off the board at an angle.
Reviewers report two limits consistently. The lens arm has enough play to drift if you brush it while reaching for solder, and holding a board plus two leads at once means improvising, because two clips is two clips.
What it handles well on small parts
Tinning and re-tinning fine wire is where this tool is at its best. Grip the stripped end, bring the second clip under the joint, and the tip can sit on the conductor without the wire walking out of the jaws.
It also holds a 0603 capacitor and a small IC body at the right height for a 0603-scale job without any adapter work, which is why it edges out the no-lens options for anyone learning micro work.
When to skip it
Skip it if your work is 0402 and smaller on a bare board. At 2x you are guessing at pad edges, and a wrong guess means lifting a pad that costs more to repair than the tool cost.
Skip it if you routinely hold a board plus two or three wires. Two arms cannot do that job, and fighting the geometry wastes more time than the arm cost.

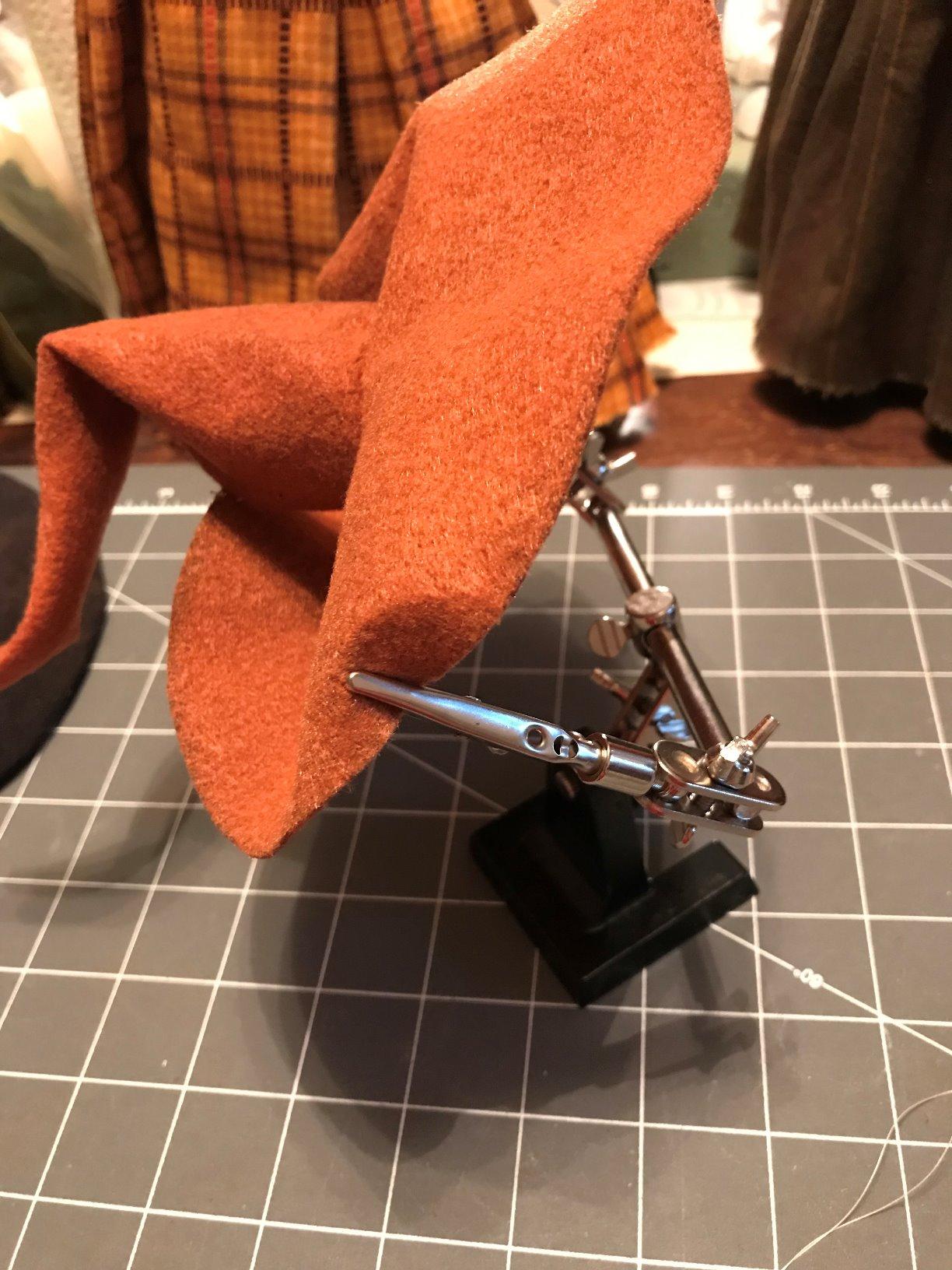

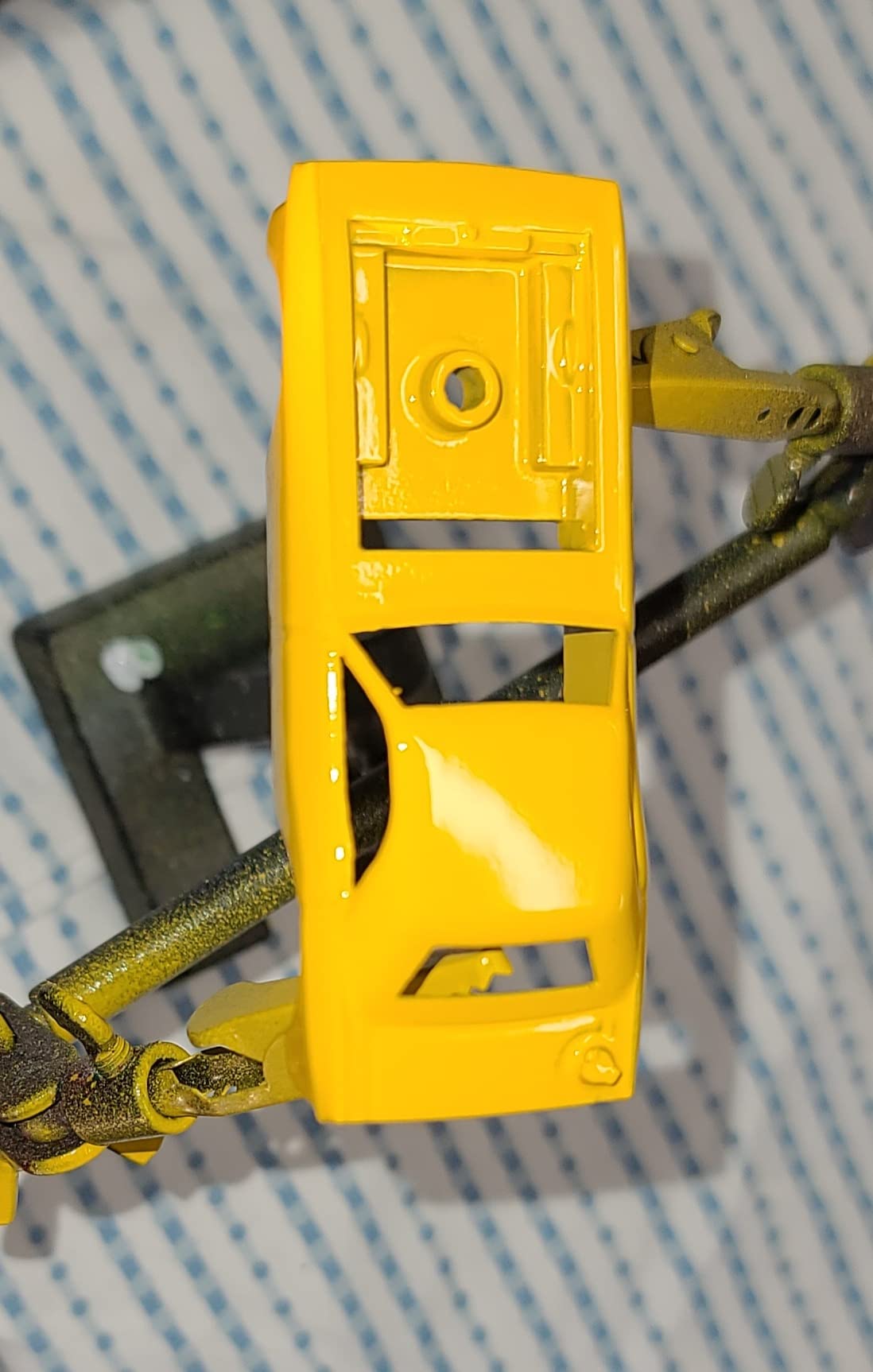

2. Pro’sKit 900-015 Helping Hands – Best No-Frills Bench Tool
Pro’sKit 900-015 Helping Hands Soldering Aid
Two alligator-style clips
Weighted base, 2.5 x 3.5 inch footprint
Articulated joints at multiple points
Arrives ready to use
Pros
- Weighted base stays steady without wobbling
- Arms adjust smoothly and hold position
- Firm clips grip small components
- Simple design with few joints to loosen
Cons
- No magnifying glass
- Clip tension can cut heat-softened insulation
- Arms are small for heavy loads
There is no lens here and I stopped missing one faster than I expected. If you already have a magnifier on an arm or a bench lamp with a lens, this is the tool that gets out of the way.
Reviewers call it an essential bench tool, and the reason is the base. It is small, it is weighted, and the arms articulate at more than one joint, so a fine wire can be held at a working angle without the clip hovering out of position.
For small parts the honest caveat is the clip. The jaw pressure is firm enough to hold a stripped lead, and firm enough to mark the insulation if you leave it clamped while the wire is still hot from the iron. Two-second fix, covered later in this guide.
Some users describe the sheet-metal joints as lighter than heavier models, and that shows if you clip a thick bundle of wire onto one arm and lean on it. For individual small parts it feels solid.
What it handles well on small parts
Fine wire tinning and short splices, where you need one clip on the conductor and one on the joint. The arms are stiff enough at working load to stay where you put them.
It is also the easiest of the ten to set up, so it works well as a first soldering bench tool before you decide how much magnification you actually need.
When to skip it
Skip it if you have no other way to see. There is no lighting and no lens in the box, and small parts are exactly the work where you need both.
Skip it for any joint where the workpiece must not move at all while the tip is on it, because two clip jaws and a small base give you less margin than a cast-iron tool with a wider stance.

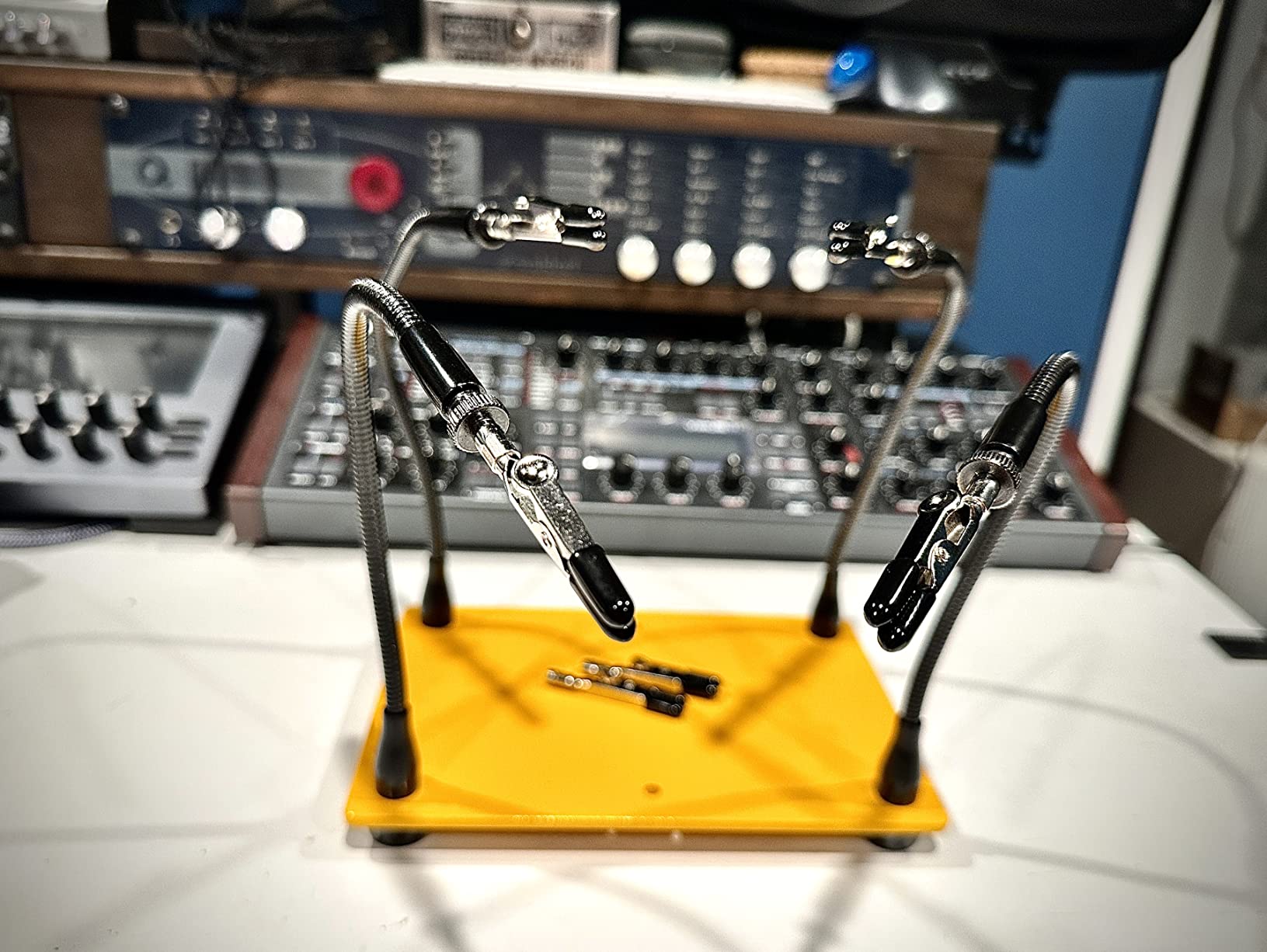

3. KOTTO 4-Arm Helping Hands – Best for Multi-Part Small Work
KOTTO Helping Hands Soldering,Third Hand Soldering Tool PCB Holder 4 Arms
Four adjustable gooseneck arms
Stainless steel 360-degree alligator tips
Rubber clamp covers included
Weighted base, 1.26 kg
Pros
- Four arms hold a board and two wires at once
- Weighted base stays put and catches stray solder
- Rubber clamp covers protect boards and skin
- Clips rotate 360 degrees and lock
Cons
- Gooseneck arms spring back toward upright
- No magnifier on this version
- Base has spare holes that need add-ons
Four arms is the number that changes what you can build in one go. On a small repair I can hold the board, the incoming lead, and the spare jumper at the same time, which removes the stop-and-reposition cycle that eats micro-work time.
Owners frequently report that this replaced a smaller magnifier-style helping hand outright. The base is weighted, the clips are rubber-sleeved, and the arm count means you stop improvising with a third hand made of bent wire.
The trade is arm memory. Gooseneck arms have a spring memory and drift back toward upright, so you position the last arm last, and you do not touch the other three afterwards. Under an iron tip, the memorized curve is a small but real movement.
One reviewer reported a stripped thread on an arm joint straight out of the box. Check every joint screw before your first job, not during one.
What it handles well on small parts
Multi-lead rework. Clipping two wires to a header, soldering a small IC with leads on both sides, or holding a bead and a wire together while the solder flows.
The rubber clamp covers are worth more here than on a two-arm tool, because with four clips you are four times as likely to have a tooth resting on something delicate.
When to skip it
Skip it if you work alone on single joints and value desk space. Four arms plus a weighted base occupy real bench area for a capability you will not use every day.
Skip it if you need magnification. This version has no lens, so a separate magnifier is part of the cost.

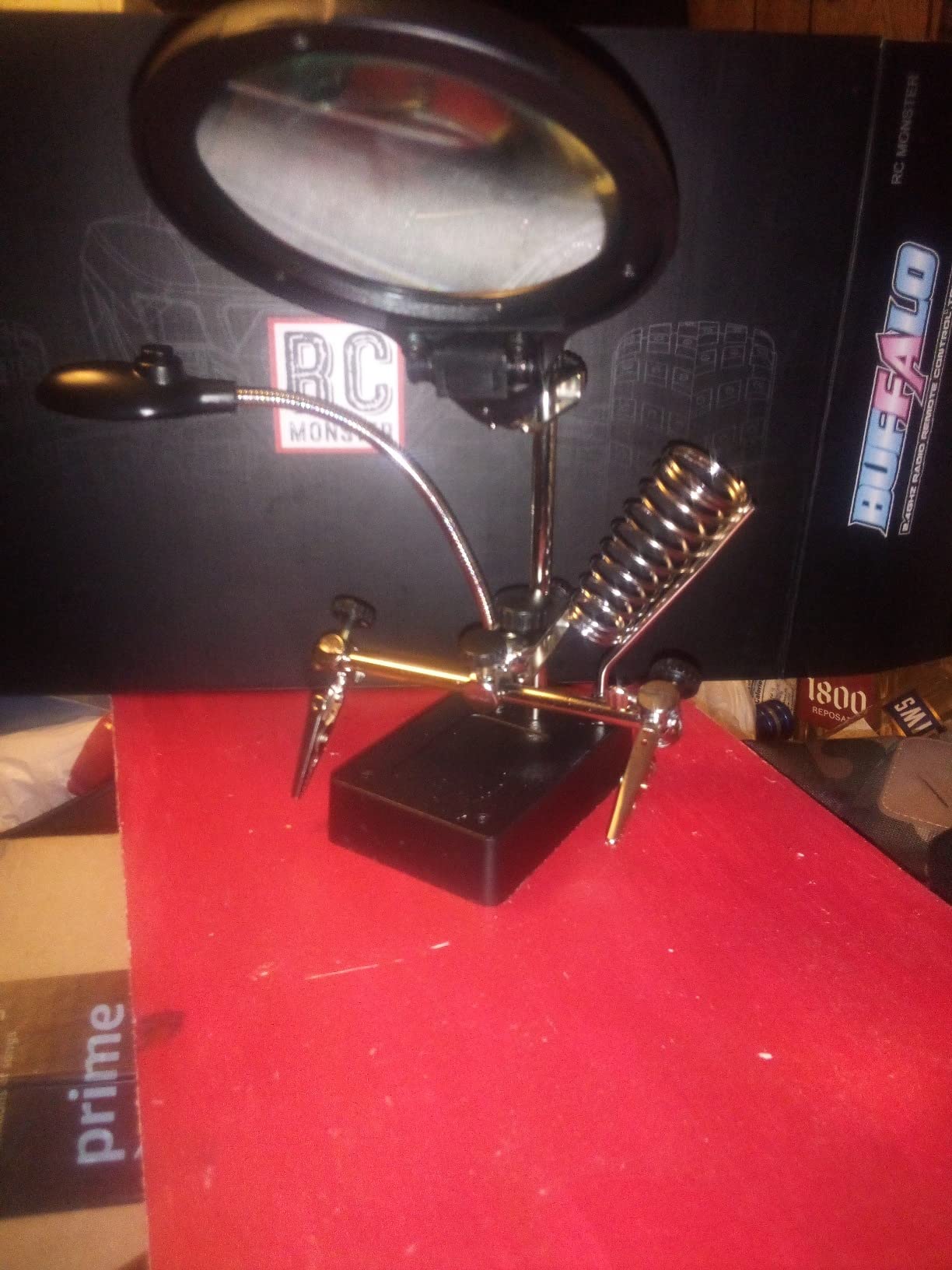

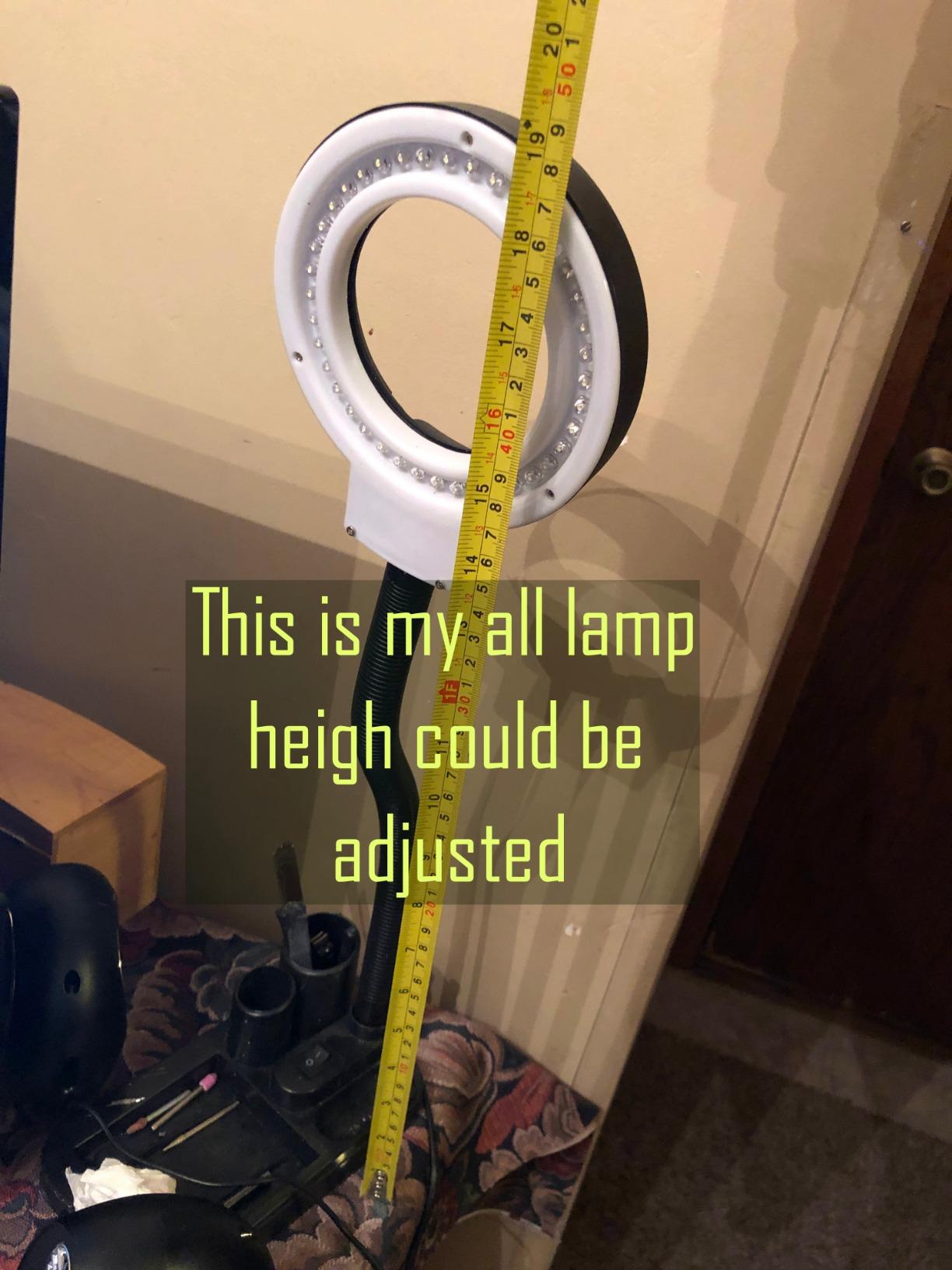

4. Beileshi LED Magnifying Station – Best Multi-Power Magnification
LED-lit Magnifying Glass Helping Hands Soldering Station, Alligator Clips
2.5x, 7.5x and 10x lenses
Dual LED lights on 360-degree arms
Battery or AC adapter powered
Alloy alligator clips
Pros
- Three magnification levels cover general and close work
- Lights run from 3 AA batteries or the adapter
- Modular design lets you strip it back to one lens
- Clips grip without marking PCBs
Cons
- Frame feels flimsy and top-heavy
- Joint screws do not tighten firmly so arms sag
- Only one auxiliary lens mounts at a time
- Large lens has no cover
Lens choice is the reason to pick this one. Three powers means you can work a 0603 at 2.5x for orientation, then swing the 10x lens in for the actual joint, without leaning over a separate magnifier.
Having a light on the same arm as the lens changes the work more than the magnification does. Shadows from your hand were the thing I fought most when working close, and dual LEDs on adjustable arms largely removed that problem.
Reviewers also value the modular layout. You can pull the lenses off and run it as a light-only stand, or add a second helping-hand set when the job needs more holding points.
The weakness is honest and repeated: the frame is light and the joints do not hold tension well. Arms sag under load, and a top-heavy station with a 10x lens above it is easy to knock. Set it where it cannot be brushed.
What it handles well on small parts
Inspection and orientation on parts too small to place confidently. This is the pick for a 10x look at a pad or a via before you commit the iron, and for SMD work on nano-scale boards.
Light-duty holding. Two alloy clips are fine for a wire end or a small component, and the anti-reflective optics reduce the eye fatigue that comes with long sessions.
When to skip it
Skip it if your work demands a still base under iron pressure. Sag and creep show up exactly when the tip rests on a joint, which is the moment you cannot afford movement.
Skip it if bench space or tidiness matters. The lens arms swing wide, and the large lens has no included cover, so it collects dust and needs a lens cloth habit.

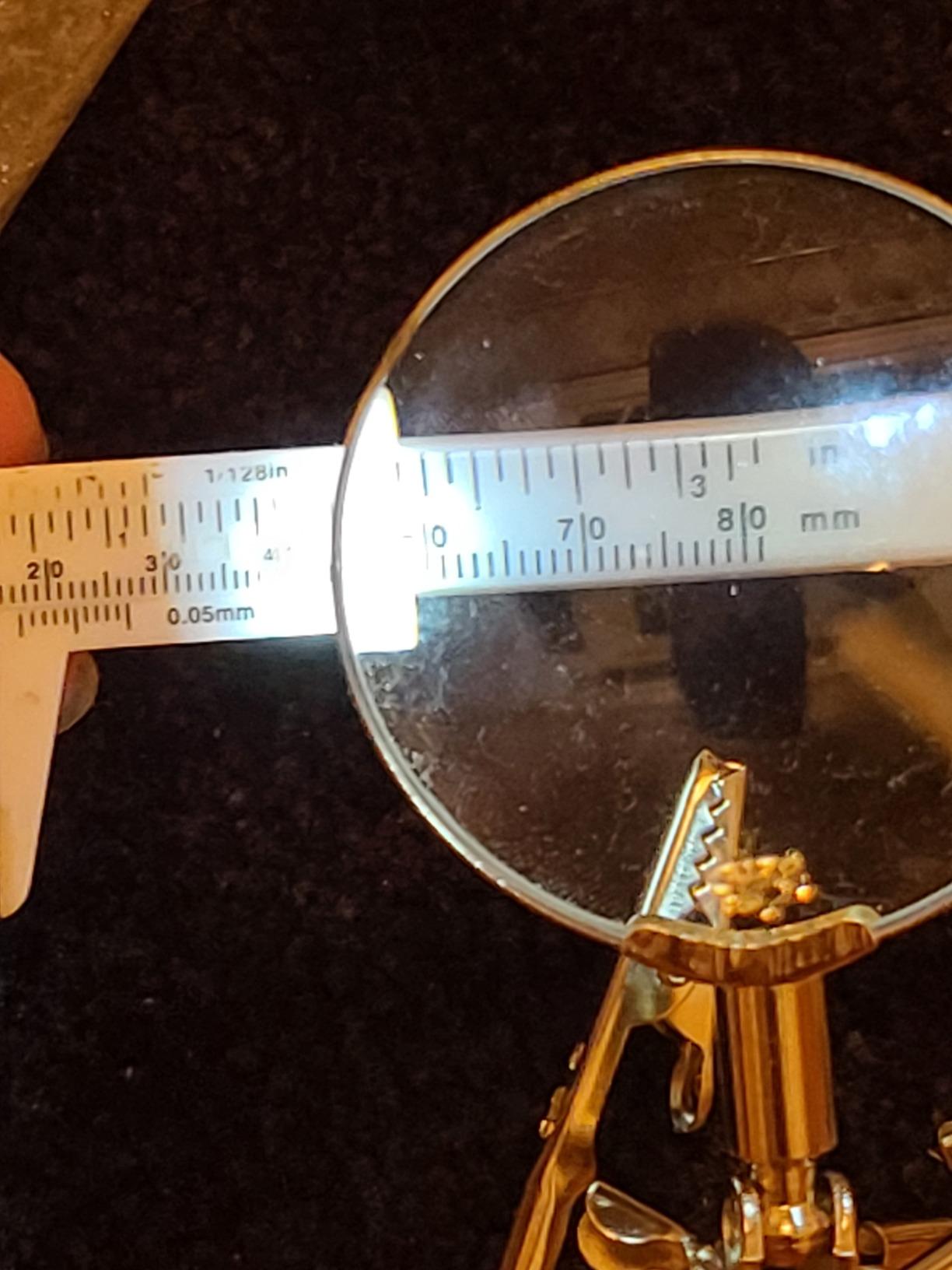

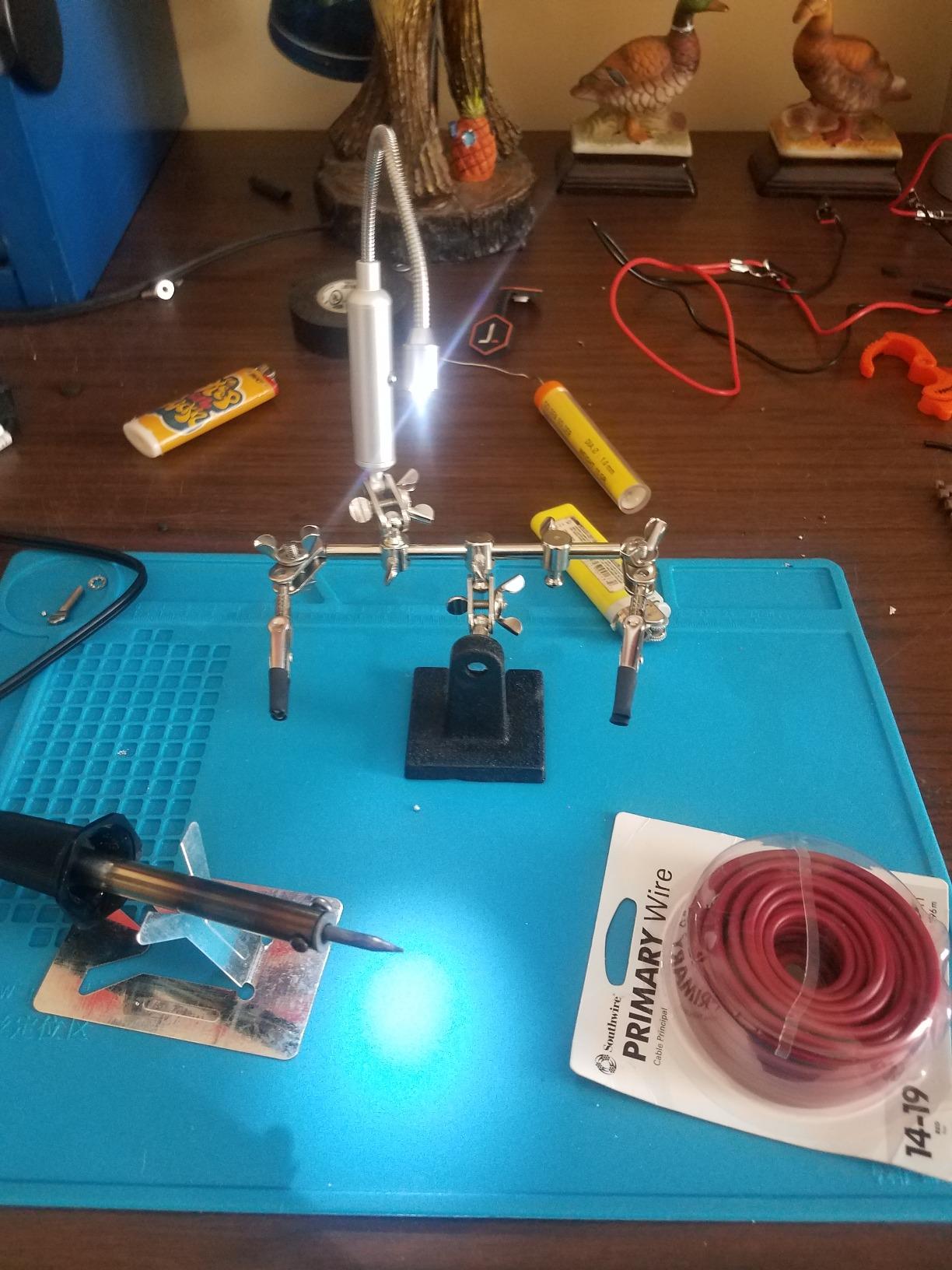

5. RamPro Helping Hand Magnifier Stand – Best for Jewelry, Beads and Craft Work
RamPro – Helping Hand Magnifier Glass Stand – Magnifying Lens, Perfect for Soldering, Crafting & Inspecting Micro Objects
3x glass lens with retractable second lens
Two 2 inch alligator clips
Cast-iron base, 12.5 oz
Five ball-joint twist locks
Pros
- Wide field of view covers a whole workpiece
- Retractable high-power lens drops in and out
- Battery LED for close detail
- Cast-iron base resists rust
Cons
- Modest magnification for real SMD work
- Wide footprint takes bench space
- LED version needs batteries
- Adjustment points can feel stiff
A wide lens is the feature that matters here, and it is the reason this one suits non-electronics work. When you are holding a pendant, a beaded loop, or a watch part, you need the whole piece in frame rather than a circle a few millimetres across.
The retractable secondary lens is the clever part. It stays out of the way while you position the work, then swings in when you need the closer look for a jump ring or a solder seam.
Reviewers value the cast-iron stability and the rotatable design, and the middle rating reflects a fair split: people who wanted a stronger lens for micro work feel 3x is modest, while people using it for crafts and inspection are glad it shows the whole piece.
Buyers also note the footprint. A 12 inch by 10.25 inch base is generous, and on a crowded bench you will be rearranging your setup rather than reaching for a tool.
What it handles well on small parts
Beads, jump rings, findings, and short lengths of jewelry wire. Two inch clips take a beaded strand without crushing it, and the wide view lets you watch the whole run of solder rather than one point.
Watch repair and miniature painting, where you need steady holding plus a comfortable working distance more than raw magnification.
When to skip it
Skip it for surface-mount electronics. 3x will not resolve a 0402 pad edge, and no amount of steady holding fixes a part you cannot see.
Skip it if your bench is small, because the base claims a large share of it permanently.

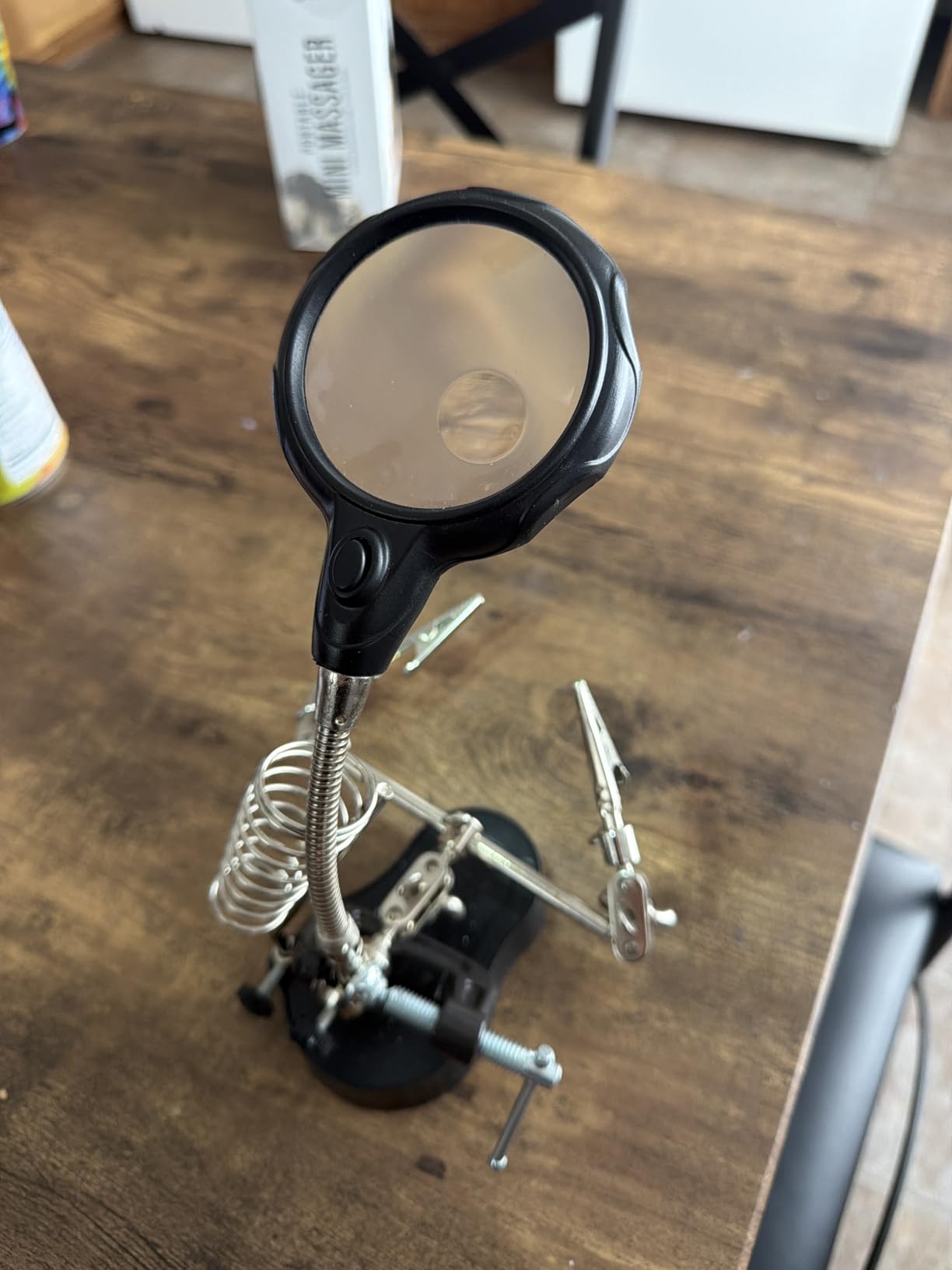

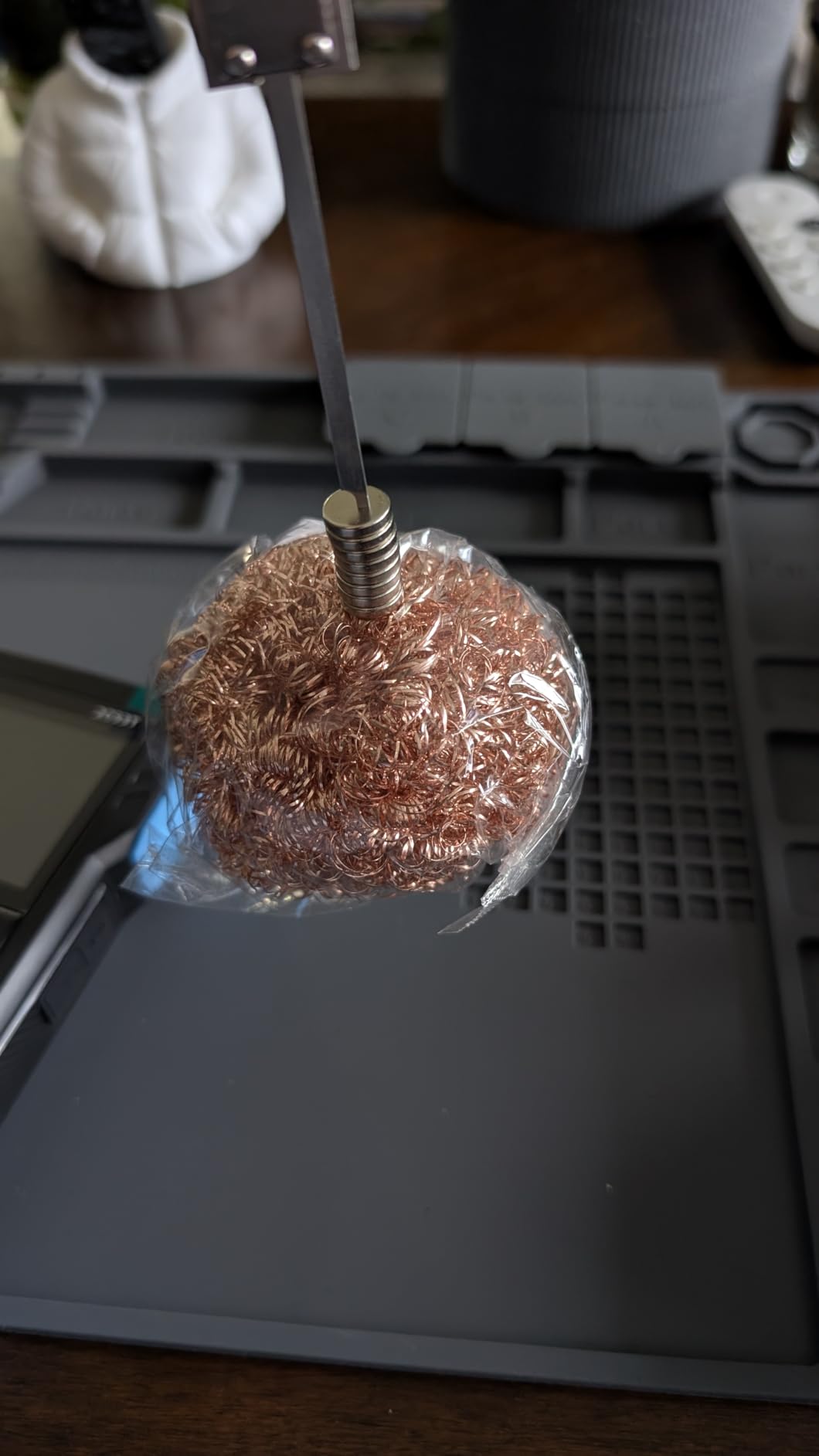

6. LXIANGN 3.5X and 12X Station – Best 12x Close-Up for Tight Work
3.5X12X Helping Hands Soldering Station with LED Light & Alligator Clips
3.5x and 12x optical glass lenses
Dual flexible LED lights on 360-degree arms
Steel-weighted non-slip base
338 g, 5.2 x 4.69 inch footprint
Pros
- 12x lens resolves parts that 4x cannot
- Dual flexible lights give shadow-free illumination
- Compact steel-weighted base resists wobble
- Multi-joint clips rotate to any angle
Cons
- Acrylic lens scratches more easily than glass
- LED lighting needs 3 AAA batteries not included
- Metal hose arms have limited rigidity
- Manual is Chinese and English only
This is the one to reach for when the part is smaller than the tip. A 12x lens is the difference between placing a solder blob and placing it on the pad, and on 0402 or dense fine-pitch work that difference decides whether the joint survives.
The dual flexible LED arms are genuinely well positioned for close work. Both lights can be aimed from different sides, which removes the shadow your hand casts over the very spot you are looking at.
The compromise is the lens material. Acrylic is lighter and cheaper than glass but scratches more readily, and once a 12x lens is scratched you lose the clarity you bought it for. Handle it by the frame.
Metal hose arms give good reach with limited rigidity. Fine for positioning a bead or a short wire; noticeable if you clip something with real weight and lean on the tip.
What it handles well on small parts
Inspection and soldering of 0402 and 0603 parts, dense connector pins, and any joint where the target is a specific pad rather than a general area.
Watchmaking, diamond painting, and other close-detail hobby work where the part is small, flat, and lit poorly by a normal desk lamp.
When to skip it
Skip it if you need a heavy base for stability, because at 338 g this is one of the lighter tools here and it moves if you brush the arm.
Skip it if the lens is going to be handled constantly. Acrylic plus a 12x power is a combination that shows wear quickly in a shared workshop.

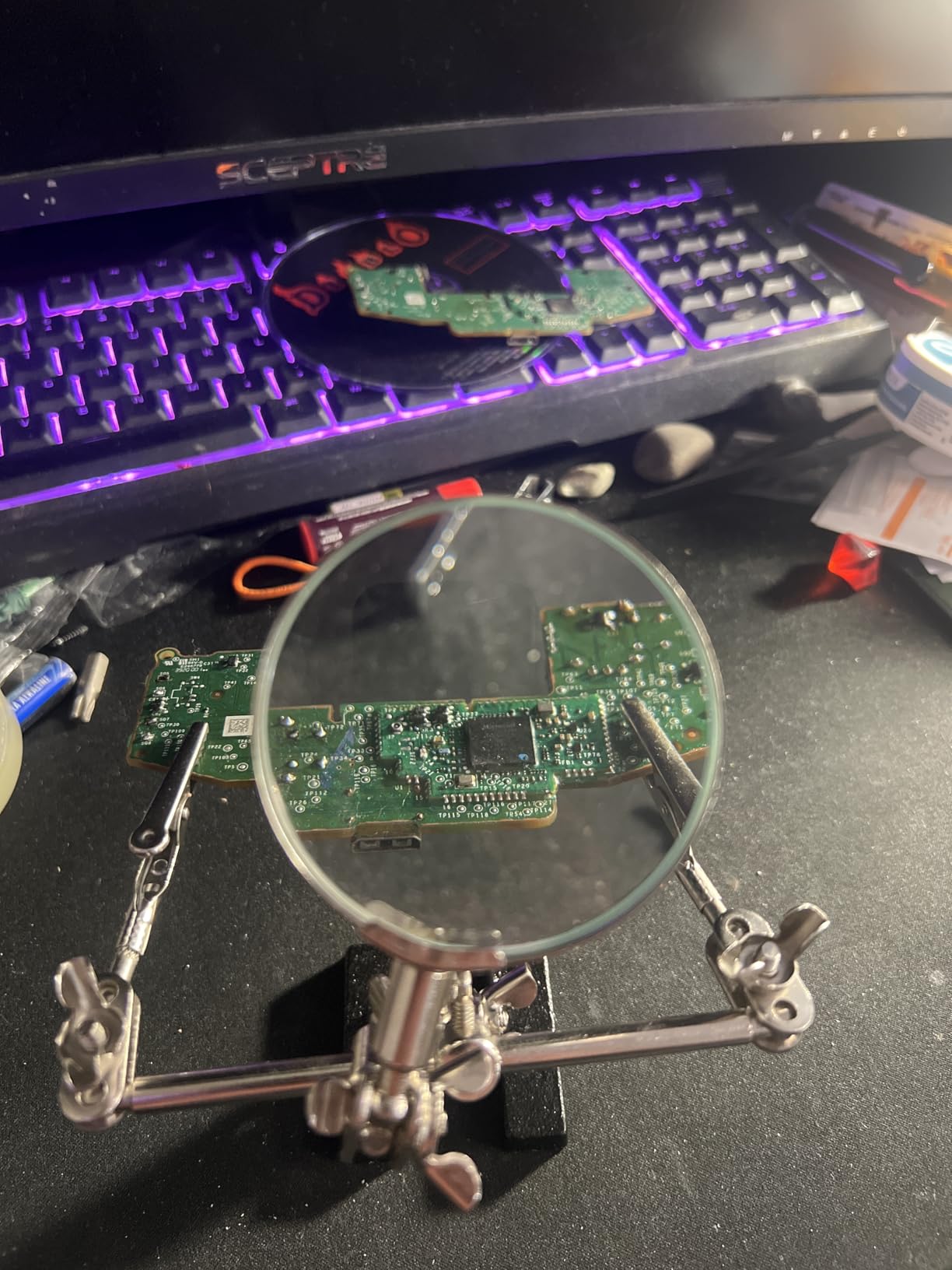

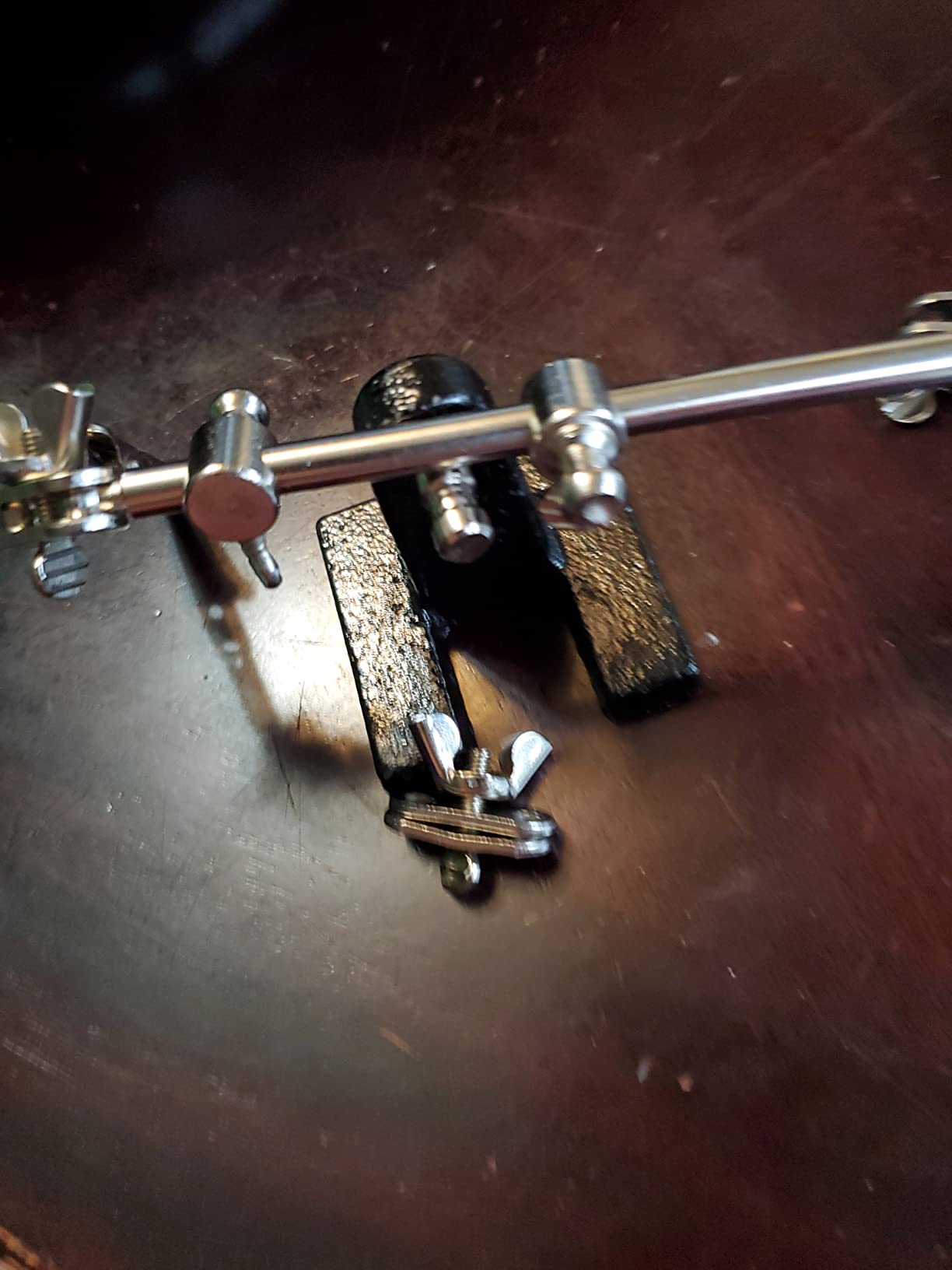

7. AORAEM Helping Hands Magnifier – Best Budget Pick for Light Duty
AORAEM Helping Hands Magnifier with Dual Adjustable Alligator Clips
2.5x glass lens, 63 mm diameter
Two alligator clips on 4-way swivels
Cast-iron base, 10.88 oz
No battery required
Pros
- Compact enough for a small bench
- Clips hold position without sliding
- Arms are stiff once set
- Glass lens at a low price point
Cons
- Light base tips under heavier items
- Stiff screws make joints awkward
- 2.5x is low for very small components
- Grip struggles with large objects
This is the tool for occasional work. If you solder a board every few weeks and want a magnifier and two clips within reach without rearranging the bench, the compact footprint is the actual feature you are paying for.
Glass rather than acrylic at this level is a pleasant surprise, and 63 mm across is wide enough to see a small board section rather than a single pad.
Buyers describe clips that grip without sliding down and arms that hold position once tightened. Several also mount the base to a board when they need more than light holding, which is worth knowing before you buy.
The limitation repeats in reviews: the base is light. It tips if you hold something heavy, and the grip is not designed for full guitar cords or large plugs, which is exactly where small-parts users start and stop.
What it handles well on small parts
Holding a small component or a short wire while you make one clean joint. Two clips and a 2.5x lens are enough for through-hole work on a small board and for 0603-scale parts under a steady light.
A dorm-room or apartment bench where space is the constraint and the work is light. The two 4-way swivels give more positioning freedom than a two-arm tool with fixed pivots.
When to skip it
Skip it if you will clip a partly soldered board, a battery pack, or anything with real mass. The base is not built for that load and the fix is bolting it down, which costs more than a heavier tool.
Skip it for 0402 work, where 2.5x leaves you estimating.

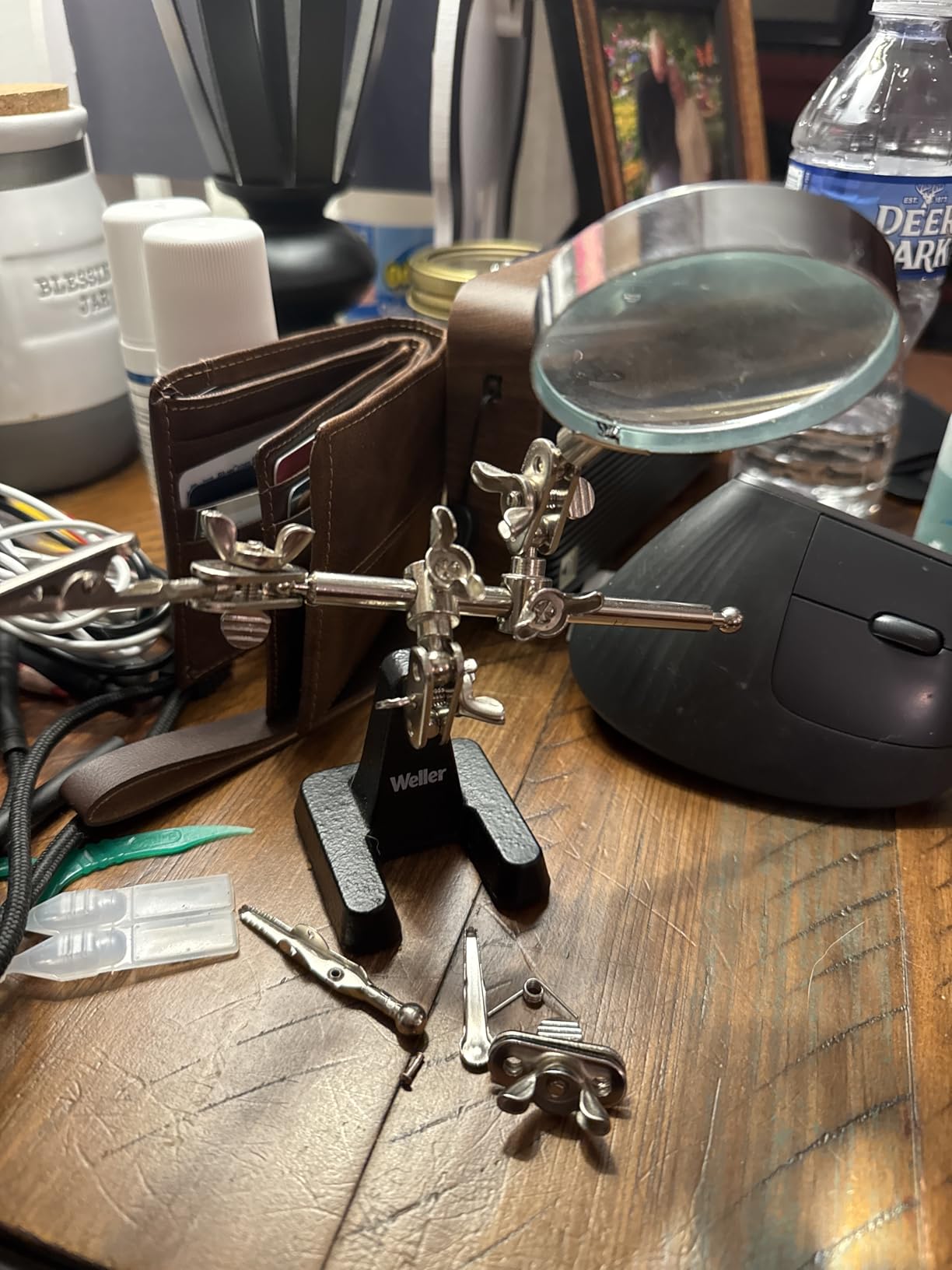

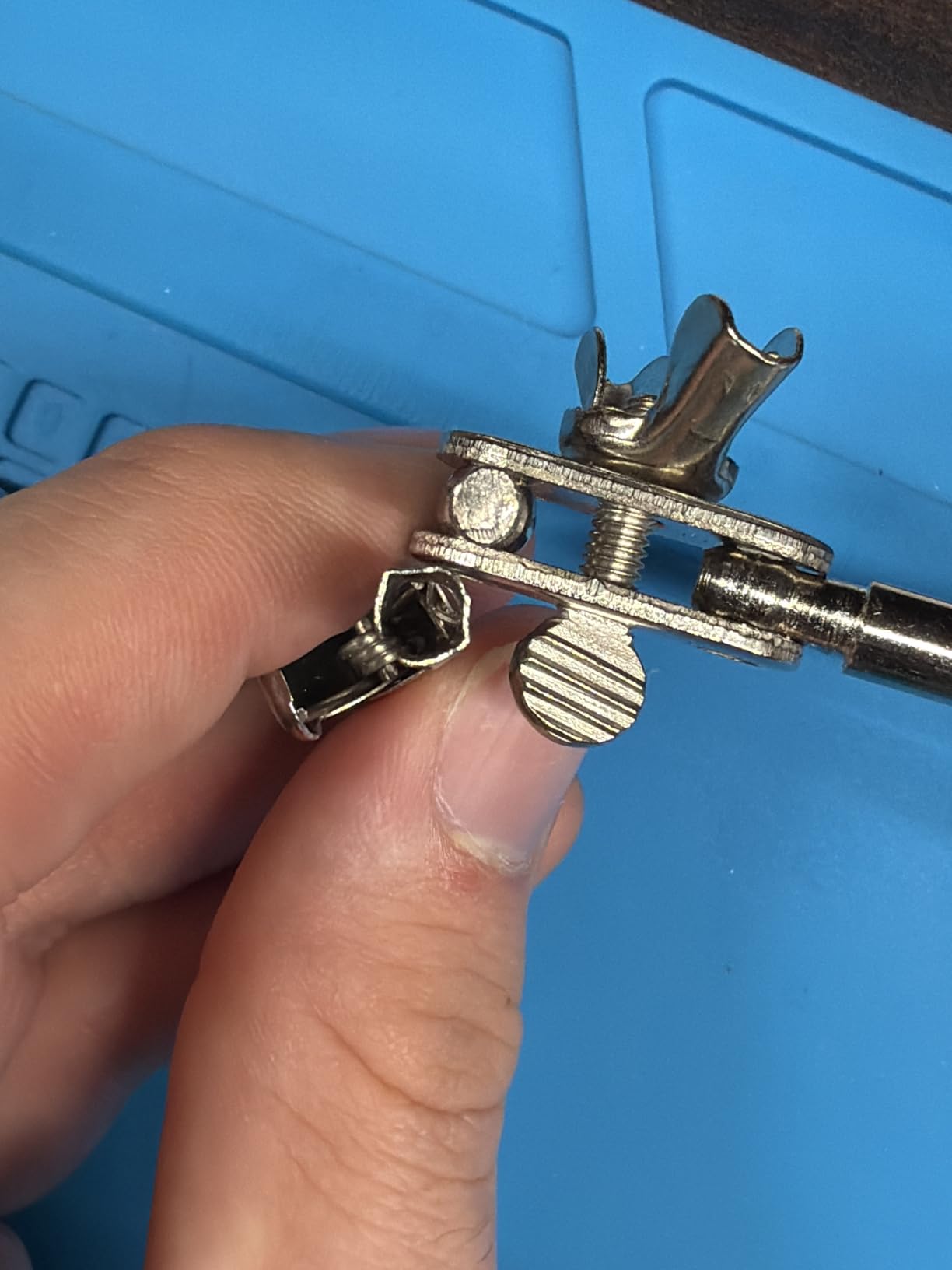

8. Weller WLACCHHB-02 Helping Hands with Magnifier – Best Branded Option
Weller Genuine Helping Hands with Magnifier | WLACCHHB-02
4x magnifying glass
Two alligator clamps on 4-way swivels
0.43 kg build
Manufacturer warranty included
Pros
- Recognised soldering-tool brand with warranty backing
- 4x lens covers 0603 and leaded work well
- Swivels allow precise clip placement
- Bulky build stays planted
Cons
- Only 4x magnification
- Two clips limit multi-part jobs
- Heavier and larger than plastic rivals
Buying from an established tool brand matters here for one reason: replacement. A helping hand gets dropped, clipped, and heated, and a brand with real service will replace a bent arm rather than leave you buying a whole new tool.
4x is a sensible middle. It is more than enough for 0603 parts and leaded joints, and it will not pretend to resolve a bare die.
Reviewers single out the 4-way swivels as the feature that makes positioning quick, and the 0.43 kg build as the reason it stays put when the tip lands.
The honest limit is the same one shared by every two-clip design: one board, one wire. Multi-part jobs mean a second tool or a compromise, and the bulk is noticeable next to the compact plastic options.
What it handles well on small parts
Through-hole board work, wire termination, and general repair. The 4x lens covers the range of work most people actually do, without the eye strain of a high-power lens.
A shared workshop or a bench that gets used hard, where durability and a warranty outweigh saving bench space.
When to skip it
Skip it for fine-pitch and 0402 work, where you need 10x or more and a different tool entirely.
Skip it if holding three or more things at once is routine for you. Two clips will not do that job, and this is a heavier tool to carry around the bench.

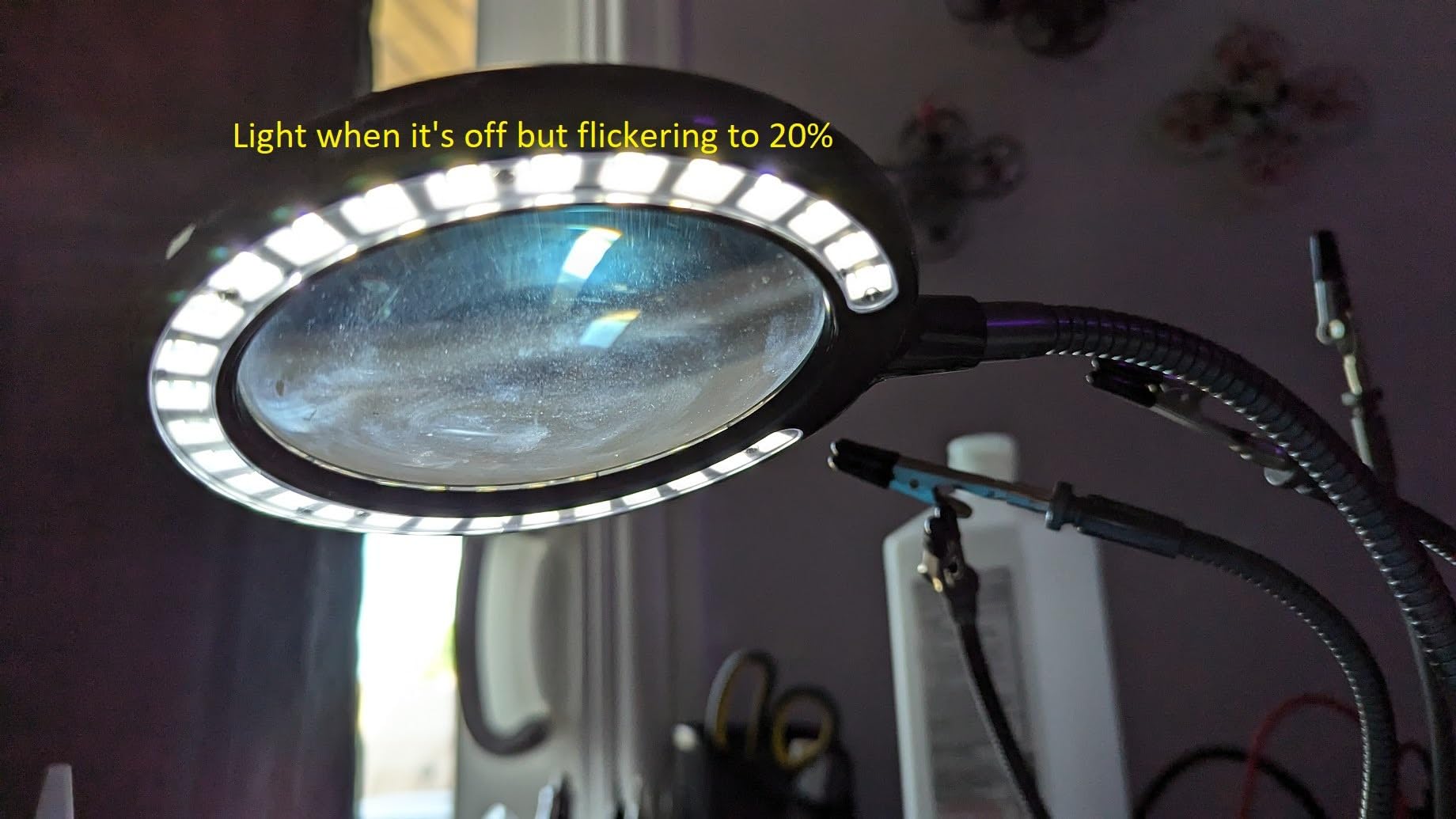

9. XYK 4-Arm Station with 3X LED Lamp – Best Dimmable Lighting
XYK Helping Hands Soldering Station with 3X Magnifying Glass with light, 4 Flexible Helping Hand Arms Magnifier and Third Hand Soldering Tool for Electronic Repair Soldering Jewelry Crafts
3x dimmable lamp, 500 lumens, 6 levels
Four arms: two 7.5 inch and two 5 inch
7 inch powder-coated steel base
Rubber-sleeved 360-degree clips
Pros
- Four arms in mixed lengths reach around a board
- 500-lumen lamp with 6 brightness levels
- Sleeved clips avoid scratching jewelry and shorting pads
- Heavy base will not tip
Cons
- 3x is modest for the price class
- Lamp needs a wall plug rather than USB
- Large base footprint
Six brightness levels is the part I did not expect to care about and now rely on. Bright enough for general board work, dim enough to stop the lens flare that makes a fine joint hard to read when you are close in.
The mixed arm lengths are a real design decision. The two longer arms reach over a board or a frame, and the two shorter ones hold a wire end close to the work, which is the small-parts job specifically.
Rubber-sleeved clips get a specific mention in reviews because they are safe on jewelry and they stop a clip tooth from bridging two adjacent pads on a fine-pitch IC. That is a small-parts problem solved, not a comfort feature.
Owners also note that the box includes screws, a mini wrench, a screwdriver, and a cloth, so assembly does not become a reason to skip the tool.
What it handles well on small parts
Cable harnesses, robotics wiring, and multi-lead rework, where four sleeved clips and a close light let you work on a whole connection rather than one joint at a time.
Jewelry and beads, since sleeved clips will not scratch a finished surface and the lighting makes fine chain easy to follow.
When to skip it
Skip it if magnification is the point. At 3x you are looking at a comfortable working distance, not resolving a 0402 pad.
Skip it if bench space is tight or you need USB power. The lamp takes a wall plug, and the 7 inch base is a permanent commitment on a crowded surface.

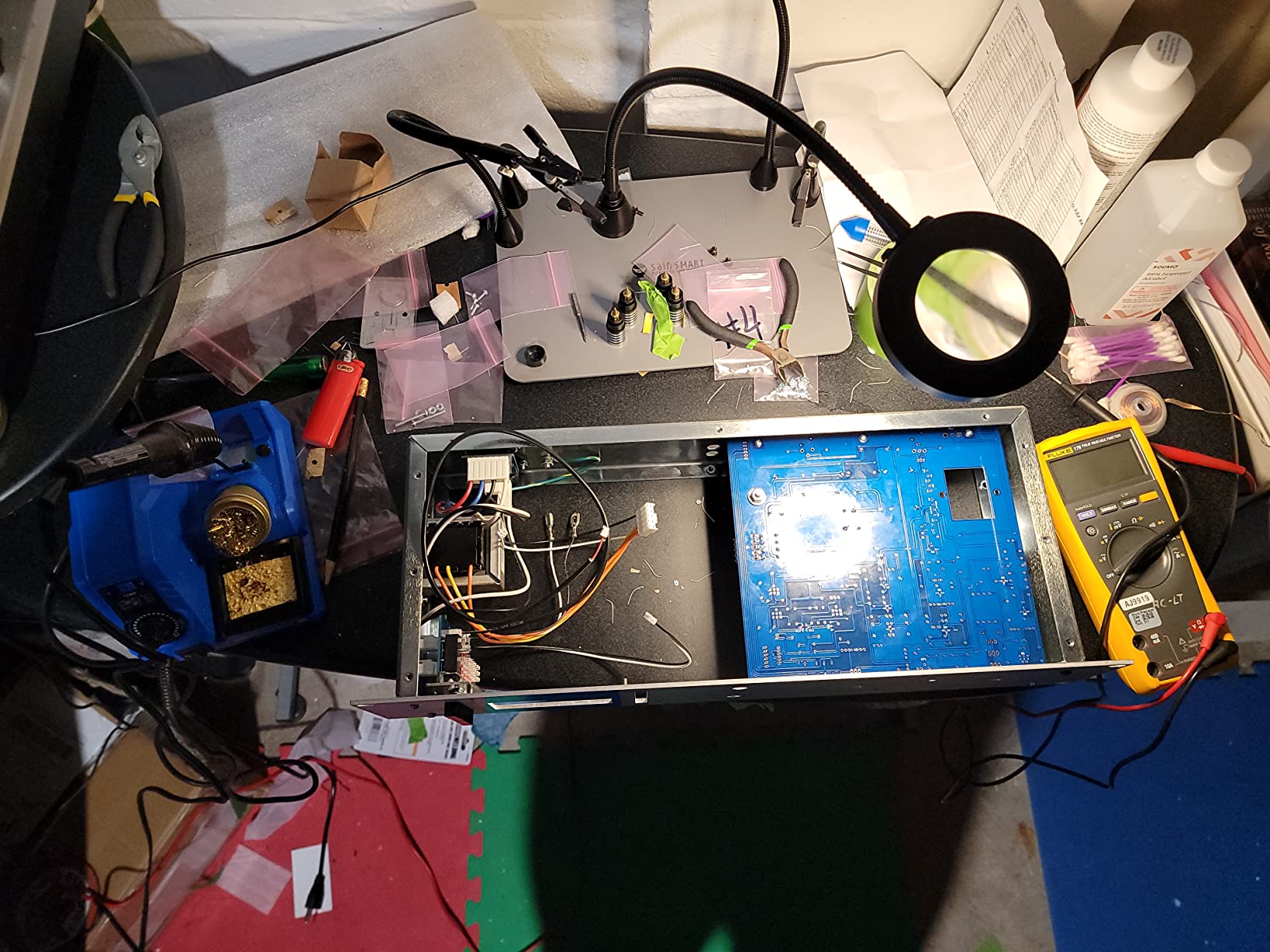

10. SainSmart Magnetic Helping Hands Station – Best for Full PCB Rework
SainSmart Magnetic Helping Hands Soldering Station with an 11.1 x 7.1 Inch Larger Base, 5X LED Magnifying Lamp, 4 PCB Circuit Board Holder & 4 Flexible Magnetic Helping Hands
11.1 x 7.1 inch magnetic steel base, 2.35 kg
Four magnetic gooseneck arms, 14 inch and 7.5 inch
Four magnetic PCB holder pillars
5x LED magnifier with 3 colour temperatures
Pros
- A 2.35 kg steel base resists iron pressure on any surface
- Magnetic layout can be stripped down or fully loaded
- Four PCB pillars support a board properly
- 10 brightness levels and 3 colour temperature settings
- One-year manufacturer warranty
Cons
- Clips are hard to tighten and can twist
- No wide-jaw clamp for large items
- Magnifier arm holds position less firmly than the metal arms
- Base finish scuffs over time
This is the only tool here where the components attach magnetically and that changes how you use it. For one small joint you pull the lamp and one arm into place and leave the rest off the base; for a full board rework you load all four arms and the four pillars and it becomes a complete workstation.
The heavy base is in a different class from the lightweight stands in this group, and on a crowded bench that mass is a feature rather than a nuisance.
The 5x lamp with three colour temperatures and ten brightness levels is a real upgrade over a fixed single lamp. Warm light for inspecting flux residue and a cool setting for reading silkscreen and pad edges are both genuinely useful.
Owners like that the magnetic layout is reconfigured per project rather than fixed, and that the rubber-sleeved clips protect both boards and jewelry. A 5x-rated group with 85 percent five-star feedback reflects how well that combination lands for board-level work.
What it handles well on small parts
Board-level rework with several parts in play at once. Four pillars hold a PCB in position while four arms manage wires, connectors, and a loose component, which is the closest thing here to a second pair of hands.
Work that alternates between inspection and soldering. The colour temperature control means you can check a joint visually without swapping lenses or lights.
When to skip it
Skip it if a single fine wire is all you solder. This is a large, heavy station, and most of what is on the base would sit unused.
Skip it if you work on a wooden bench with no ferrous surface nearby. The base itself is steel, so it anchors fine, but the arms and pillars are meant to relocate, and on a non-magnetic surface the magnetic idea loses its point.
How to Choose a Helping Hand for Soldering Small Parts
1. Start with the base, because base weight settles every other complaint. A weighted cast-iron or steel base resists the sideways push of an iron tip. A light plastic-feeling base creeps, and creeping is the single most repeated complaint in owner reviews. If the tool feels light, bolt it to a board or set it on a steel plate before you judge it.
2. Match arm count to how many things you hold at once. Two arms handle a board plus one wire. Four arms handle a board, two wires, and a loose part, which is the difference between finishing a rework in one pass and re-clamping three times.
3. Check the clips for sleeves before you worry about the lens. Rubber or silicone covers protect fine insulation, keep clip teeth off adjacent pads on fine-pitch packages, and stop scratching jewelry. Bare steel teeth on a delicate lead are the other recurring complaint.
4. Match magnification to the package in front of you. A 2x to 2.5x lens is comfortable for through-hole joints and gives useful context. Around 3x to 4x is where 0603 parts and leaded ICs become straightforward. Above 8x, you are into 0402 work, fine-pitch, and inspection, and you will need a stable stand to keep the working distance fixed.
5. Treat lighting as part of the tool. Small parts work happens close to the board, where your own hand casts a shadow. A lamp on a flexible arm positioned from the opposite side removes more guesswork than any amount of extra magnification.
6. Decide what you will not use it for. For a single loose component, fine tweezers under a lamp beat a clip, because you control the part with a light touch instead of fighting a jaw sized for heavier wire. Tweezers, a PCB vise, and a helping hand solve three different problems, and most benches end up using all three.
7. Buy where you can hold it first. The recurring question on r/soldering is where to find one locally rather than online. Big-box home improvement stores carry magnifier-style helping hands in the tool aisles, electronics retailers carry the multi-arm magnetic models, and a craft or bead store will have the wide-lens and beading stands. Going in and checking the arm tension on a real bench is worth the trip.
Two-Minute Fixes for Clip Damage, Arm Drift and Base Wobble
Stop clips cutting insulation. Slide a short length of heat-shrink tubing over each jaw before clamping a fine lead, or solder solid-core wire into the clip end so the wire is what your insulation meets. Both are long-standing fixes among experienced users, and both take under two minutes.
Stop arms drifting. Position the arm nearest the iron last, then tighten the joint with a wrench rather than fingers. On stations whose joints are the weak point, a thread lock or a small drop of thread-locking fluid on the tension screw stops the creep that shows up after a week.
Stop the base wobbling. Place it on a rubber bench mat rather than bare wood, keep all feet in contact with the surface, and if the tool is light for the job, fix it to a scrap of board or a steel plate. A wooden block used as a hand rest is another low-cost aid, and it helps most with fine wire work where a resting hand shakes.
Consider spring clips for stubborn shapes. Users on woodworking and machining forums consistently report that small woodworking spring clamps hold small parts better than alligator clips, because the jaw pressure is gentler and the shape adapts. It is a cheap second tool rather than a replacement.
Holding Small Parts Without Losing Them
Small-parts failures are almost always placement failures, not heat failures. Five habits fix most of them.
1. Clip the body, not the connection. Hold a component by its ceramic or moulded body so the joint is free to form underneath. A 0603 is roughly a third the width of a typical clip tooth, so a 3.5x to 4x lens is the minimum for seeing what you are holding.
2. Grip insulation where possible. On a wire joint, clamp the insulated section and let the heat reach the conductor. That protects fine strands from both the clip and the iron.
3. Anchor the board, not the component. A PCB pillar or a vise holds the substrate, and clips handle the wires. Reversing that gives you two anchors fighting each other and produces lifted pads.
4. Increase magnification for placement, decrease it for the joint. Zoom in to confirm the part is centred on the pad, then pull back to a working distance where you can see the whole connection and the tip approach.
5. Use flux before you add force. Most parts that slide are parts that are not wetting. A little flux and a clean tip move solder before any amount of clip pressure will, and less pressure means less chance of moving the part you are trying to place.
Frequently Asked Questions
What is the best helping hand for soldering?
For most people working on small parts, the NEIKO 01902 is the best all-round choice because its cast-iron base stays put under iron pressure and its 2x lens covers 0603 and leaded work. If your workload involves several parts at once, a four-arm station such as the KOTTO holds a board and multiple wires at the same time. For 0402 and fine-pitch work, magnification matters more than arms, so a 10x to 12x lens station is the right pick.
What is a soldering helping hand?
A soldering helping hand, also called a third hand, is a bench tool with adjustable arms and alligator clips on a weighted or magnetic base that holds your workpiece steady while you solder. It frees both hands so one holds the iron and one feeds the solder, which produces cleaner joints on small components.
How do I use soldering helping hands?
Set the base on a non-slip surface first, then bend the arms into position from farthest to nearest so the last arm you adjust is the one closest to the iron. Clip the workpiece, add flux, and only then bring the tip in. Keep the iron tip moving rather than resting, and release one clip at a time so you do not shift the workpiece while removing support.
How do I make your own helping hands for soldering?
A popular build uses mini dial indicator arms on a magnetic base with a ring terminal and an alligator clip, one arm per holding point. The advantage over cheap commercial units is range of movement and the option to add thrust bearings so joints stop loosening. This build has a strong following on electronics forums, where owners report it holds tiny parts better than tools they bought.
What magnification do I need for micro soldering?
Around 3x to 4x is the practical range for 0603 parts, leaded ICs, and through-hole joints. For 0402 components and fine-pitch work you need 8x to 10x, and dense packages such as QFN or BGA benefit from 10x or more. Beyond roughly 10x the working distance gets tight, so pair a high-power lens with a heavy, stable base rather than a light frame.
Are magnetic helping hands better than weighted ones?
Neither is better for every bench. Weighted cast-iron and steel bases resist iron pressure on any surface and are the safer choice on a wooden bench, while magnetic layouts let you rearrange arms and pillars per project and can be stripped down to a single arm for small jobs. A magnetic-arm design that has no base of its own needs a ferrous surface and will not work on wood.
Do I need a helping hand to solder?
For through-hole work on a large board, a vise or a clamp is often enough. For small parts, a helping hand is close to essential, because you need one hand for the iron and one for solder while the workpiece must not move when the tip touches it. Holding the part in your fingers works only for the occasional joint and puts you near hot solder and fumes.
Final Verdict: Which Helping Hand Should You Buy?
Buy the NEIKO 01902 if you want one tool that covers most small-parts work: a cast-iron base that stays put, two well-angled clips, and a lens that makes 0603 and leaded joints comfortable. It is the best of the helping hands for soldering small parts for a first serious bench, and it is the only one here with the depth of long-term owner feedback behind it.
Buy the KOTTO 4-arm station if you routinely hold a board plus multiple wires. Buy the Beileshi or LXIANGN if you work at 0402 scale and magnification is the constraint. Buy the Pro’sKit if you already have lighting and want a simple weighted tool with no lens.
Whichever you choose, test it on one joint under load before you trust it, and put heat-shrink on the clip jaws before you clamp a fine lead. That single habit prevents most of the damage small parts suffer.
We keep this list updated for 2026 as new models land, and the current figure for any pick is one button away.
